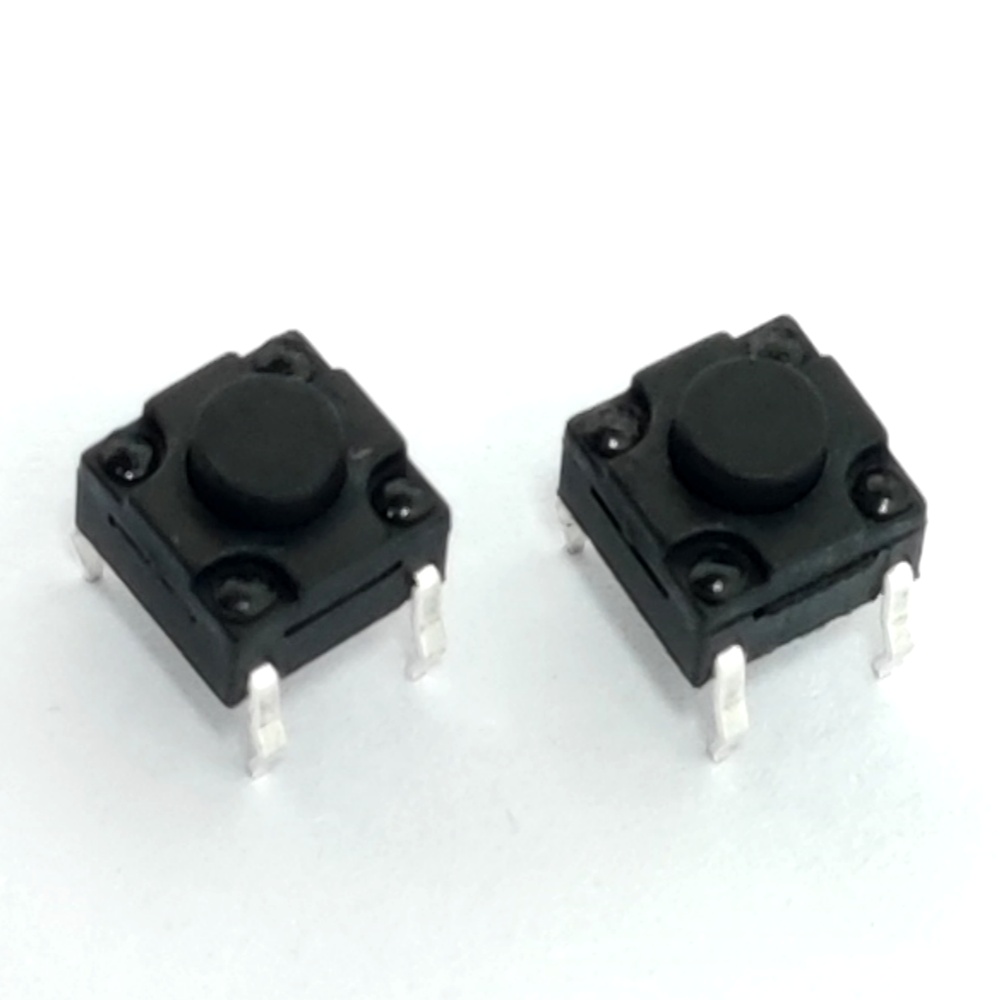

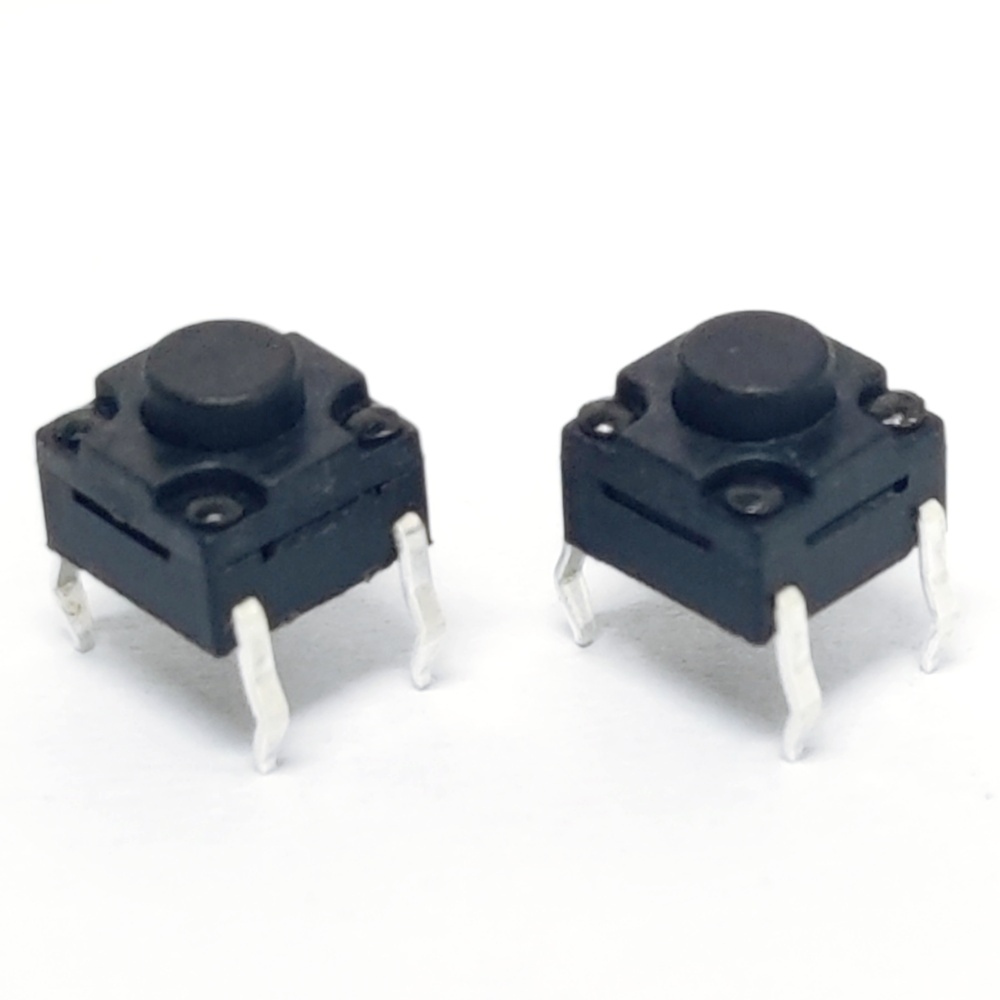

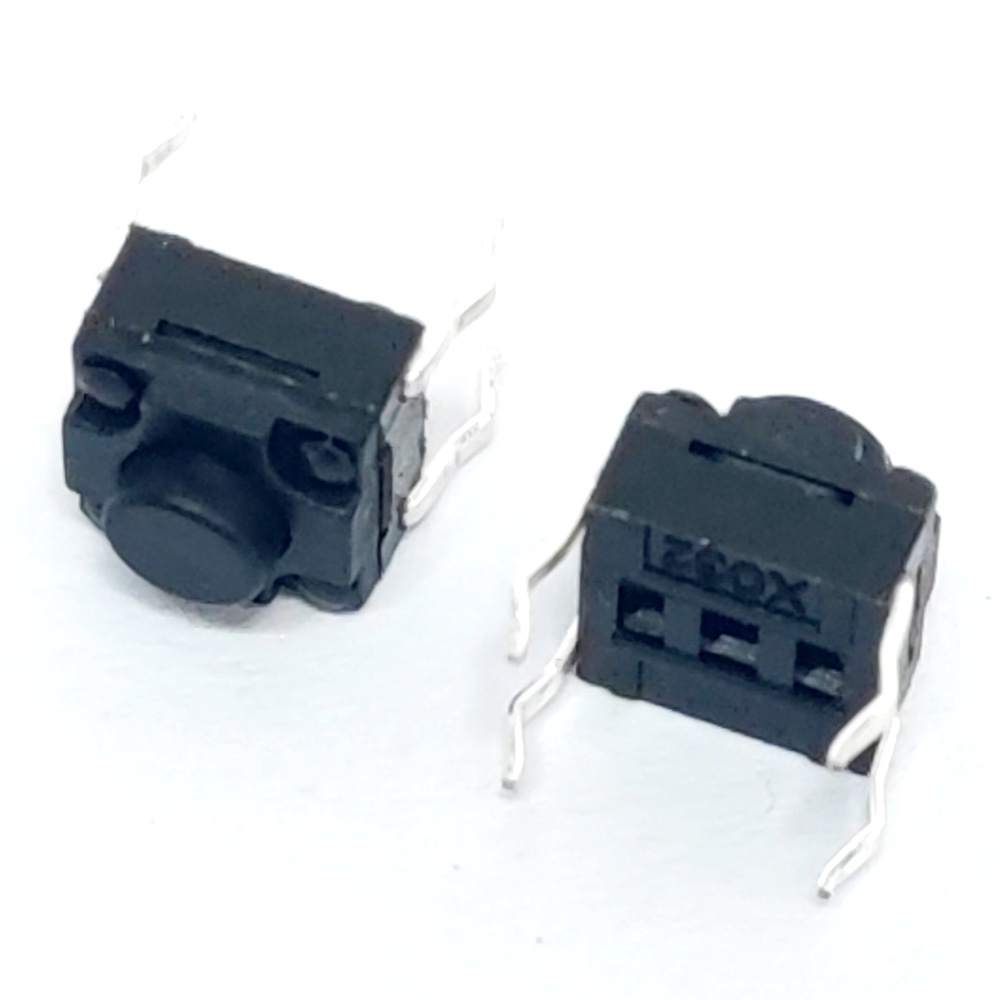

Tact Switch Waterproof Through Hole Touch switch
Part Number: KAN0616-0501B-C15
The KAN0616-0501B-C15 is a 6.0 × 6.0 × 5.0 mm through-hole tact switch with a silicone-sealed IP66 construction. It mounts through-hole on a PCB, delivers crisp tactile feedback at 160 gf, and is rated for 100,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- IP66-rated sealing against dust and powerful water jets
- Silicone waterproof seal, 6.0 × 6.0 mm footprint, 5.0 mm height
- Through-hole (DIP) mounting, SPST-NO momentary action
- 160 ± 50 gf operating force, 0.30 mm travel for a defined tactile click
- 100,000-cycle rated life, –30 °C to +80 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN0616-0501B-C15 |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Through-hole (DIP) |
| IP Rating | IP66 (dust-tight; protected against powerful water jets) |
| Body Size | 6.0 × 6.0 × 5.0 mm |
| Operating Force | 160 ± 50 gf |
| Travel | 0.30 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Stem Strength | 20 N min |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms (ON / OFF) |
| Electrical Life | 100,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | PA66 |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
This sealed through-hole tact switch with IP66 protection suits equipment exposed to dust and water spray: outdoor devices, industrial control panels, automotive controls, and power tools. The silicone seal keeps contaminants away from the contacts in wash-down and wet environments.

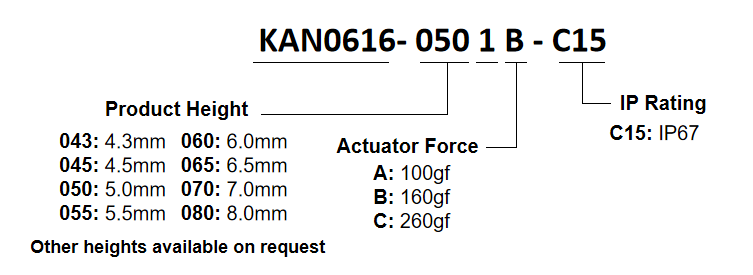

PART NUMBER KEY

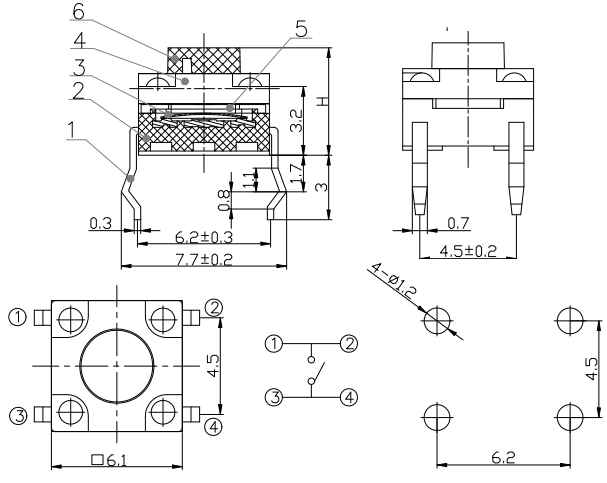

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Silver plating |
2 |
Case |
PA66 |
1 |
Black |
3 |
Contact |
SUS |
1 |
Ag plating |
4 |
Cover |
PA66 |
1 |
Black |
5 |
Waterproof rubber |
Rubber |
1 |
Black |
6 |
Stem |
PA66 |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
IP67 |
| Height (mm) |
5 |
| Length (mm) |
6 |
| Width (mm) |
6 |
