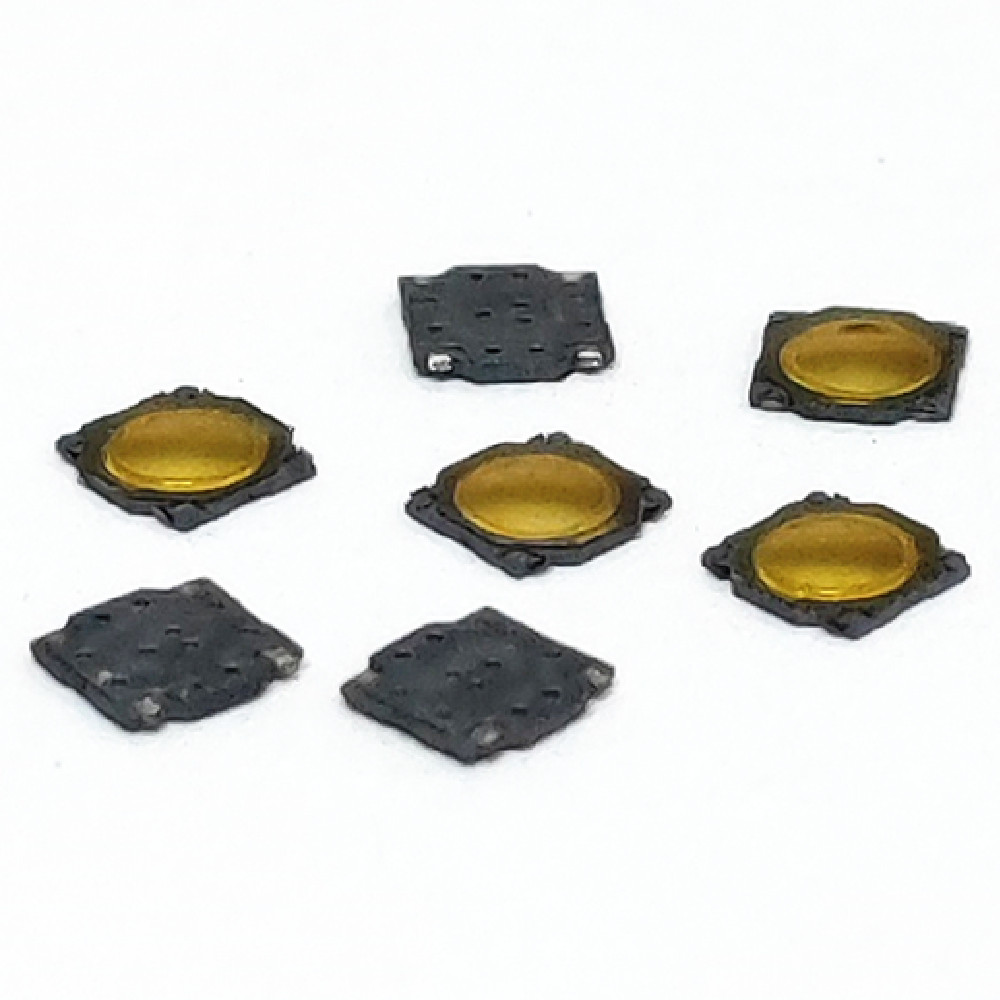

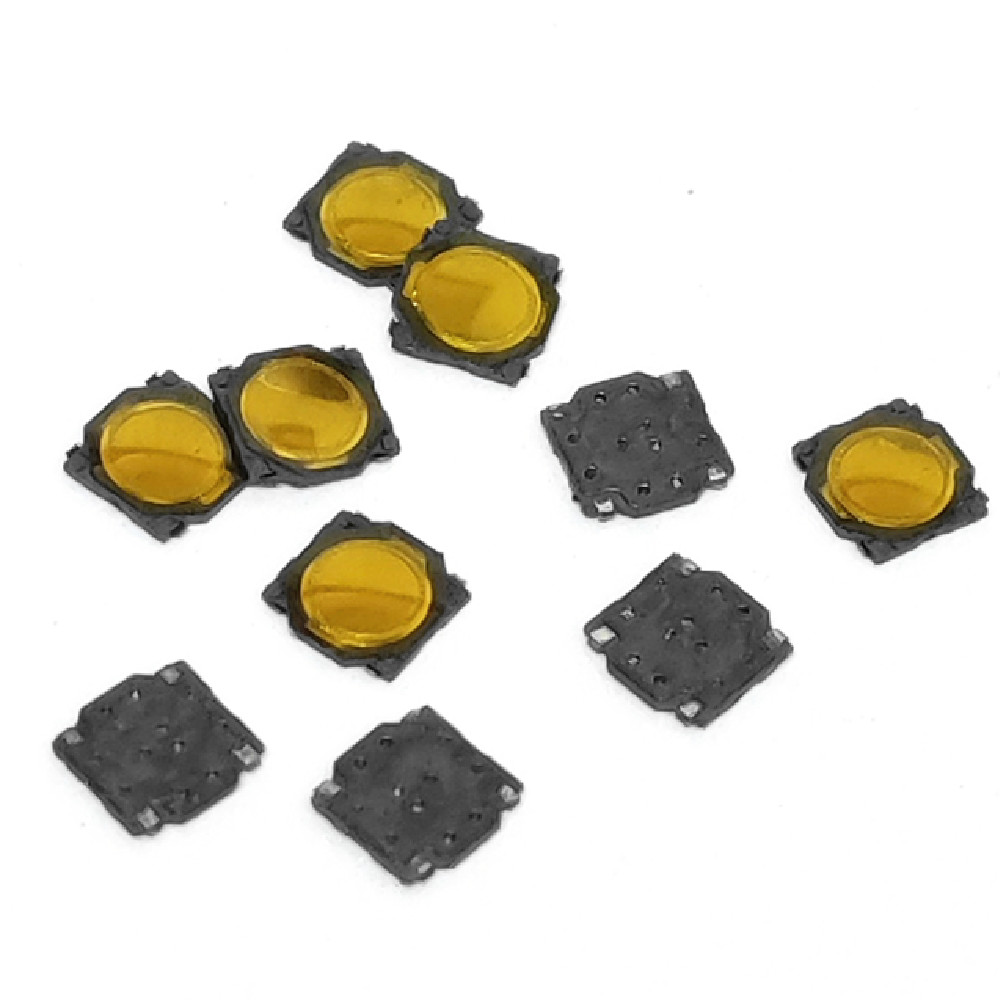

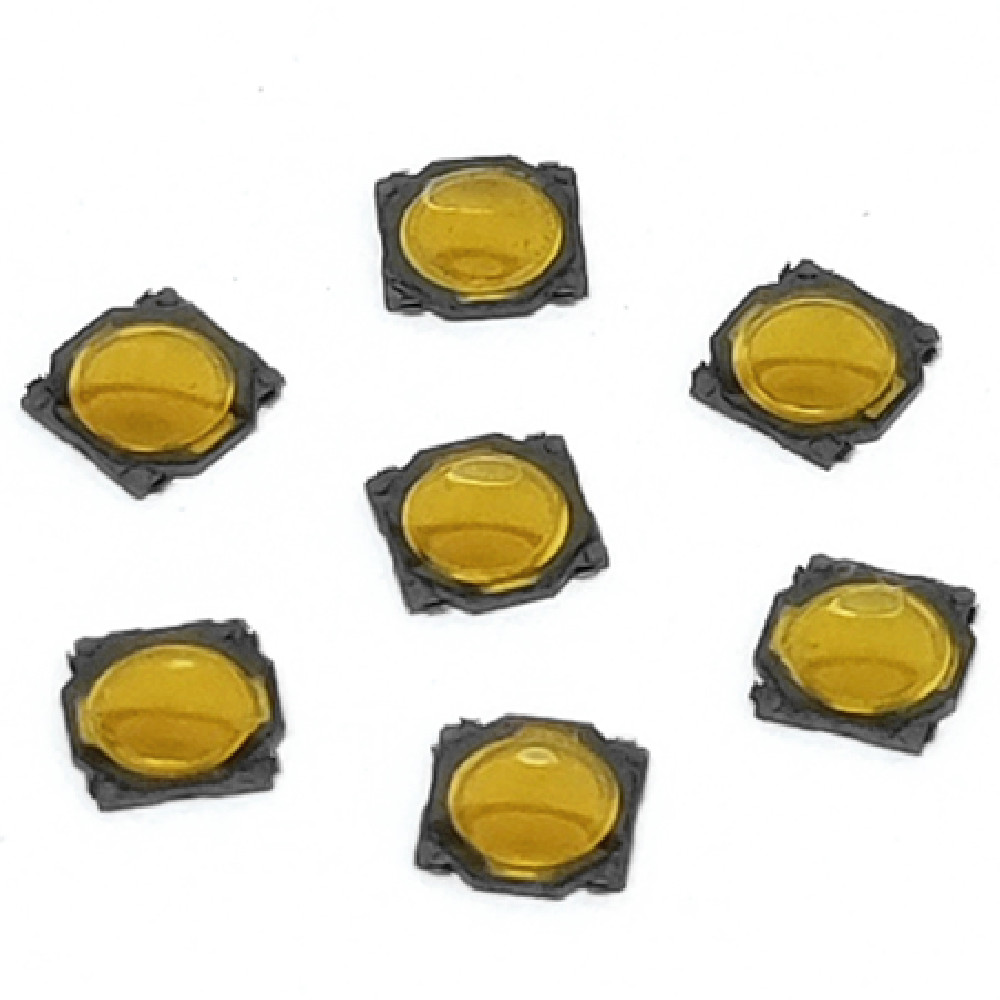

Subminiature Dome 4 pin SMD Thin Film Tact Switch
Part Number: KAN3742-035B0201
The KAN3742-035B0201 is a 3.7 × 3.7 × 0.35 mm surface-mount dome tact switch with a metal-dome contact under a polyimide film. It surface-mounts to a PCB, gives a crisp snap at 160 gf, and is rated for 200,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Metal-dome contact under a polyimide film for a crisp snap
- Microminiature 3.7 × 3.7 mm body, 0.35 mm ultra-low profile
- 4-pin surface-mount termination
- 160 ± 50 gf snap with a short 0.15 mm travel
- 200,000-cycle rated life, –30 °C to +80 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN3742-035B0201 |
|---|---|
| Switch Type | Tactile switch (metal dome, momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD), 4-pin |
| Body Size | 3.7 × 3.7 × 0.35 mm |
| Operating Force | 160 ± 50 gf |
| Travel | 0.15 ± 0.1 mm |
| Tactile Ratio | 35% – 75% |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Stem Strength | 20 N min |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms (ON / OFF) |
| Electrical Life | 200,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | LCP |
| Contact Material | SUS, silver-coated |
| Terminal Material | Phosphor bronze, silver-plated |
| Film | Polyimide |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel |
Typical Applications
This microminiature metal-dome tact switch gives a crisp snap in an ultra-thin body, suiting slim devices: consumer electronics, mobile devices, wearables, and remote controls. The 0.35 mm profile and dome-under-film build deliver defined feedback where board-to-surface height is tight.

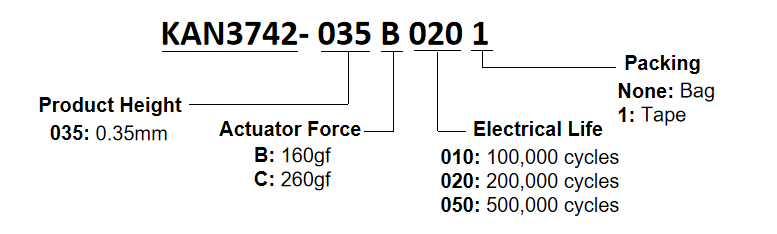

PART NUMBER KEY

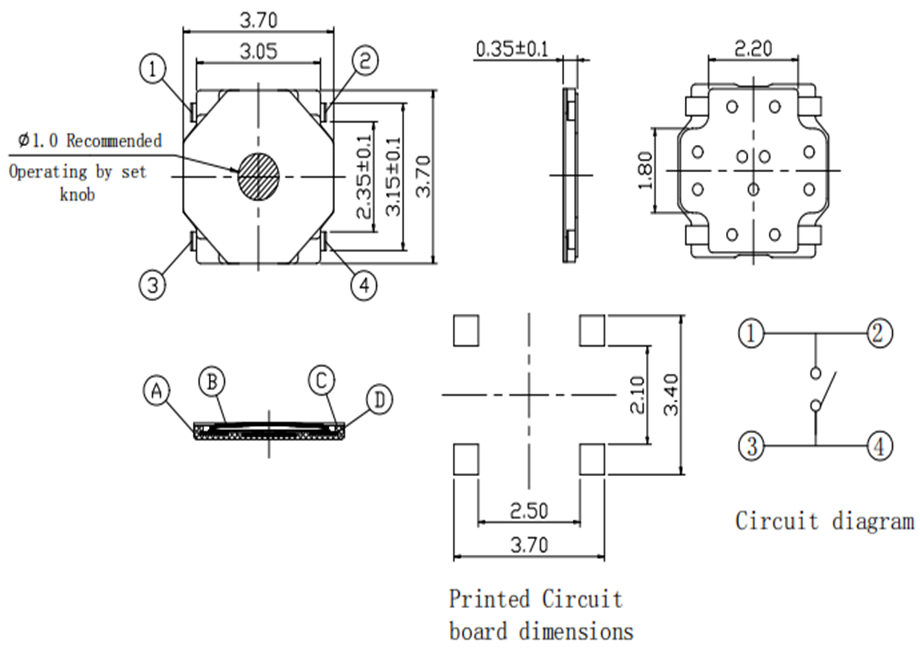

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.1mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
A |
Case |
LCP |
1 |
Black |
B |
Contact |
SUS |
1 |
Single-sided silver coating |
C |
Film |
PI |
1 |
Yellow |
D |
Terminal |
Phosphor bronze |
1 |
Ag plating |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
0.35 |
| Length (mm) |
3.7 |
| Width (mm) |
3.7 |
