SPDT Push Button Micro Switch no nc
Part Number: G20-16EM-150-22

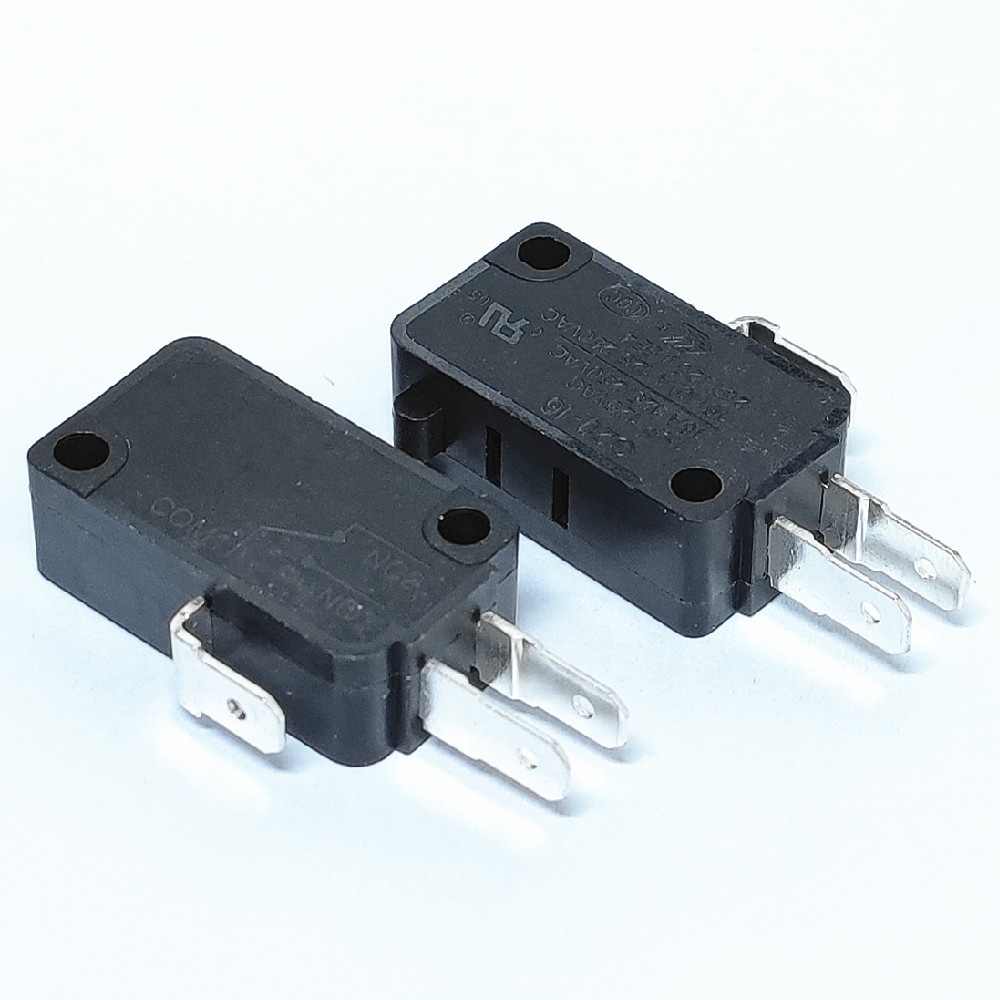

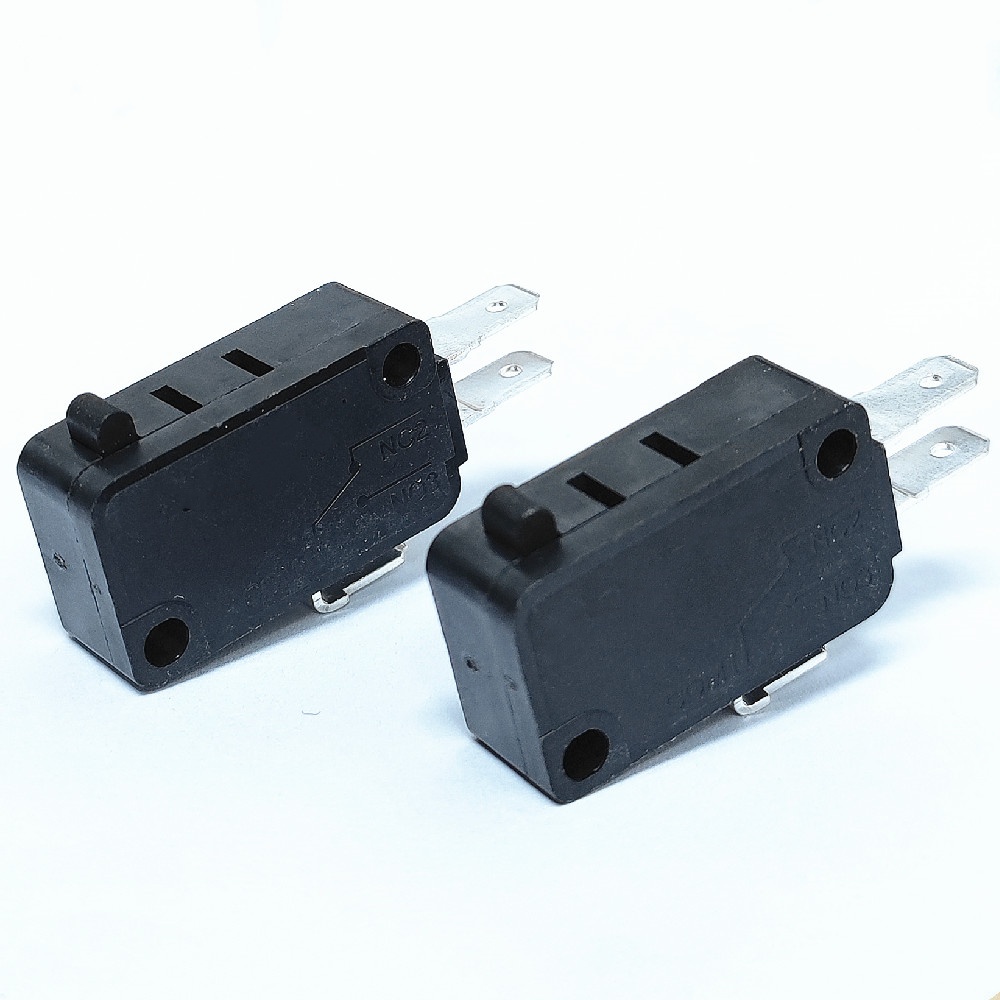

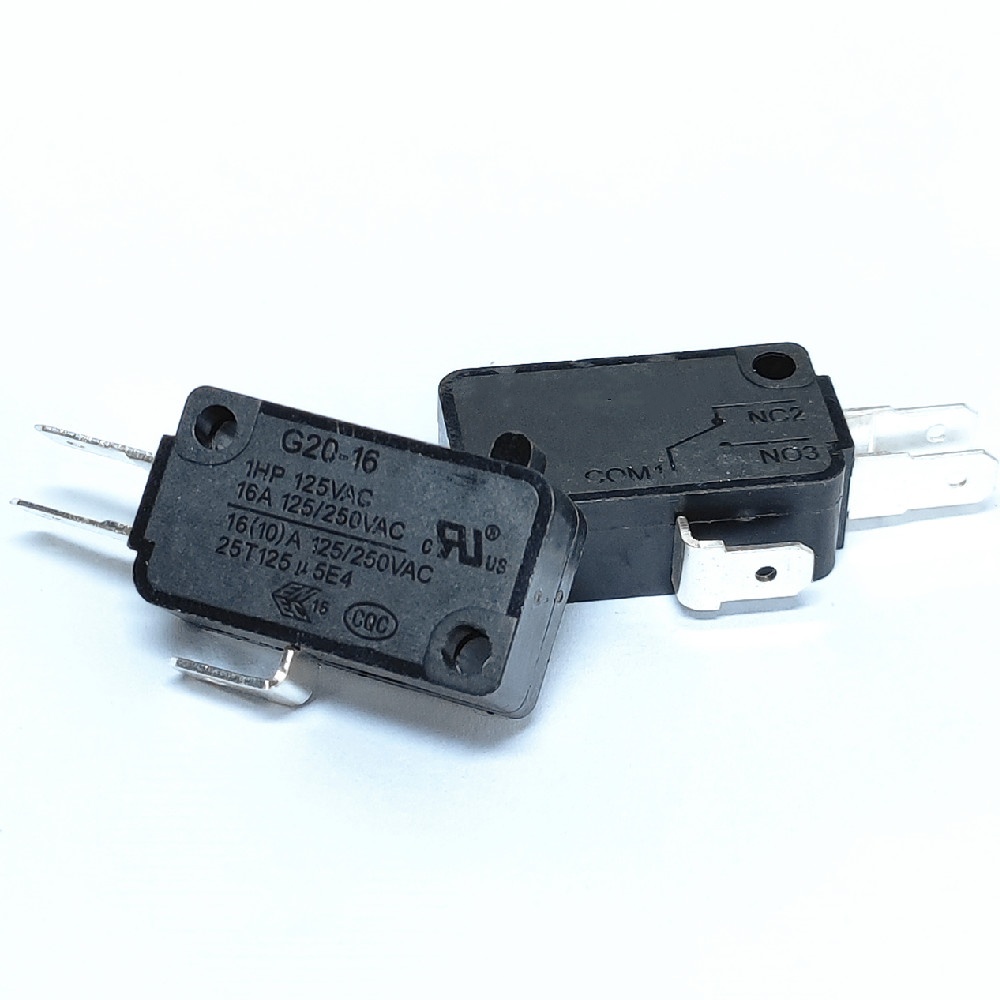

The G20-16EM-150-22 is a 16 A SPDT snap-action basic switch with a round pin-plunger actuator and three chassis-mount terminals. It carries a 16 A resistive / 10 A inductive rating at 125 / 250 V AC and a 1 HP motor rating, snaps at a 150 gf operating force, and is UL Recognized and CQC certified. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- 16 A resistive / 10 A inductive at 125 / 250 V AC, also rated 1 HP for motor loads
- SPDT (COM / NO / NC) snap-action contacts, silver alloy, ≤200 mΩ contact resistance
- Round pin-plunger actuator with a 150 ± 50 gf operating force
- Three chassis-mount terminals wired as NO and NC changeover contacts
- UL Recognized component (cURus) and CQC certified, 1500 V dielectric strength
Applications
SPECIFICATIONS
| Part Number | G20-16EM-150-22 |
|---|---|
| Switch Type | Micro switch (snap-action basic switch) |
| Contact Form | SPDT (1 pole, COM / NO / NC) |
| Actuator | Round pin plunger (pushbutton) |
| Mounting / Terminal | Chassis mount (2 mounting holes); 3 terminals |
| Body Size | 29 × 10.1 × 15.9 mm |
| Rated Current / Voltage | 16 A resistive, 10 A inductive at 125 / 250 V AC; 1 HP |
| Operating Force (OF) | 150 ± 50 gf |
| Return Force (RF) | 50 gf max |
| Operating Position (OP) | 17.5 ± 0.5 mm |
| Pretravel (PT) | 2.0 mm max |
| Contact Resistance | ≤200 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 1500 VAC, 1 min |
| Mechanical Life | 100,000 cycles |
| Electrical Life | 10,000 cycles at 16 A 250 V AC |
| Operating Temperature | –25 °C to +85 °C |
| Approvals | UL Recognized component (cURus); CQC certified |
| Housing Material | PBT (30% glass-filled), black |
| Contact Material | Silver alloy |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
This SPDT plunger switch handles direct-push changeover switching in higher-load equipment: industrial control detection, appliance mechanisms, automotive modules, and automation sequencing. The three terminals wire as a changeover contact, and the pin plunger gives a defined trip point for straight-line actuation.

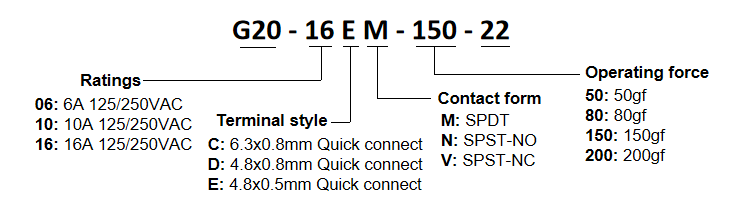

PART NUMBER KEY

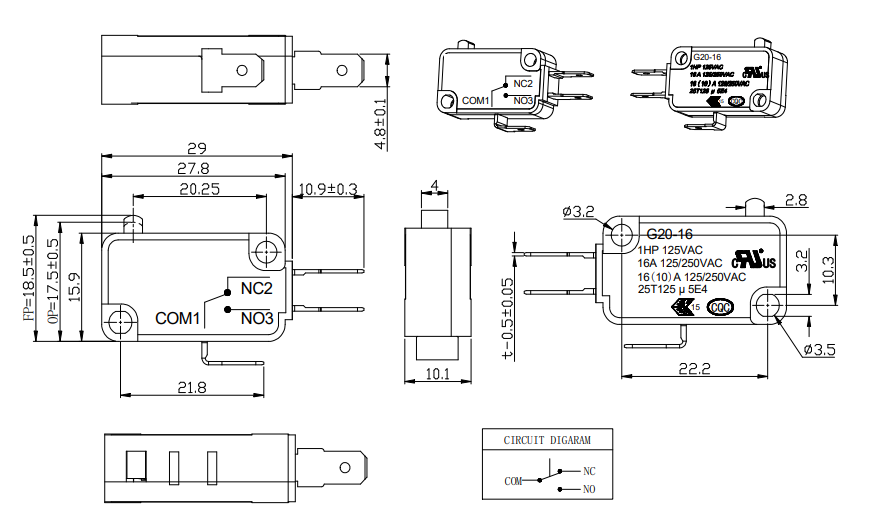

MECHANICAL DRAWING
Units: mm
Unless otherwise specified
|

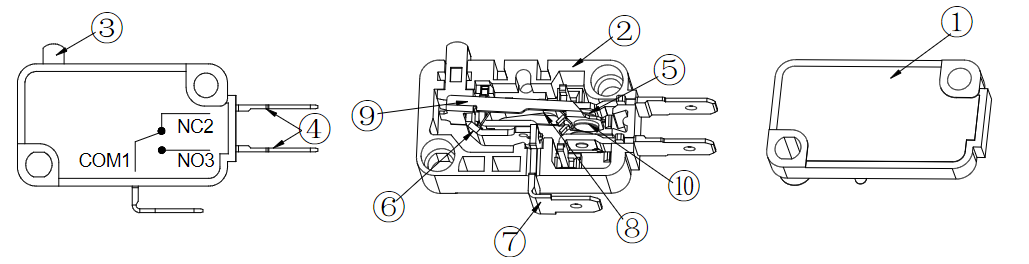

NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Cover |
PBT 30%GF |
1 |
Black |
2 |
Base |
PBT 30%GF |
1 |
Black |
3 |
Button |
Bakelite |
1 |
Black |
4 |
Terminal |
Brass |
2 |
D.Ag |
5 |
Contact |
Silver alloy |
2 |
|
6 |
Driver Plate |
Brass |
1 |
D.Ag |
7 |
Terminal |
Brass |
1 |
D.Ag |
8 |
Contact |
Beryllium bronze |
1 |
|
9 |
Blade |
Brass |
1 |
D.Ag |
10 |
Blade |
Silver alloy |
1 |
All Switches Categories
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
