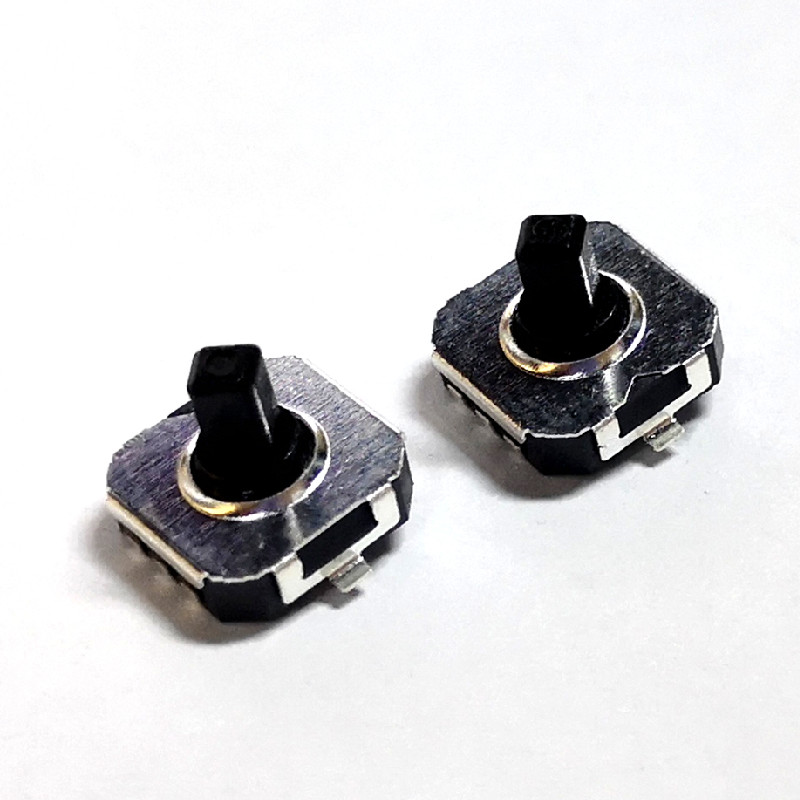

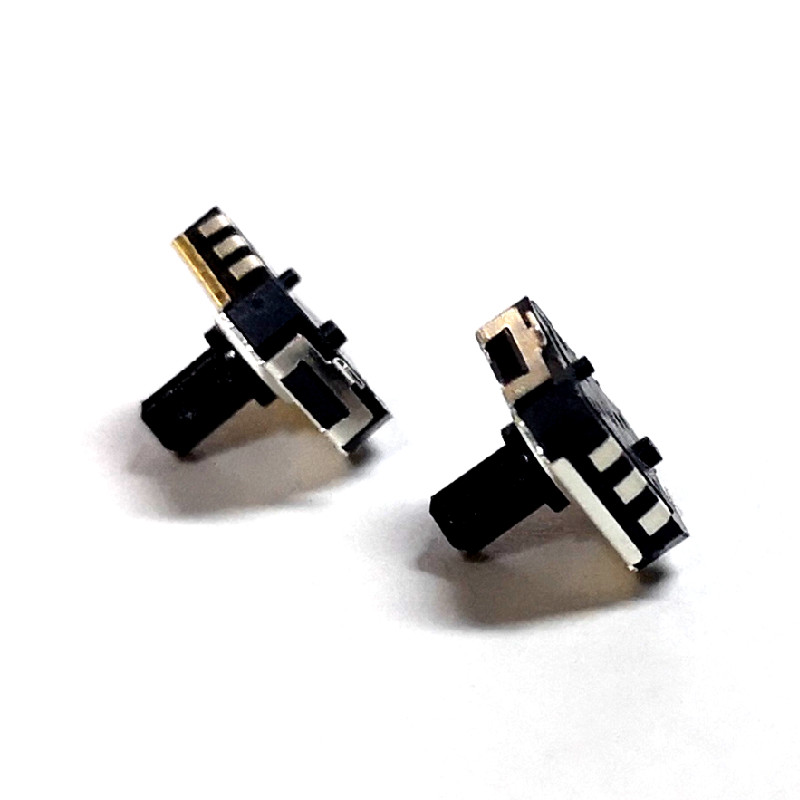

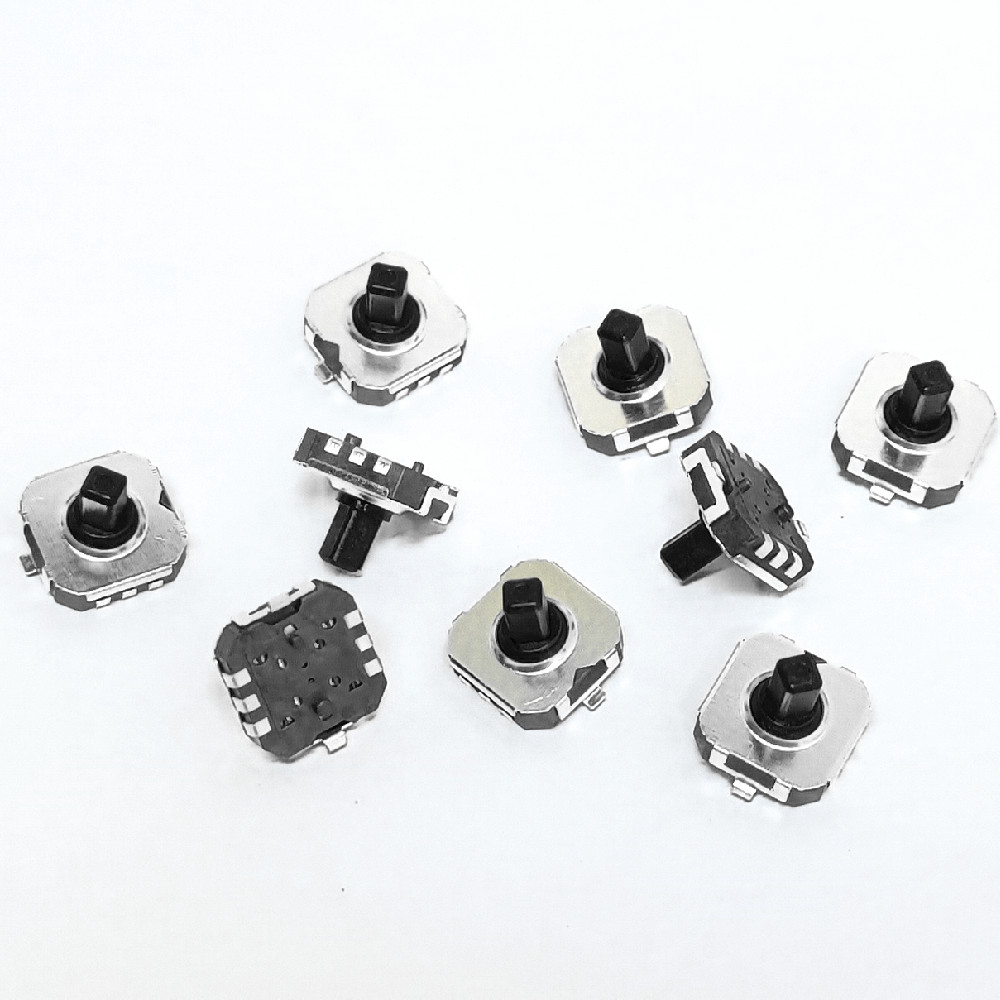

SMD Navigation 5 Direction Way Tact Switch
Part Number: KAN0741A-0601C1-95
The KAN0741A-0601C1-95 is a 7.4 × 7.4 × 6 mm surface-mount 5-way navigation switch with a center push plus four directional contacts. It surface-mounts to a PCB and gives distinct tactile feedback in every direction, rated for 50,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- 5-way action: center push plus four directional inputs
- Separate feel per axis, center 250 gf and four-way 160 gf
- Compact 7.4 × 7.4 mm footprint for D-pad and menu control
- Surface-mount with a PA6T navigation button and PPA stem
- –30 °C to +80 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN0741A-0601C1-95 |
|---|---|
| Switch Type | 5-way navigation tact switch (momentary) |
| Circuit | 5-way: center push + 4 directions, each SPST-NO |
| Mounting Style | Surface-mount (SMD) |
| Body Size | 7.4 × 7.4 × 6.0 mm |
| Operating Force | Center 250 ± 70 gf; 4-way 160 ± 50 gf |
| Travel | Center 0.15 ± 0.1 mm; 4-way 0.20 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms |
| Electrical Life | 50,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | LCP |
| Contact Material | SUS, silver-plated |
| Terminal Material | Phosphor copper, silver-plated |
| Cover | SUS, silver-plated |
| Button | PA6T |
| Stem | PPA |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel |
Typical Applications
This 5-way navigation switch drives D-pad and menu control in compact interfaces: consumer electronics, remote controls, audio equipment, and automotive controls. The center push and four directional inputs give a full navigation cluster in a single 7.4 mm footprint.

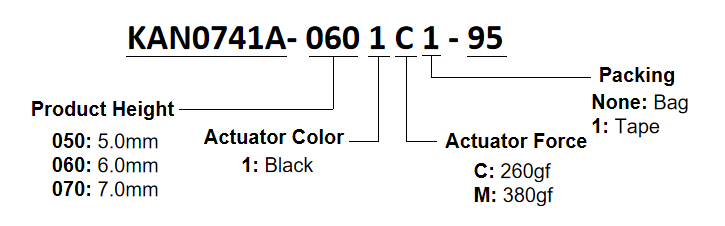

PART NUMBER KEY

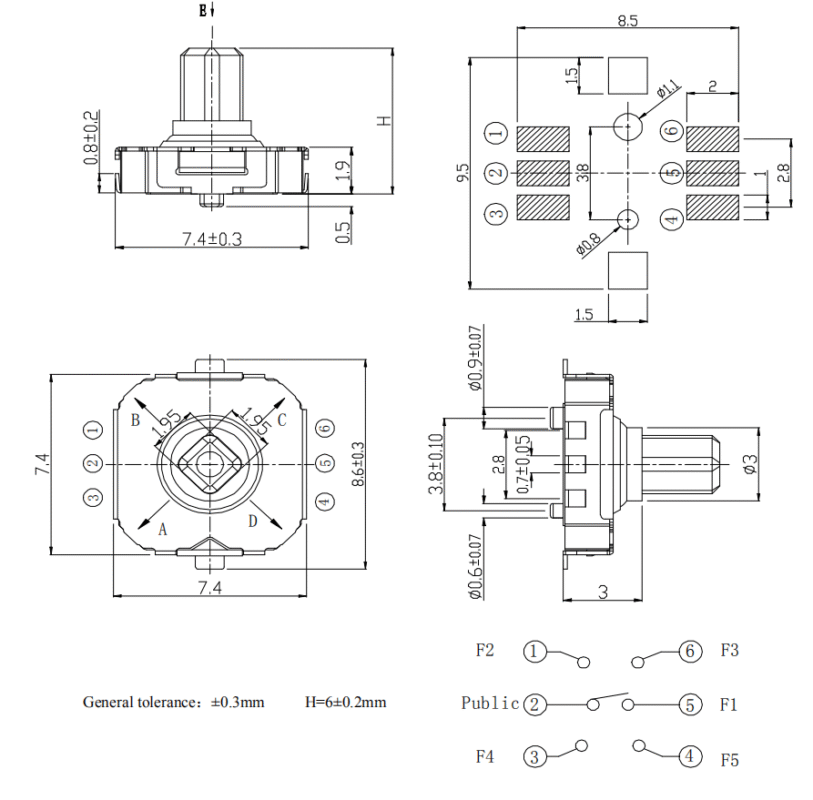

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Case |
LCP |
1 |
Black |
2 |
Terminal |
Phosphorus copper |
1 |
Ag plating |
3 |
Contact |
SUS |
1 |
Ag plating |
4 |
PI |
Teflon |
1 |
Gray |
5 |
Button |
PA6T |
1 |
Black |
6 |
Stem |
PPA |
1 |
Black |
7 |
Cover |
SUS |
1 |
Ag plating |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
6 |
| Length (mm) |
7.4 |
| Width (mm) |
7.4 |
