SMD Edge Mount Right Angle Tactile Switch
Part Number: KAN4548-0353B0101

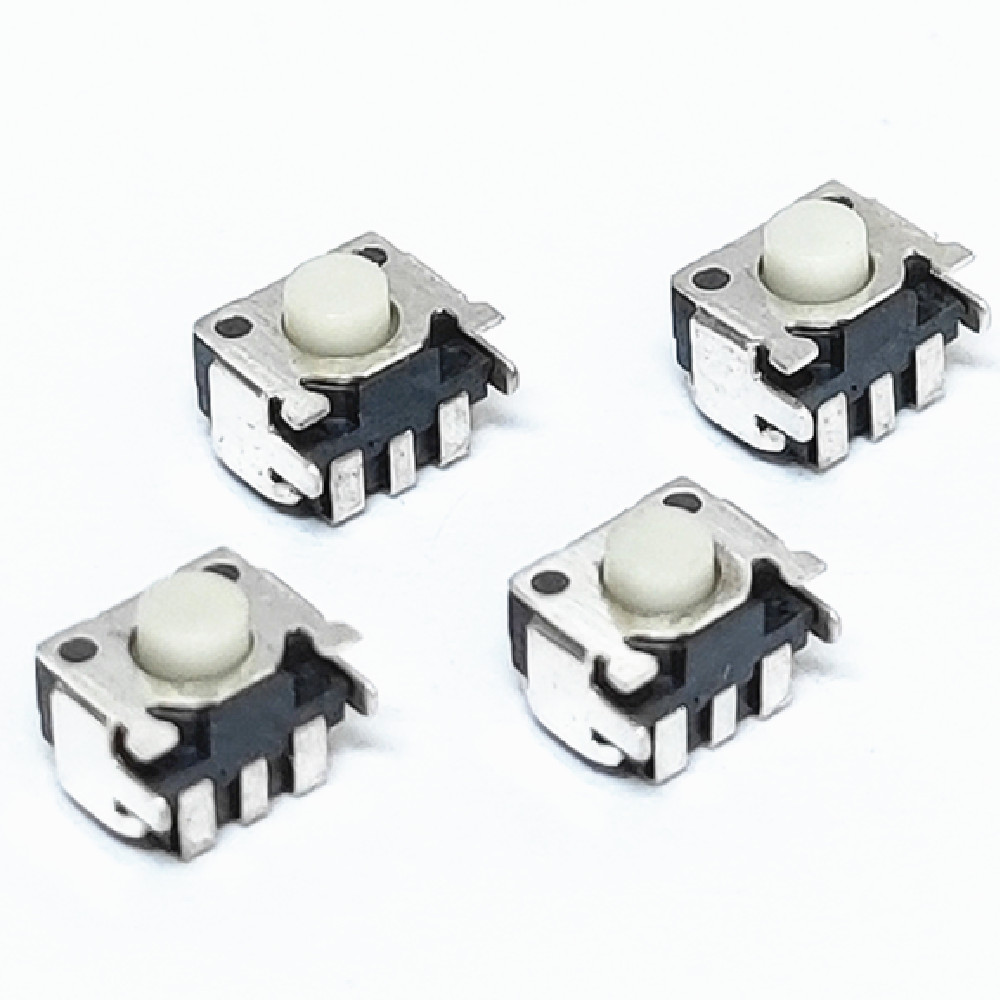

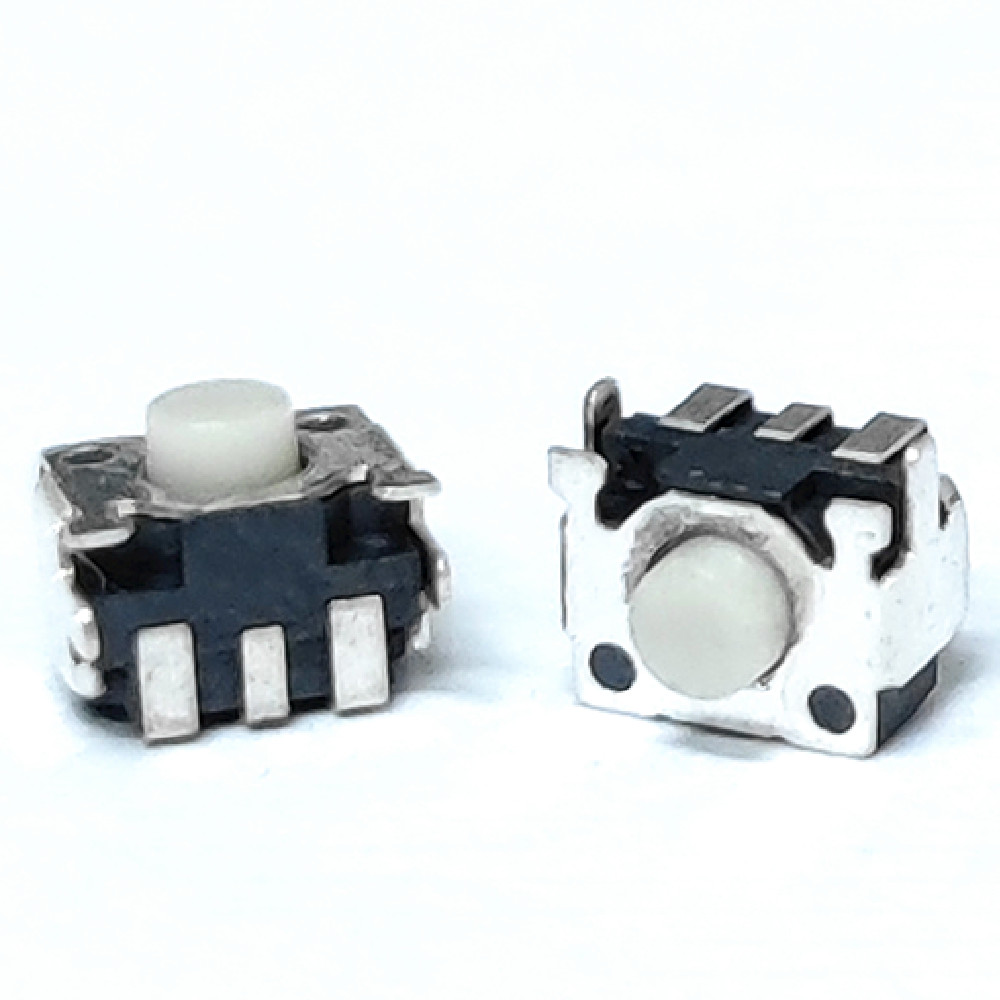

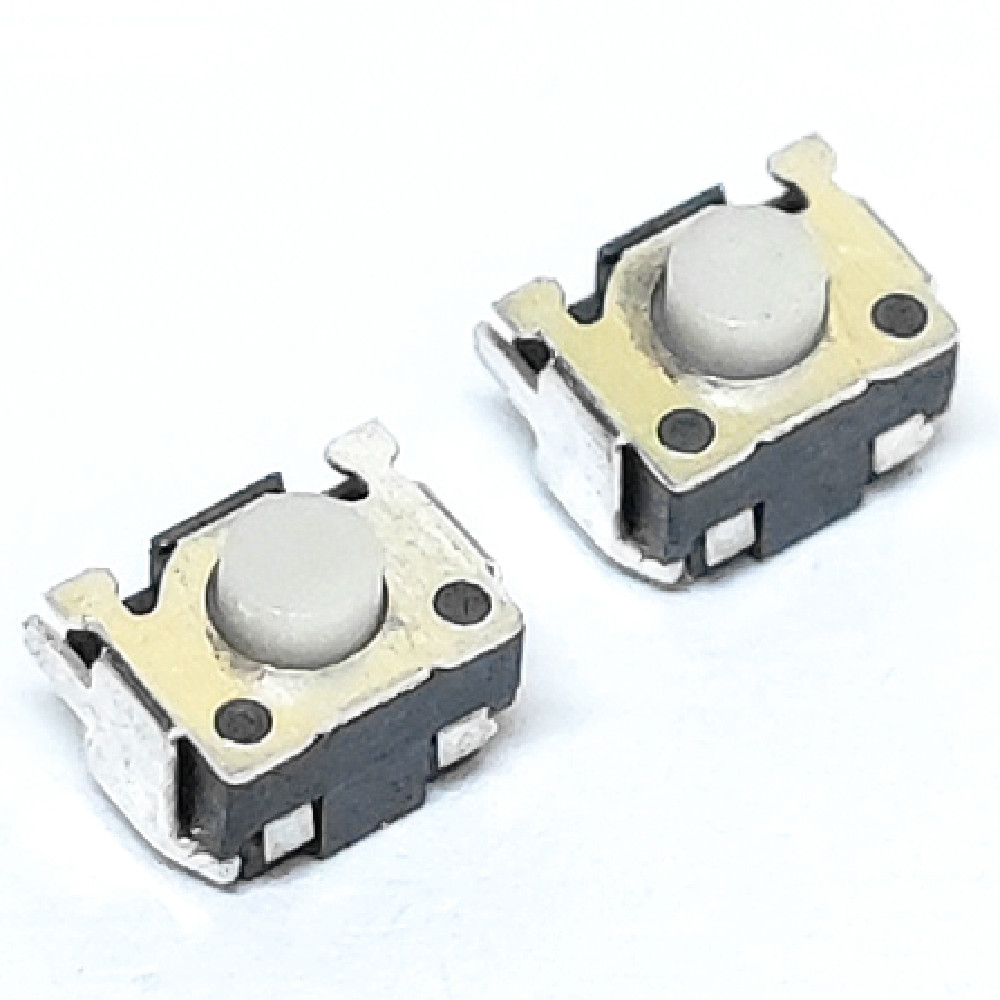

The KAN4548-0353B0101 is a 4.3 × 3.4 × 3.5 mm surface-mount right-angle tact switch actuated from the side. It surface-mounts to a PCB, gives a light press at 160 gf, and is rated for 100,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Right-angle side actuation for edge-mounted buttons
- Compact 4.3 × 3.4 mm footprint, 3.5 mm height
- Light 160 ± 50 gf press with a short 0.15 mm travel
- PA6T housing with a PPA stem for a durable build
- –30 °C to +80 °C operating range, 100,000-cycle life
Applications
SPECIFICATIONS
| Part Number | KAN4548-0353B0101 |
|---|---|
| Switch Type | Tactile switch (momentary, right-angle) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD), right-angle (side-actuated) |
| Body Size | 4.3 × 3.4 × 3.5 mm |
| Operating Force | 160 ± 50 gf |
| Travel | 0.15 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms |
| Electrical Life | 100,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | PA6T |
| Contact Material | SUS, silver-plated |
| Terminal Material | Phosphor copper, silver-plated |
| Cover | Phosphor copper, silver-plated |
| Stem | PPA |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel |
Typical Applications
The right-angle side actuation suits edge-mounted buttons in slim devices: consumer electronics, mobile devices, wearables, and remote controls. The switch fires from the side of the board, fitting power and volume keys along a device edge.

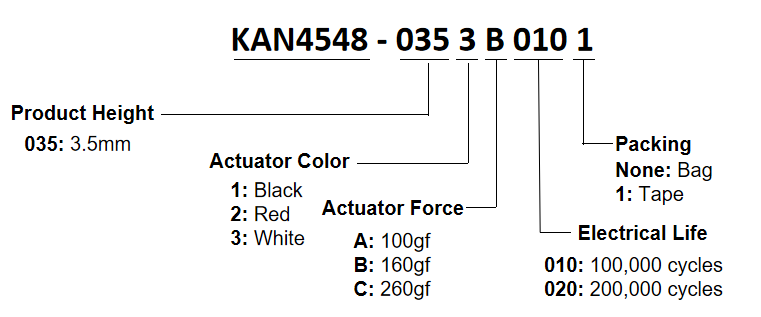

PART NUMBER KEY

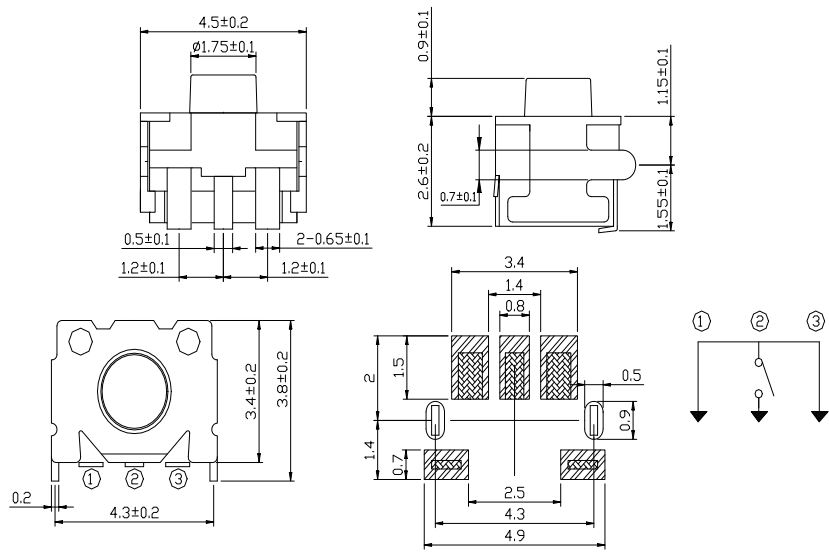

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Teminal |
Phosphor copper |
1 |
Sliver plating |
2 |
Case |
PA6T |
1 |
Black |
3 |
Contact |
SUS |
1 |
Ag plating |
4 |
Stem |
PPA |
1 |
White |
5 |
Cover |
Phosphor copper |
1 |
Ag plating |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
3.5 |
| Length (mm) |
4.3 |
| Width (mm) |
3.4 |
