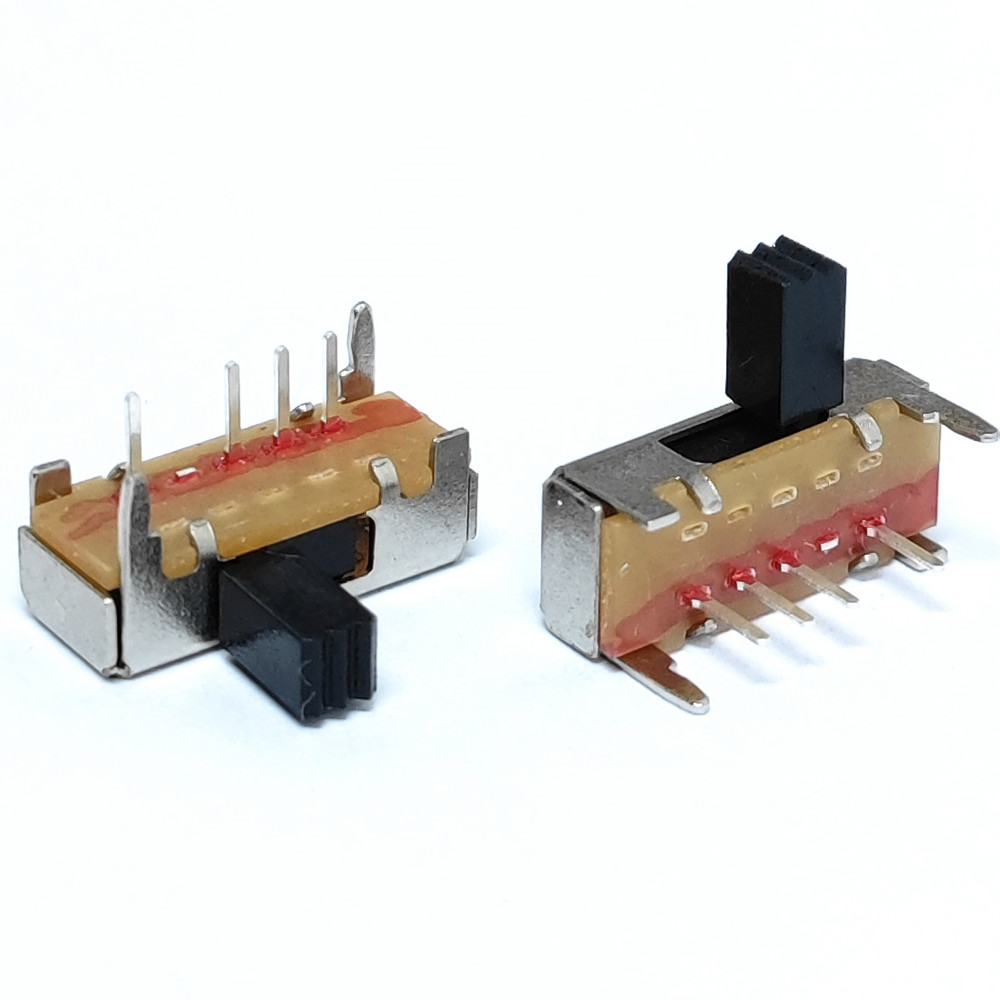

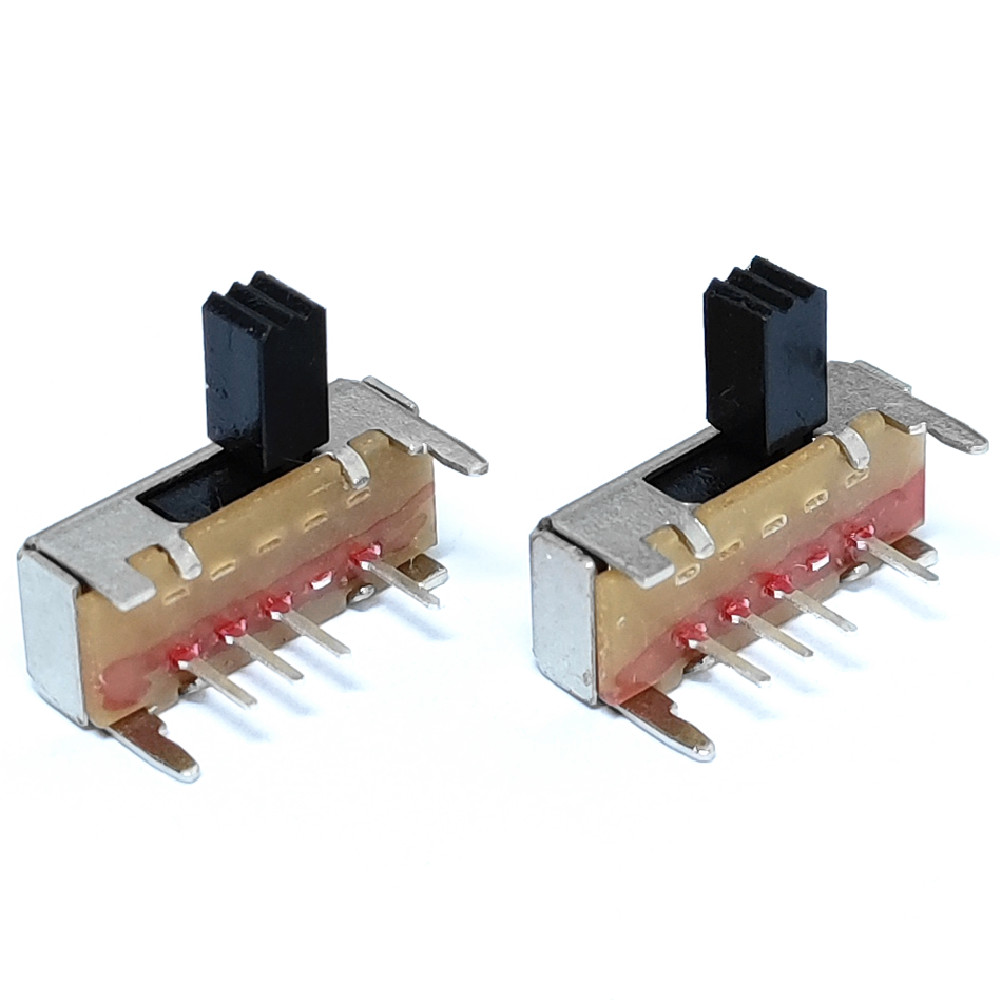

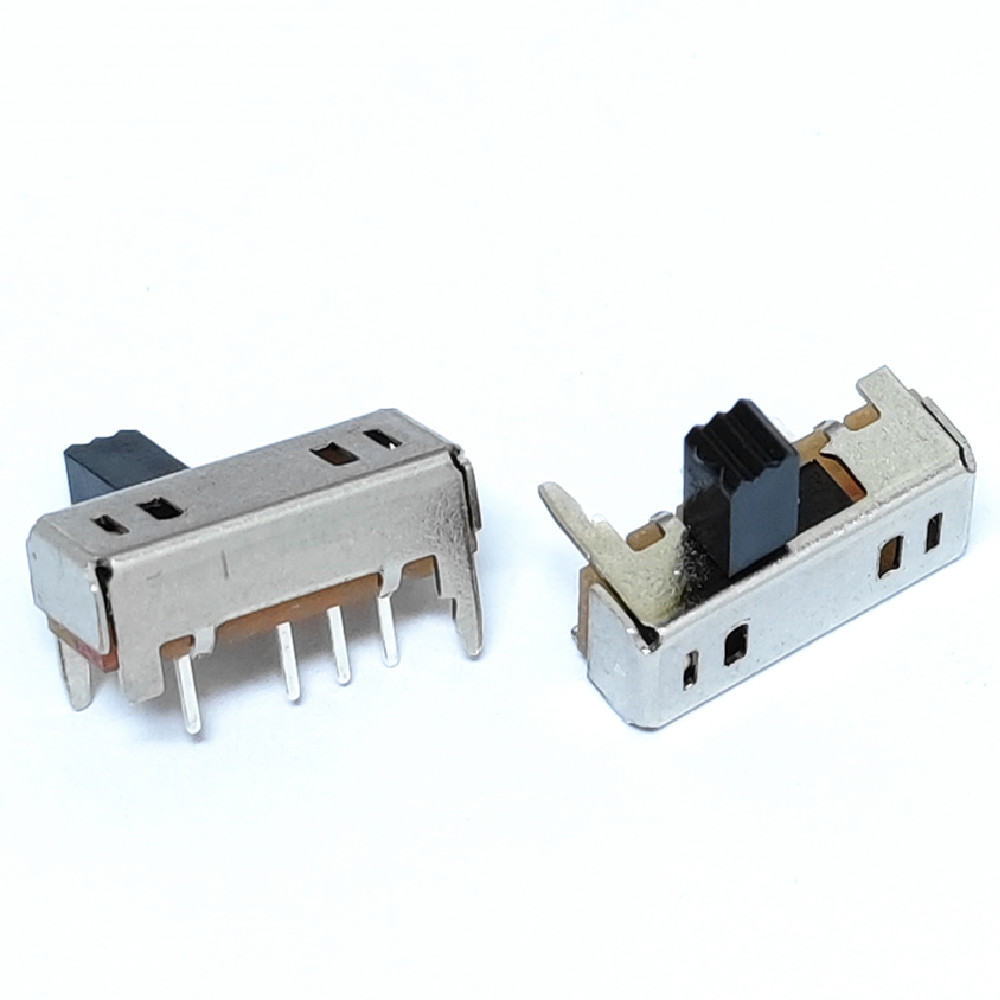

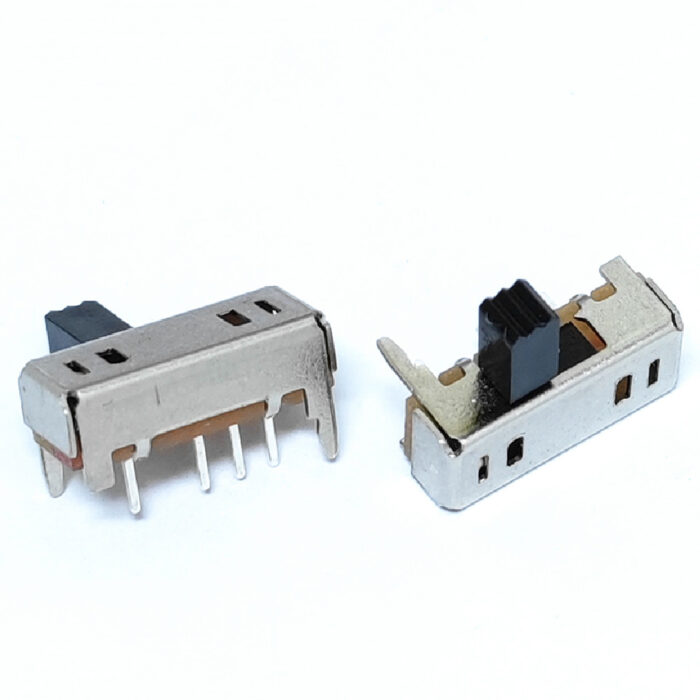

Single Pole Double Throw Slide Switch 3 Position
Part Number: SK13D06-EG6
The SK13D06-EG6 is a single-pole 3-position (1P3T) slide switch with through-hole PCB terminals, rated 50 V DC / 0.3 A. It offers three-position single-pole switching, a right-angle slide, and 10,000-cycle operation life. ISO 9001 and ISO 14001 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Single-pole 3-position (1P3T) switching, rated 50 V DC / 0.3 A
- Four through-hole PCB terminals (1 common, 3 throws)
- Right-angle slide with a firm 300 ± 100 gf force
- 2.0 ± 0.3 mm travel, 250 V AC dielectric strength
- 10,000-cycle life, silver-plated contacts, –20 °C to +70 °C range
Applications
SPECIFICATIONS
| Part Number | SK13D06-EG6 |
|---|---|
| Switch Type | Slide switch (mechanical) |
| Contact Form | SP3T (1P3T, 1 pole 3 throw) |
| Positions | 3-position |
| Mounting / Terminal | Through-hole PCB, right-angle side slide, 4 terminals |
| Body Size | 15.1 × 5.5 × 6.2 mm |
| Rated Current / Voltage | 50 V DC, 0.3 A |
| Operating Force | 300 ± 100 gf (side push) |
| Travel | 2.0 ± 0.3 mm |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 250 VAC, 1 min |
| Operation Life | 10,000 cycles |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +90 °C |
| Contact Material | Phosphor bronze, silver-plated |
| Terminal Material | Brass, silver-plated |
| Housing Material | Steel frame (nickel-plated), POM knob, phenolic base |
| RoHS | Compliant |
| Compliance | ISO 9001 & ISO 14001 certified facility |
| Packaging | Bag |
Typical Applications
This single-pole 3-position slide switch handles three-way mode selection on PCBs: audio equipment, test instruments, consumer electronics, and control panels. Four terminals wire one pole across three positions.

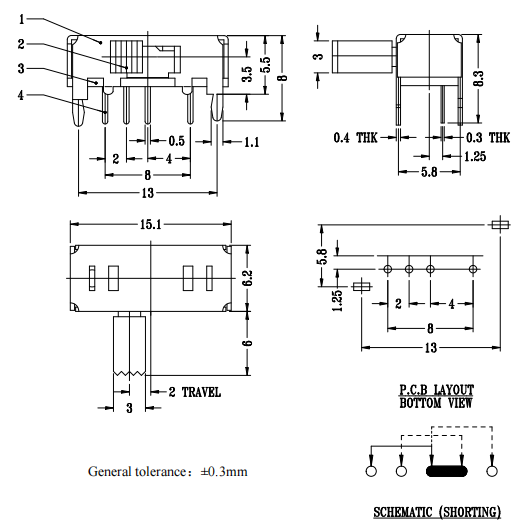

MECHANICAL DRAWING
Units: mm
General tolerance: ±0.3mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Frame |
Steel strip |
1 |
Ni plating |
2 |
Knob |
POM |
1 |
Black |
3 |
Base |
Phenolic resin |
1 |
Natural |
4 |
Terminal |
Brass strip |
4 |
Ag plating |
5 |
Contact clip |
PBS strip |
1 |
Ag plating |
6 |
Spring plate |
PBS strip |
1 |
Natural |
