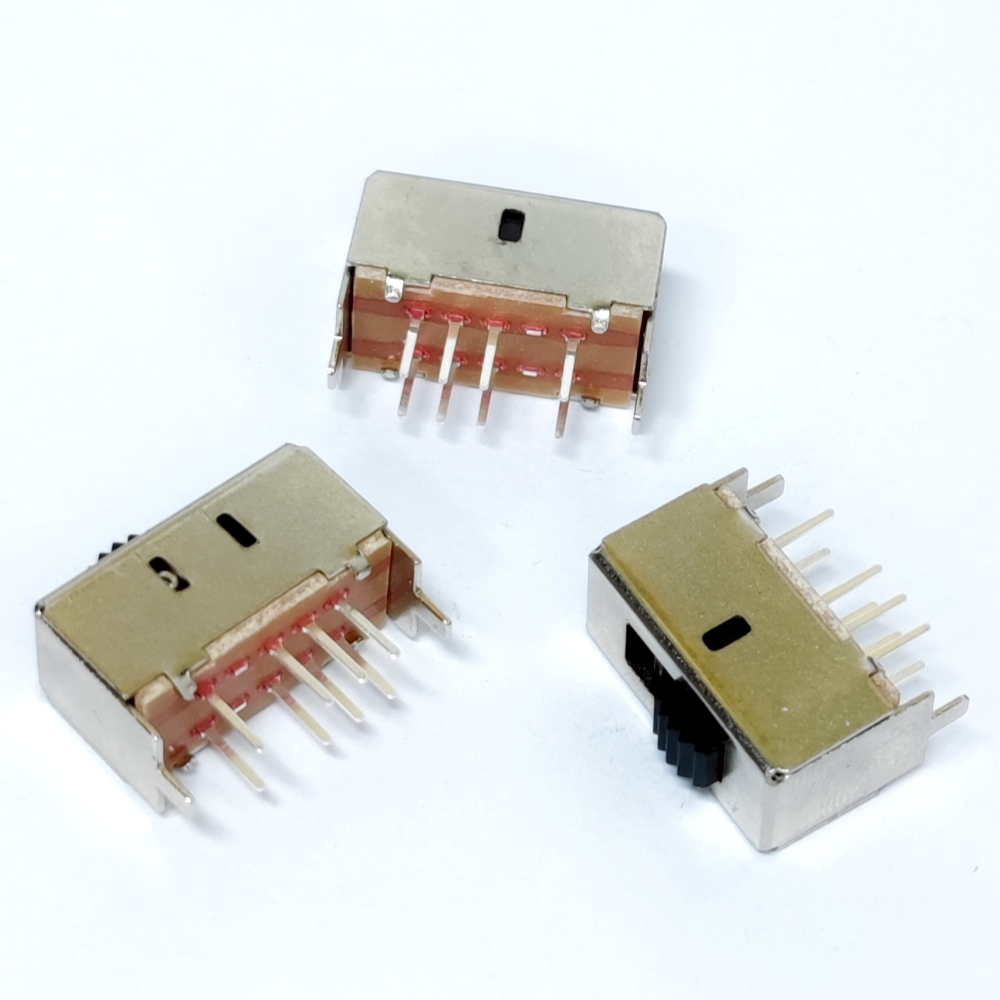

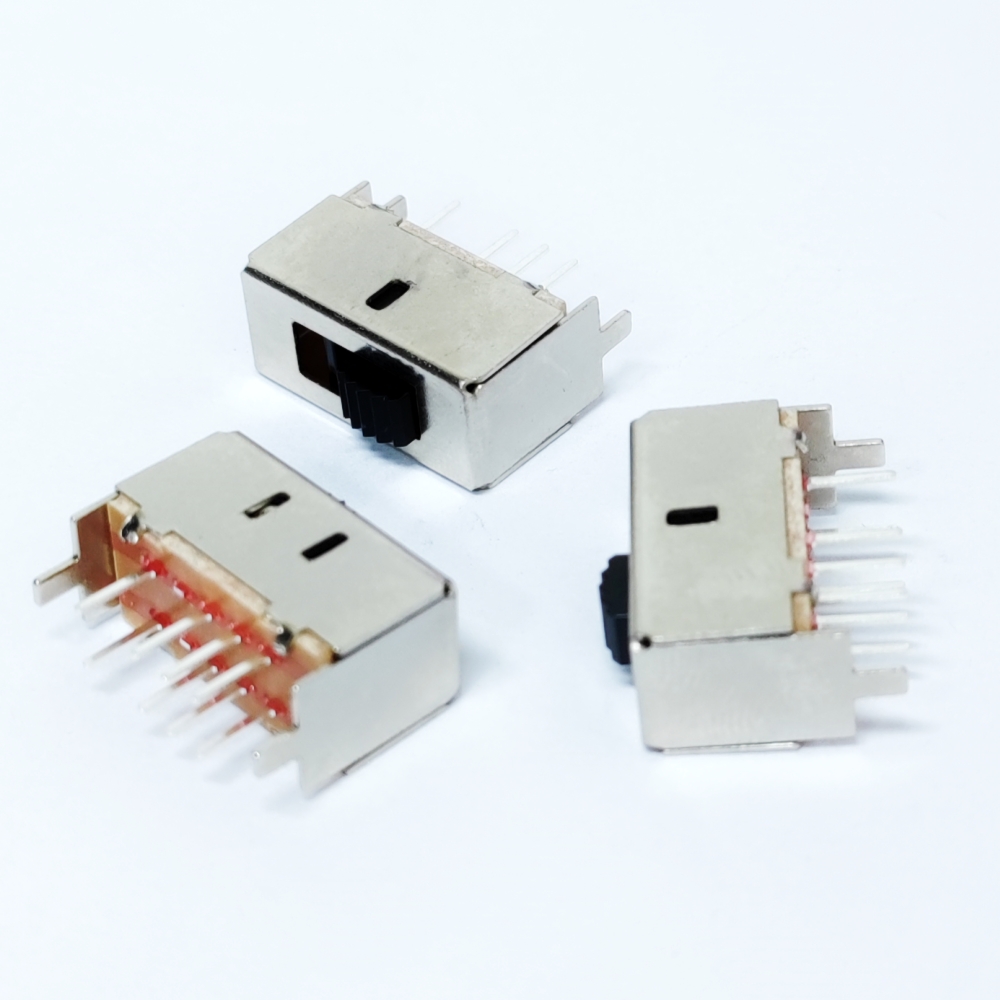

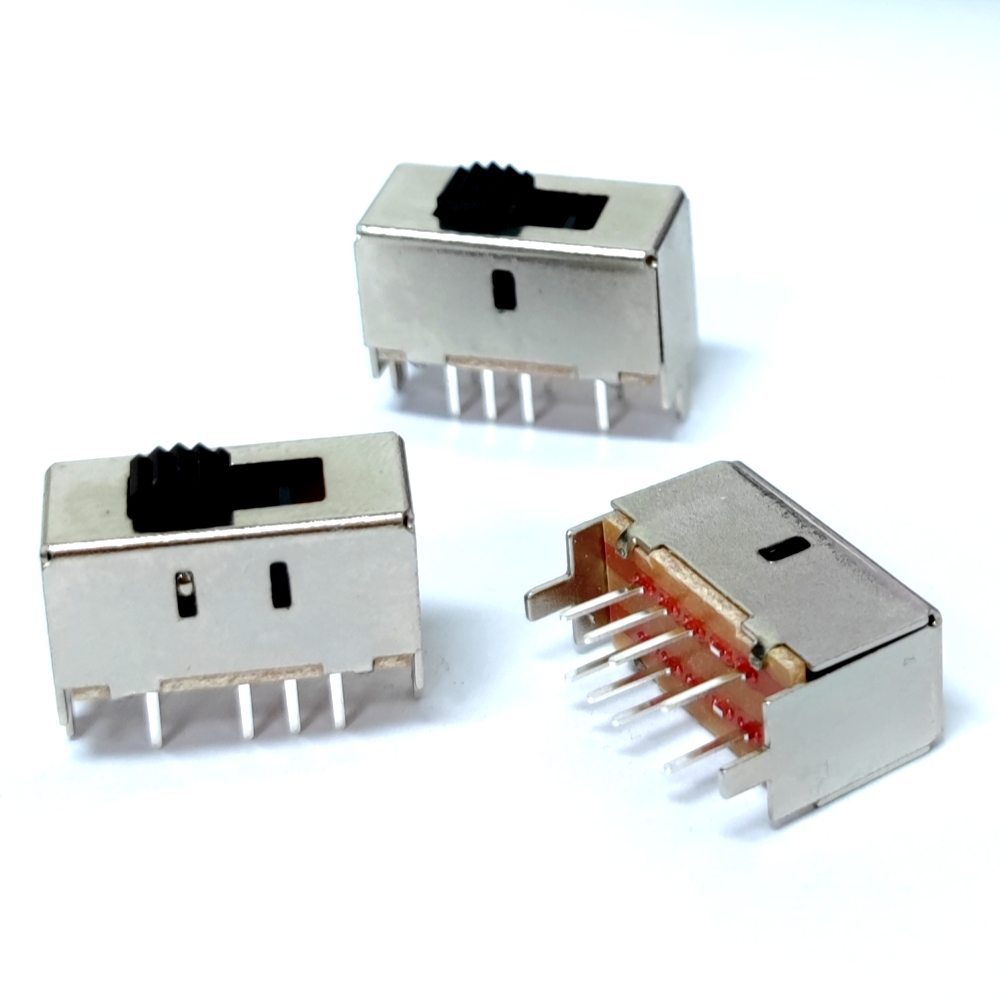

Short Knob 2 Pole 3 Way Slide Switch
Part Number: SS23E01-G2
The SS23E01-G2 is a double-pole 3-position (DP3T) slide switch with a short knob and a compact 20 × 9.4 × 12 mm body. Rated 50 V DC / 0.3 A, it mounts through-hole with 8 terminals, gives a positive steel-ball detent at each position, and delivers 10,000-cycle operation life. ISO 9001 and ISO 14001 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- DP3T (2P3T) 3-position switching, rated 50 V DC / 0.3 A
- Short knob, 8 through-hole PCB terminals
- Steel-ball detent for defined feel at each of three positions
- 250 ± 100 gf operating force, 2.5 ± 0.2 mm full travel
- 500 VAC dielectric strength, 10,000-cycle operation life
Applications
SPECIFICATIONS
| Part Number | SS23E01-G2 |
|---|---|
| Switch Type | Slide switch (mechanical, detented) |
| Contact Form | DP3T (2P3T, 2 pole 3 throw) |
| Positions | 3-position |
| Detent | Steel-ball detent (positive position feel) |
| Mounting / Terminal | Through-hole PCB, 8 terminals |
| Body Size | 20 × 9.4 × 12 mm |
| Rated Current / Voltage | 50 V DC, 0.3 A |
| Operating Force | 250 ± 100 gf (side push) |
| Travel | 2.5 ± 0.2 mm |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 500 VAC, 1 min |
| Operation Life | 10,000 cycles |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –25 °C to +70 °C |
| Contact Material | Phosphor bronze (C5210), silver-clad |
| Terminal Material | Brass, silver-plated |
| Housing Material | Steel frame, nickel-plated; phenolic base; POM knob |
| RoHS | Compliant |
| Compliance | ISO 9001 & ISO 14001 certified facility |
| Packaging | Bag |
Typical Applications
This DP3T slide switch routes two poles across three positions from one short actuator: audio-visual control panels, bench instruments, automation projects, and industrial control boards. The steel-ball detent holds each of the three positions firmly, and the 8 through-hole terminals suit standard PCB assembly.

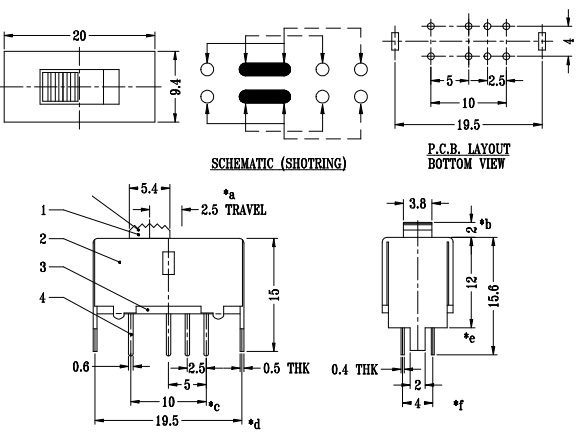

MECHANICAL DRAWING
Units: mm
General tolerance: ±0.3mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Knob |
POM |
1 |
Black |
2 |
Frame |
Steel strip |
1 |
Ni plating (≥1.5um) |
3 |
Base |
Phenolic resin |
1 |
Natural |
4 |
Terminal |
Brass strip |
8 |
Ag plating (≥0.1um) |
5 |
Contact clip |
PBS C5210 |
2 |
Ag clad (≥0.1um) |
6 |
Spring |
Steel wire |
1 |
Natural |
7 |
Steel ball |
Steel |
2 |
Natural |
All Switches Categories
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
