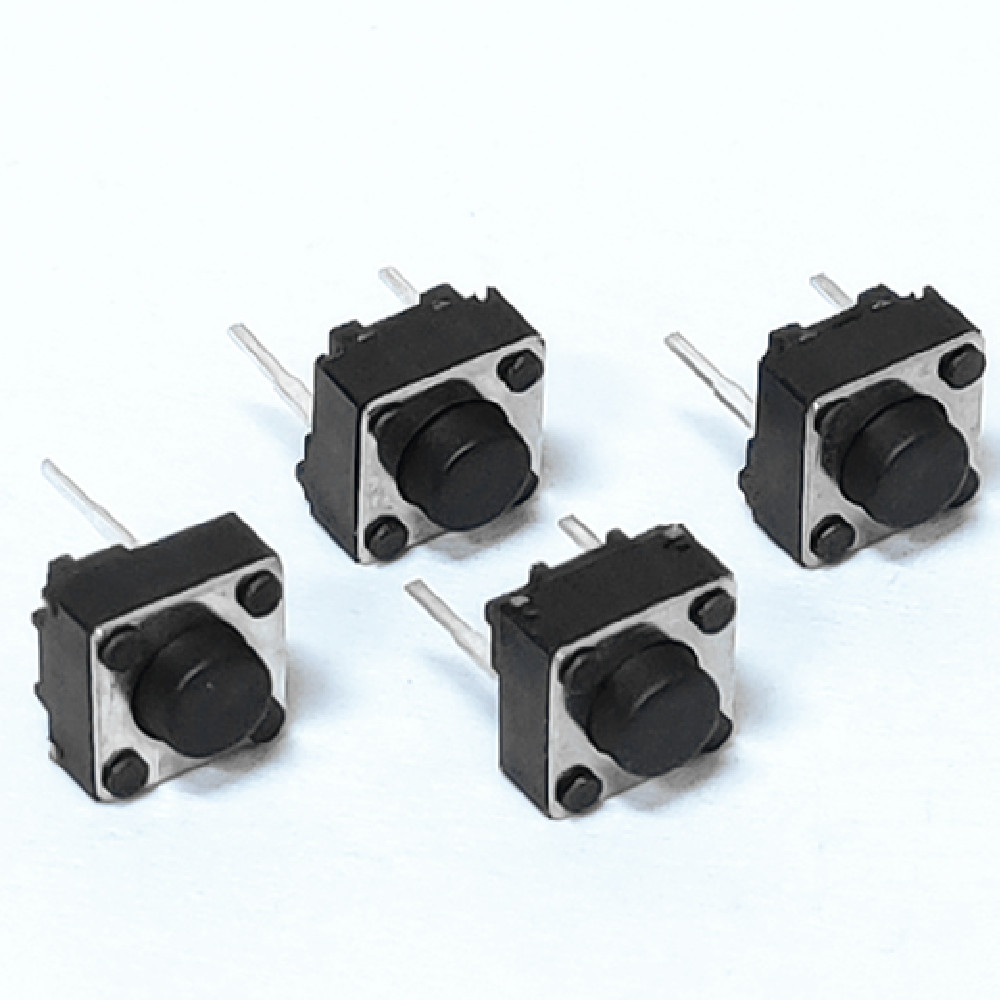

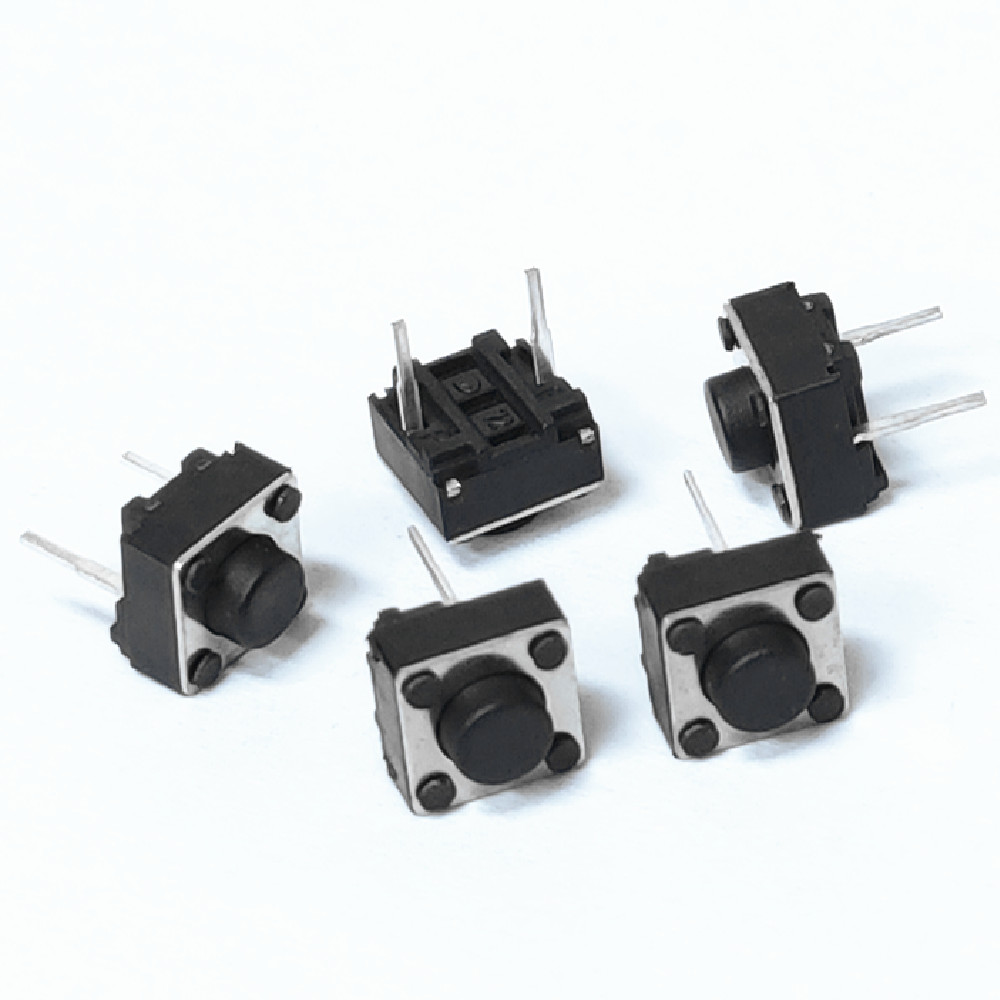

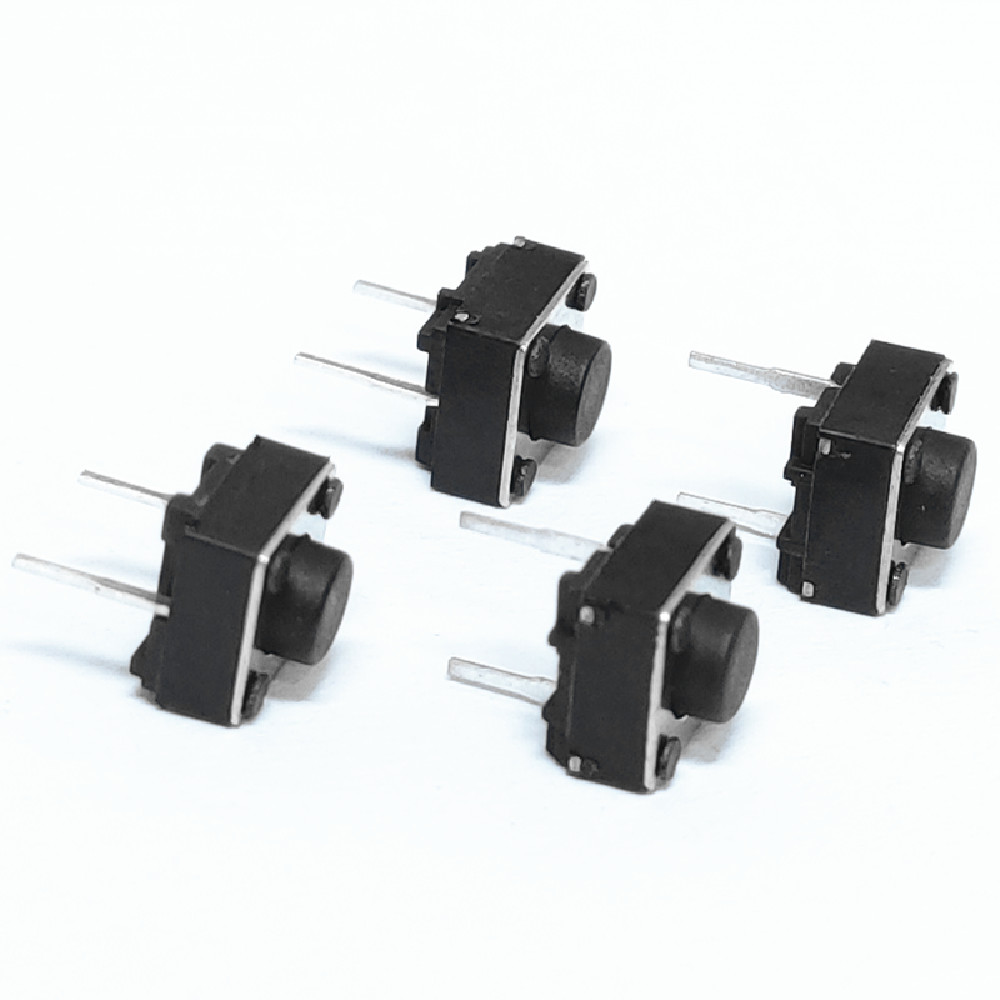

Push Button 6*6 Tact Switch Short Pin
Part Number: KAN0654-0501B
The KAN0654-0501B is a 6.0 × 6.0 × 5.0 mm through-hole tactile switch with short terminals and a firm 160 gf momentary action, rated for 100,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- 6.0 × 6.0 × 5.0 mm through-hole body with short terminals for tight boards
- 160 ±50 gf actuation with 0.25 mm travel for a defined click
- 100,000-cycle rated electrical life
- Stainless-steel (SUS) contacts, silver-plated, with ≤100 mΩ contact resistance
- Operating range –30 °C to +80 °C, storage –40 °C to +90 °C
Applications
SPECIFICATIONS
| Part Number | KAN0654-0501B |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Through-hole (THT), 4-pin, short terminal |
| Body Size | 6.0 × 6.0 × 5.0 mm |
| Operating Force | 160 ±50 gf |
| Travel | 0.25 ±0.1 mm |
| Return Force | 20 gf (min) |
| Stop Strength | 30 N |
| Stem Strength | 5 N (min) |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms, on and off |
| Electrical Life | 100,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | PA66 |
| Contact Material | Stainless steel (SUS), silver-plated |
| Terminal Material | Brass, silver-plated |
| Stem | PA66 |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
The KAN0654 suits panel controls and user-interface buttons across consumer electronics and home appliances. Its short-terminal footprint and 100,000-cycle life also fit office equipment and industrial control front panels.

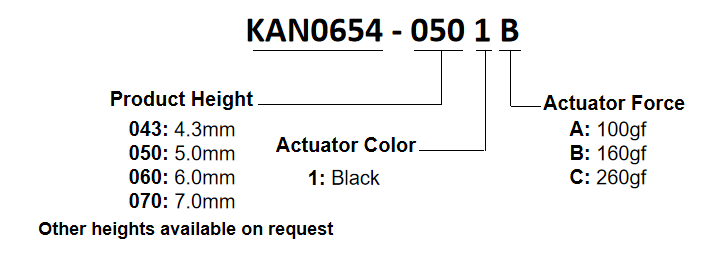

PART NUMBER KEY

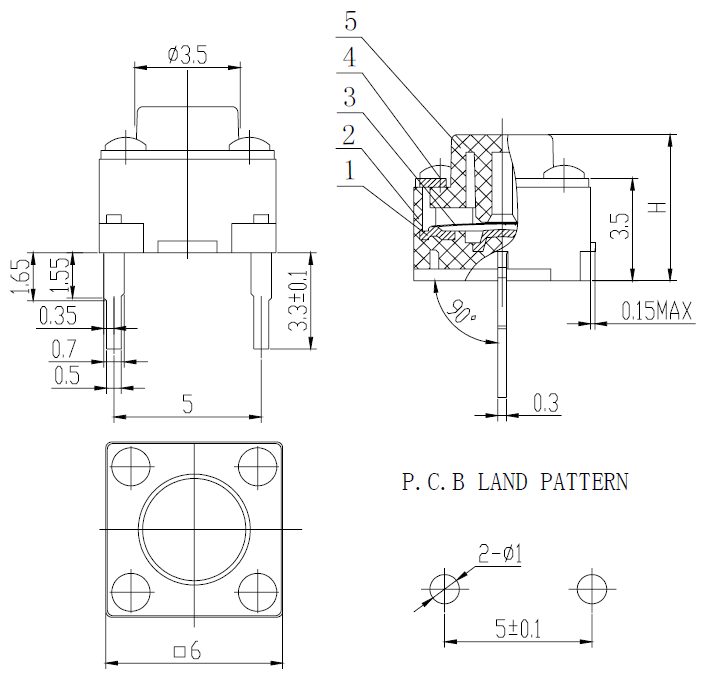

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Teminal |
Brass |
1 |
Sliver plating |
2 |
Case |
PA66 |
1 |
Black |
3 |
Contact |
Phosphor bronze |
1 |
Ag plating |
4 |
Cover |
SUS |
1 |
|
5 |
Stem |
PA66 |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
5 |
| Length (mm) |
6 |
| Width (mm) |
6 |
