Pcb Mount 6a 125 250vac electric micro switch
Part Number: G15-06PM03-40-13
The G15-06PM03-40-13 is a 6 A SPDT snap-action micro switch with a straight leaf-spring lever and straight PCB solder pins. It carries a 6 A resistive / 3 A inductive rating at 125 / 250 V AC, snaps at a 40 gf operating force, and is rated for 100,000 mechanical and 50,000 electrical cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- 6 A resistive / 3 A inductive at 125 / 250 V AC, also marked 1/2 HP for motor loads
- SPDT (COM / NO / NC) snap-action contacts, silver alloy, ≤100 mΩ contact resistance
- Straight leaf-spring lever (SUS301) with PCB solder pins for board mounting
- 40 ± 20 gf operating force, 11.8 mm operating position, 6.2 mm pretravel
- 100,000 mechanical and 50,000 electrical cycles, –25 °C to +85 °C range
Applications
SPECIFICATIONS
| Part Number | G15-06PM03-40-13 |
|---|---|
| Switch Type | Micro switch (snap-action) |
| Contact Form | SPDT (1 pole, COM / NO / NC) |
| Actuator | Straight leaf-spring lever (SUS301) |
| Mounting / Terminal | Straight PCB solder pins, 3 terminal |
| Body Size | 19.8 × 6.5 × 10.1 mm |
| Rated Current / Voltage | 6 A resistive, 3 A inductive at 125 / 250 V AC; 1/2 HP |
| Operating Force (OF) | 40 ± 20 gf |
| Return Force (RF) | 8 gf min |
| Operating Position (OP) | 11.8 ± 1.5 mm |
| Pretravel (PT) | 6.2 mm max |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 1000 VAC, 1 min |
| Mechanical Life | 100,000 cycles |
| Electrical Life | 50,000 cycles at 6 A 250 V AC |
| Operating Temperature | –25 °C to +85 °C |
| Approvals | CQC certified |
| Housing Material | PBT (30% glass-filled), black |
| Contact Material | Silver alloy |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
This PCB-mount micro switch works well for board-level switching and sensing in compact equipment: appliance control boards, automotive electronics modules, industrial control assemblies, and office-equipment mechanisms. The straight lever and solder pins make it a common choice for direct board mounting, and the 50,000-cycle electrical life supports frequent switching.

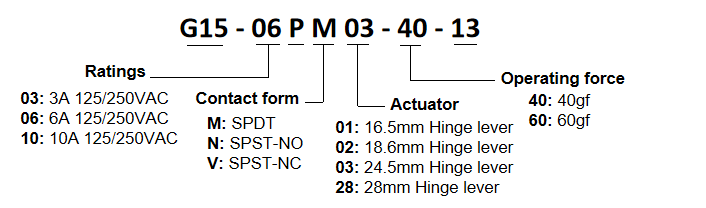

PART NUMBER KEY

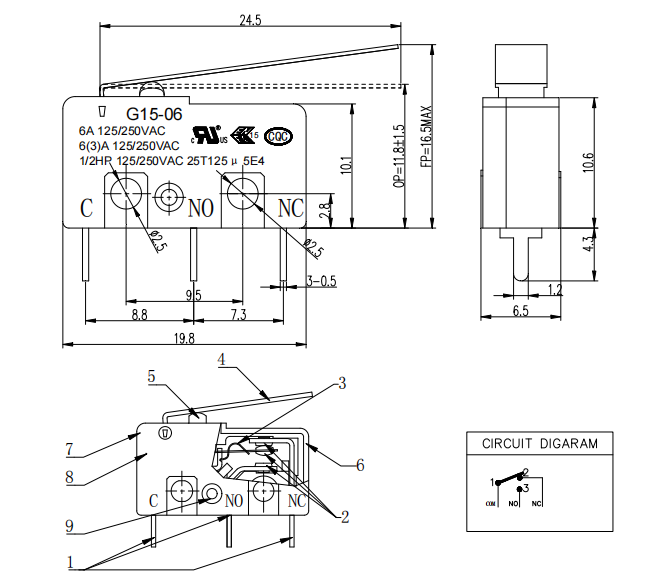

MECHANICAL DRAWING
Units: mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
C2680R-1/2H |
3 |
Ag Plated |
2 |
Contact |
Silver alloy |
2 |
|
3 |
Spring |
QBe2.0 |
1 |
|
4 |
Lever |
SUS301 |
1 |
|
5 |
Stem |
PBT 30%GF |
1 |
Black |
6 |
Case |
PBT 30%GF |
1 |
Black |
7 |
Cover |
PBT 30%GF |
1 |
Black |
8 |
Change plated |
QBe2.0 |
1 |
|
9 |
Rivet |
AL |
1 |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
