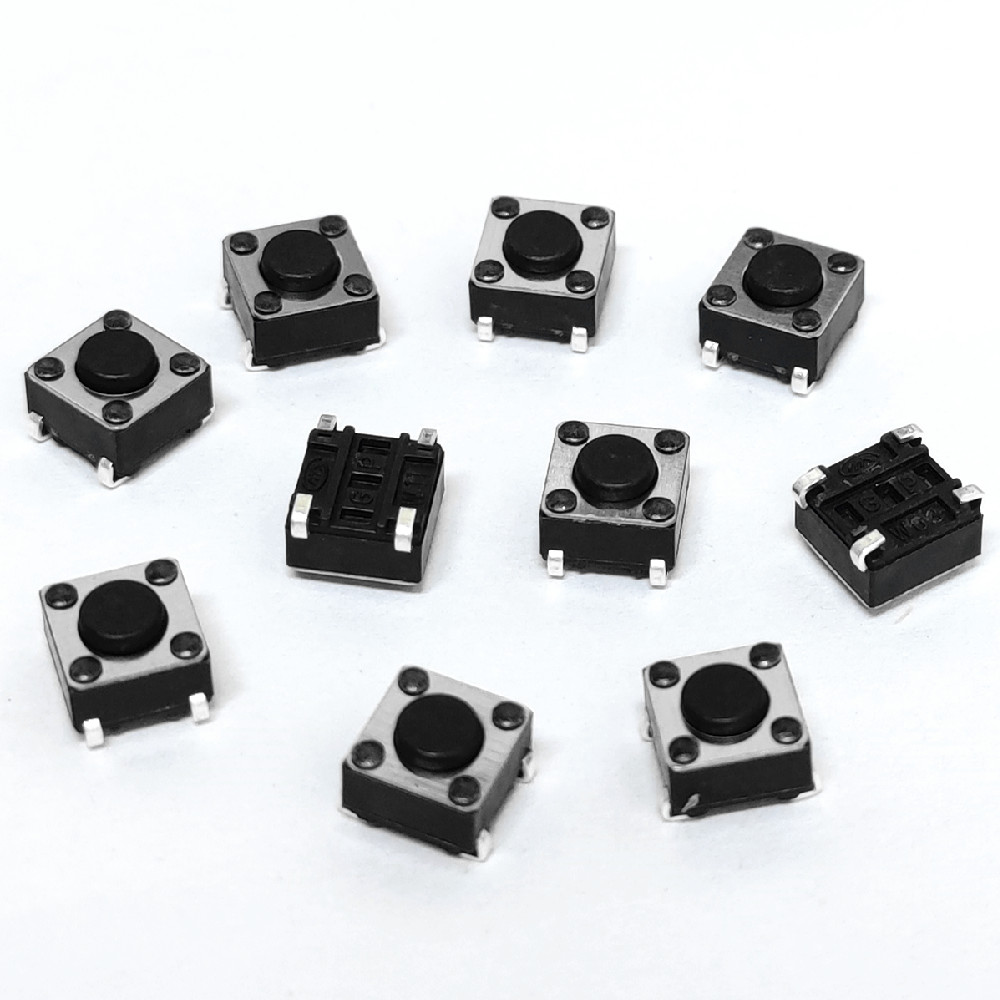

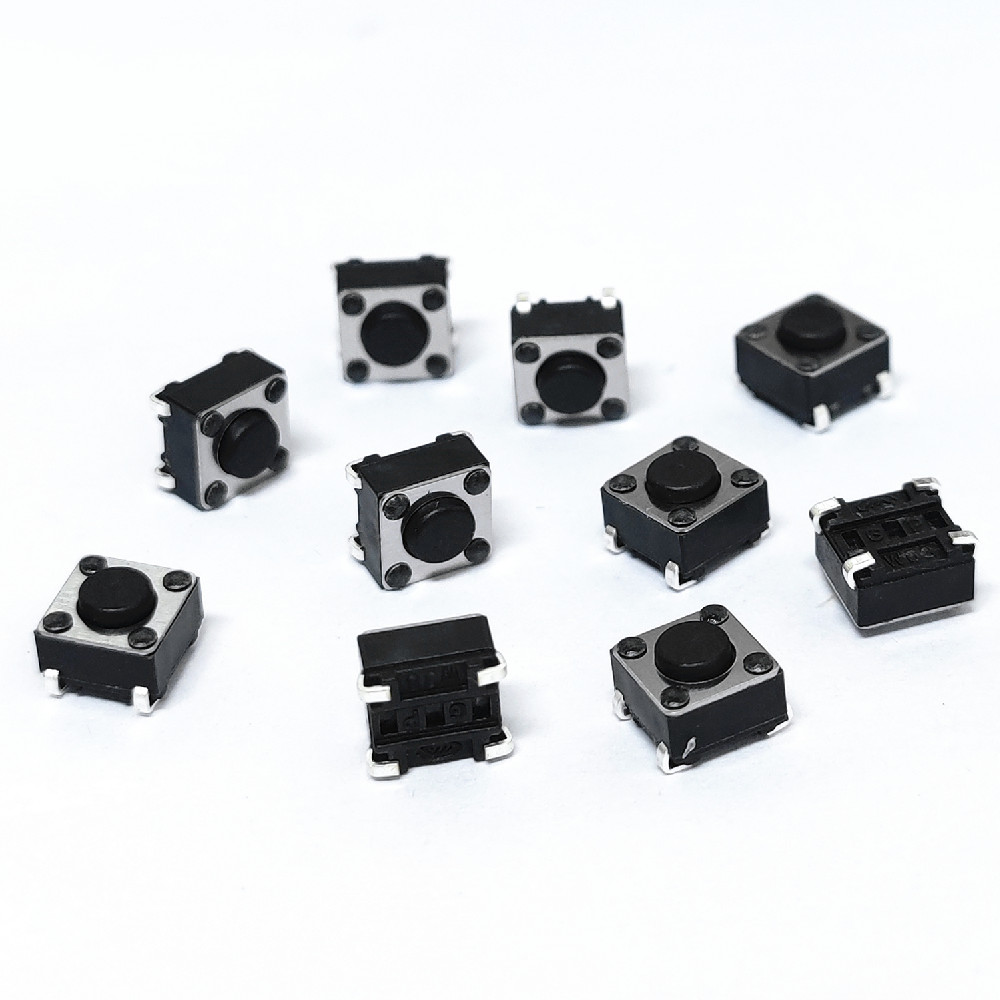

Normally open J-Bend 4 pin Tact Switch 6mm
Part Number: KAN0649J-0431A1001-B42
The KAN0649J-0431A1001-B42 is a 6 × 6 × 4.3 mm surface-mount tact switch with J-bend terminals and a 4-pin layout. It surface-mounts to a PCB, gives a light press at 100 gf, and is rated for 1,000,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- J-bend terminals for a strong, inspectable solder joint
- High 1,000,000-cycle rated life for long-duty use
- Light 100 ± 50 gf press with a 0.25 mm travel
- Standard 6 × 6 mm footprint, FR52 body and stem
- –30 °C to +80 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN0649J-0431A1001-B42 |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD), J-bend, 4-pin |
| Body Size | 6.0 × 6.0 × 4.3 mm |
| Operating Force | 100 ± 50 gf |
| Travel | 0.25 ± 0.15 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Stem Strength | 20 N min |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ON ≤10 ms, OFF ≤10 ms |
| Electrical Life | 1,000,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | FR52 |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| Cover | SUS |
| Stem | FR52 |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel |
Typical Applications
With a light 100 gf press and a high 1,000,000-cycle life, this J-bend switch suits high-duty interfaces: consumer electronics, industrial control, automotive controls, and mobile devices. The J-bend leads give a strong, inspectable joint for assemblies that see frequent actuation.

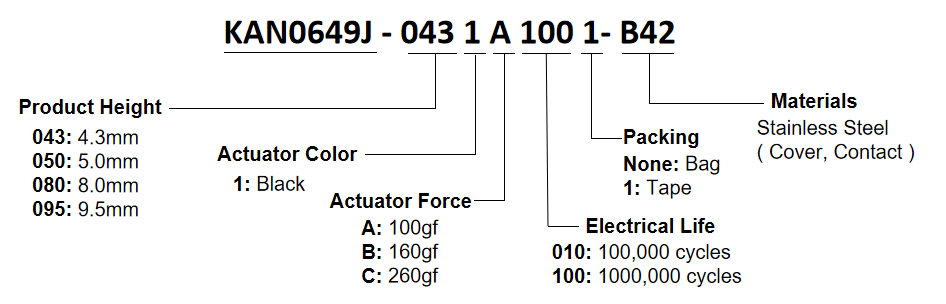

PART NUMBER KEY

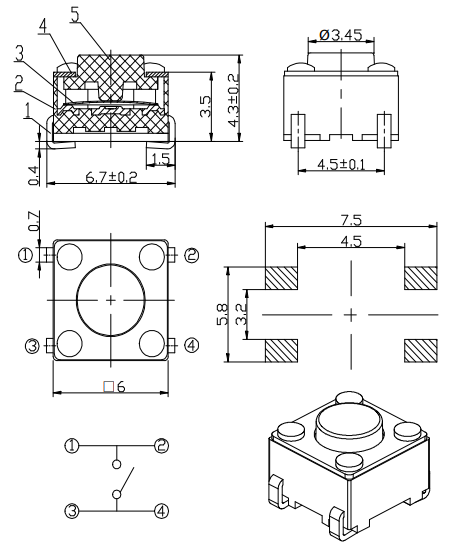

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Silver plating |
2 |
Case |
FR52 |
1 |
Black |
3 |
Contact |
SUS |
1 |
Contact side silver plating |
4 |
Cover |
SUS |
1 |
|
5 |
Stem |
FR52 |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
4.3 |
| Length (mm) |
6 |
| Width (mm) |
6 |
