Momentary THT Tact Switch 12x12mm
Part Number: KAN1211A-1201B

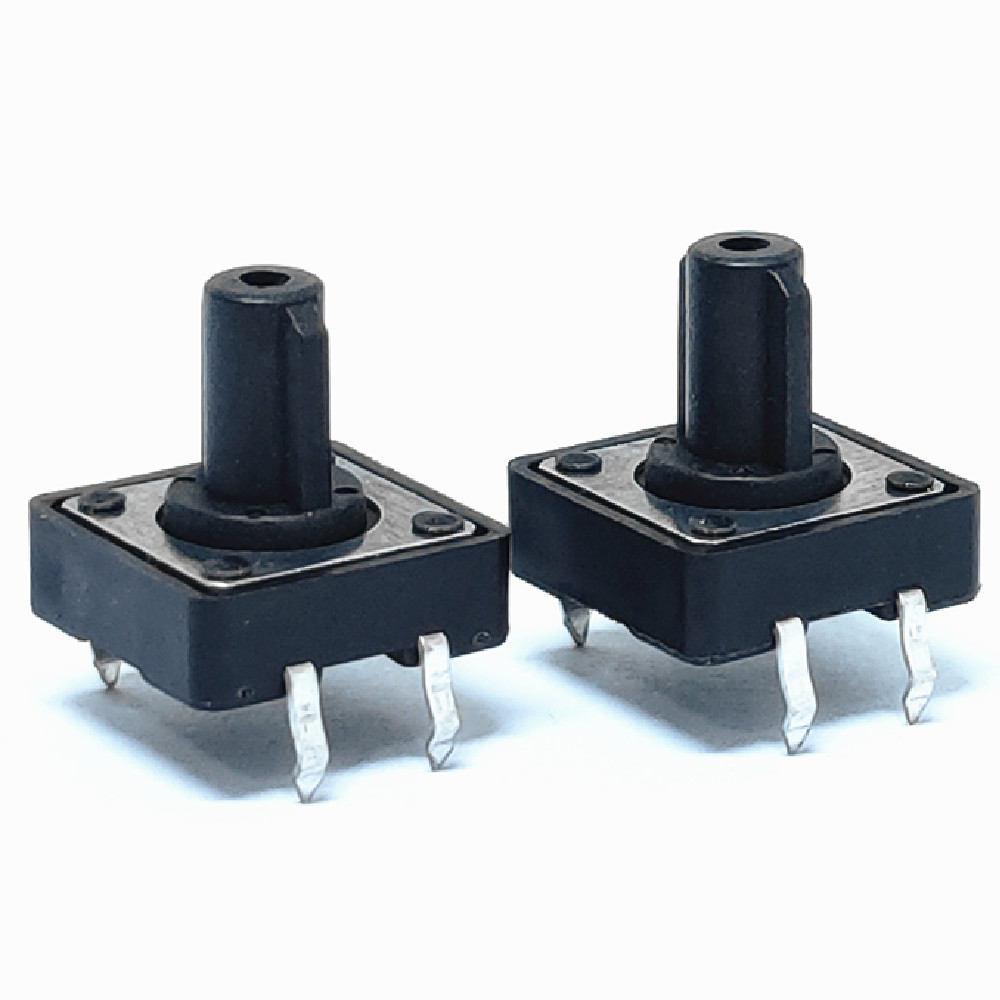

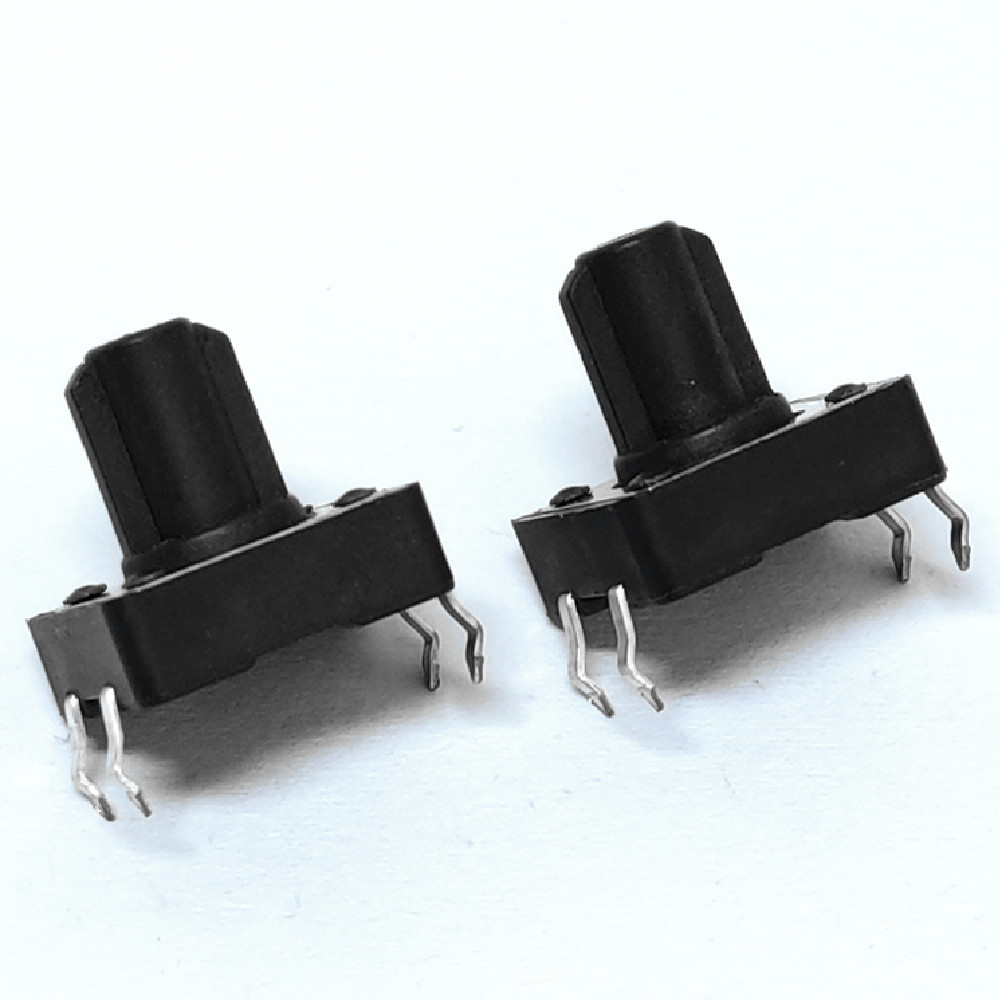

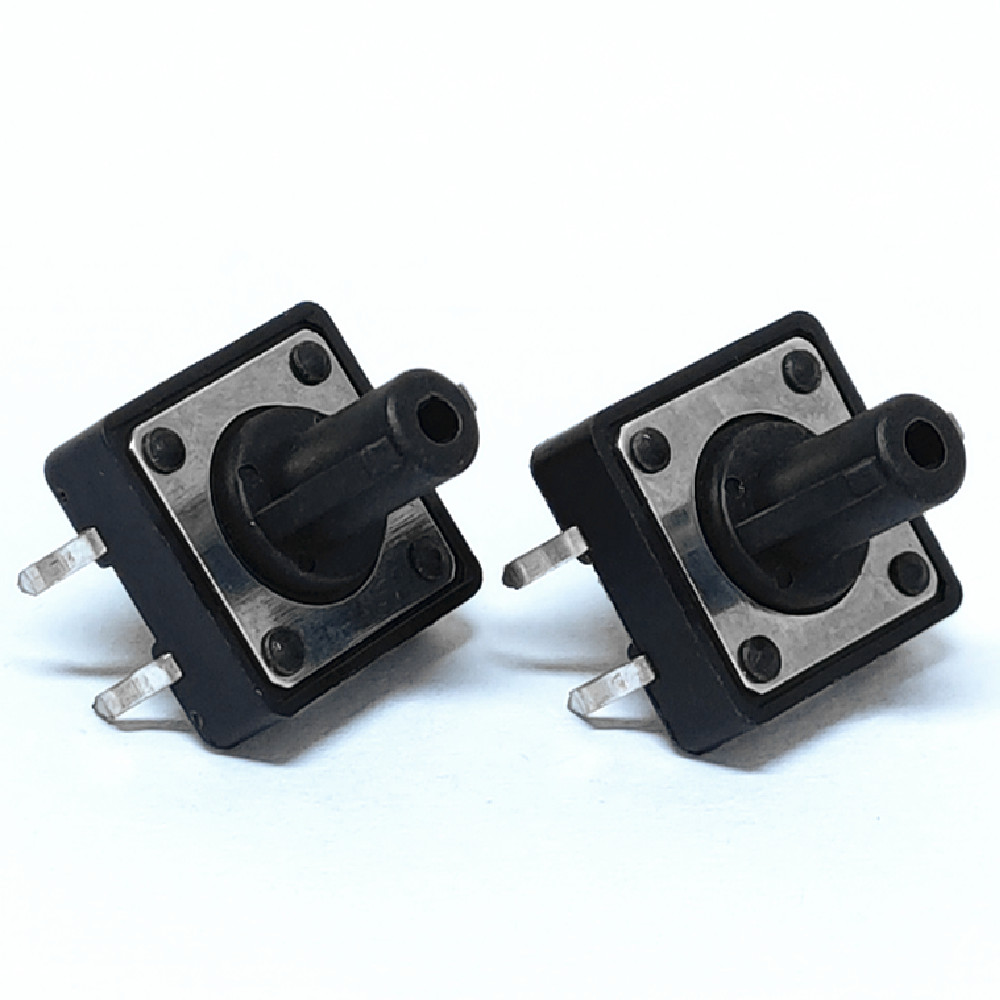

The KAN1211A-1201B is a 12 × 12 mm through-hole momentary tactile switch with a 160 gf action, 30 gf return force, and stainless-steel contacts, rated for 100,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- 12 × 12 mm through-hole tactile switch, 4-pin
- 160 ±50 gf actuation, 0.35 mm travel, 30 gf return force
- 100,000-cycle rated electrical life
- Stainless-steel contacts (silver-clad), copper-alloy terminals with Ag-over-Ni plating
- Operating range –30 °C to +80 °C, storage –40 °C to +90 °C
Applications
SPECIFICATIONS
| Part Number | KAN1211A-1201B |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Through-hole (THT), 4-pin |
| Body Size | 12.0 × 12.0 × 12.0 mm |
| Operating Force | 160 ±50 gf |
| Travel | 0.35 ±0.1 mm |
| Return Force | 30 gf (min) |
| Stop Strength | 30 N |
| Stem Strength | 10 N (min) |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms, on and off |
| Electrical Life | 100,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | PA66 |
| Contact Material | Stainless steel (SUS), silver-clad |
| Terminal Material | Copper alloy, silver over nickel plating |
| Stem | PA66 |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
The KAN1211A momentary switch fits keypads and control panels in consumer electronics and industrial control equipment. Its copper-alloy terminals and 100,000-cycle life also suit office equipment and home appliances.

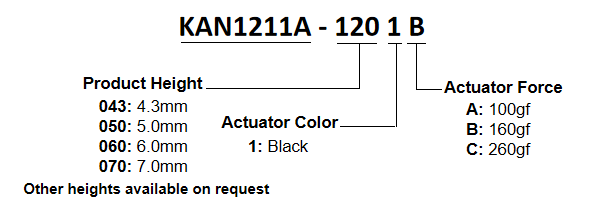

PART NUMBER KEY

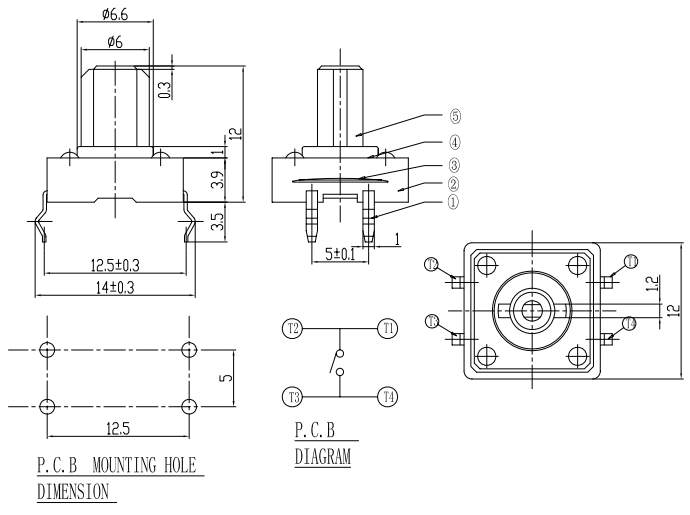

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Cover |
Copper alloy |
1 |
Ag plating over Ni plating |
2 |
Stem |
PA66 |
1 |
Black |
3 |
Contact plate |
Stainless steel plate |
1 |
Ag-CLAD |
4 |
Stroma |
PA66 |
1 |
Black |
5 |
Terminal |
Copper alloy |
4 |
Ag plating over Ni plating |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
12 |
| Length (mm) |
12 |
| Width (mm) |
12 |
