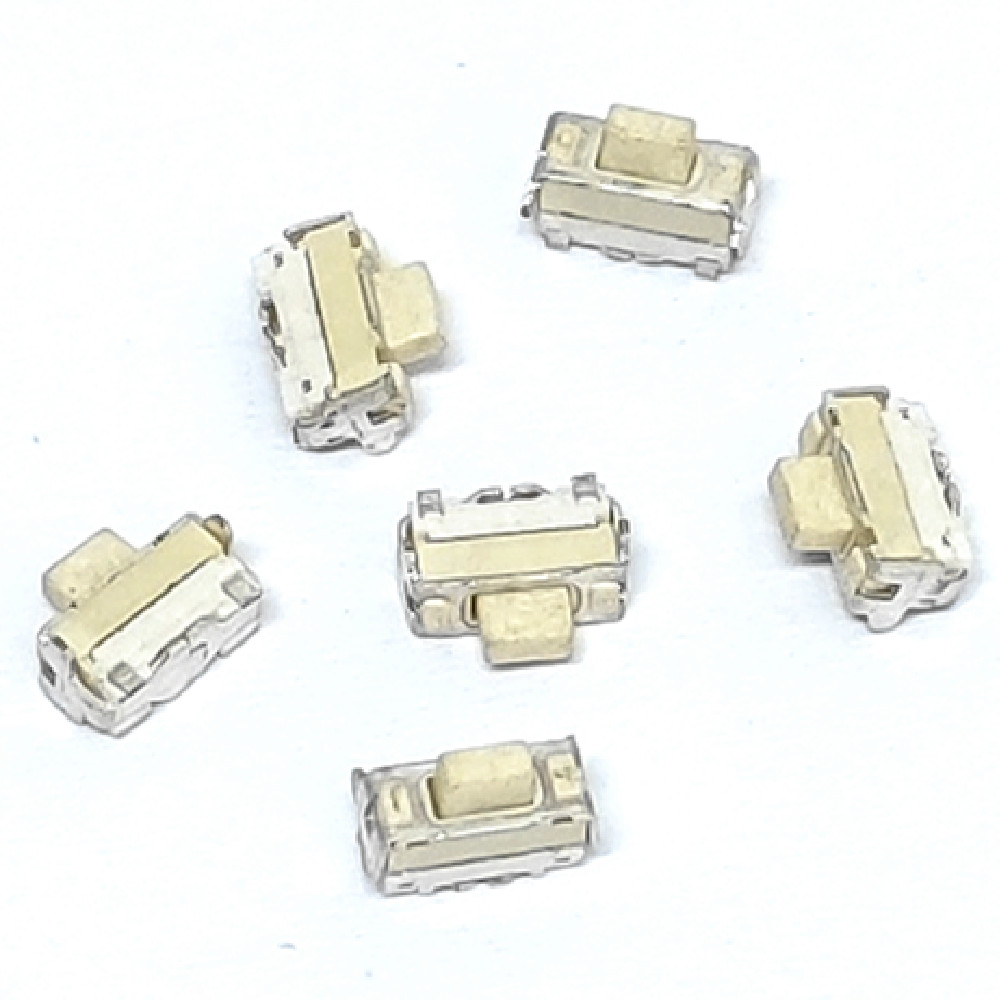

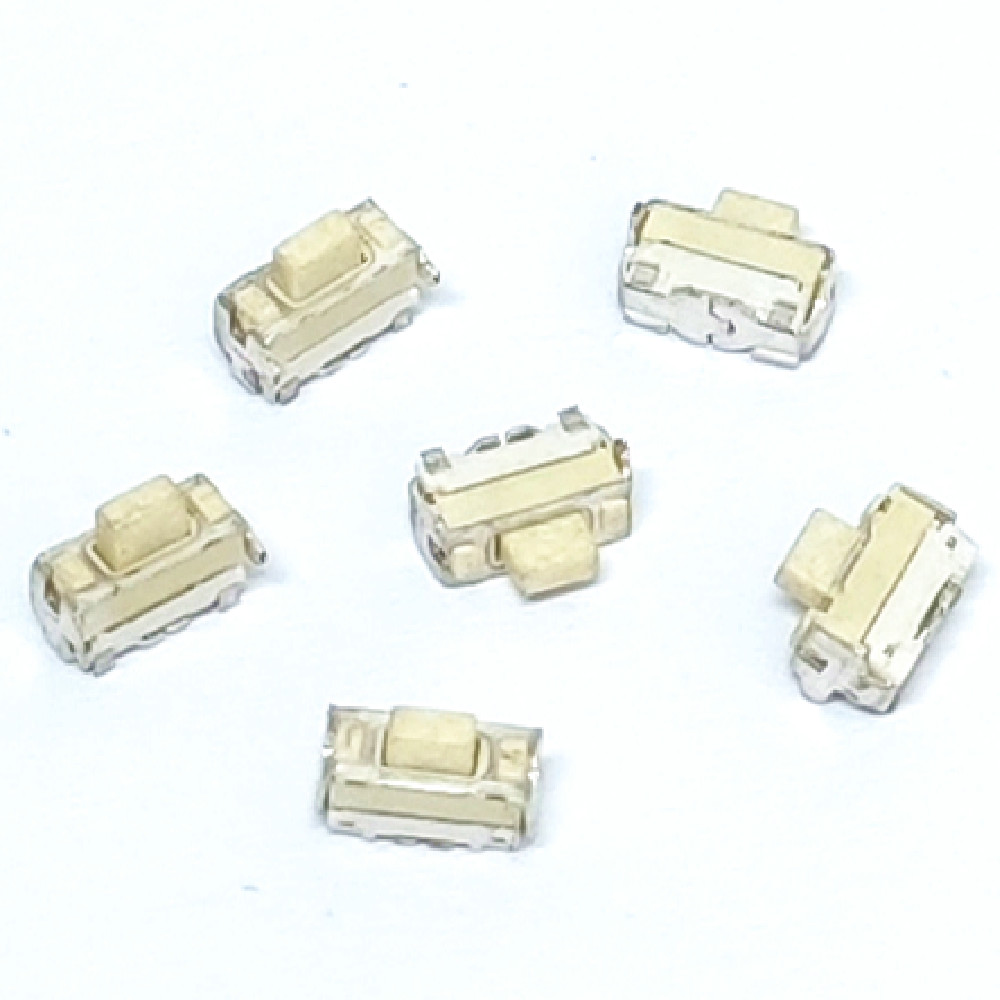

Micro Reset Phoho Side Push Tact Switch
Part Number: KAN0241H-0351B1-A
The KAN0241H-0351B1-A is an ultra-miniature 4.5 × 1.8 mm surface-mount reset switch with a side actuator and a 3.5 mm low profile, rated for 30,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Ultra-miniature 4.5 × 1.8 × 3.5 mm surface-mount body with a side actuator
- LCP housing rated for reflow soldering
- 160 ±50 gf actuation with 0.15 mm travel
- Side-push reset format, rated for 30,000 operating cycles
- Stainless-steel (SUS) contacts, silver-plated, ≤100 mΩ contact resistance
Applications
SPECIFICATIONS
| Part Number | KAN0241H-0351B1-A |
|---|---|
| Switch Type | Tactile switch (momentary, reset) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface mount (SMD/SMT), side actuated |
| Body Size | 4.5 × 1.8 × 3.5 mm |
| Operating Force | 160 ±50 gf |
| Travel | 0.15 ±0.1 mm |
| Return Force | 20 gf (min) |
| Stop Strength | 30 N |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms |
| Electrical Life | 30,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | LCP |
| Contact Material | Stainless steel (SUS), silver-plated |
| Terminal Material | Phosphor copper, silver-plated |
| Stem | LCP |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape (tape and reel) |
Typical Applications
The KAN0241H is a side-push reset switch for compact boards in consumer electronics and communications equipment. Its low profile also fits medical devices and office equipment where a recessed reset button is needed.

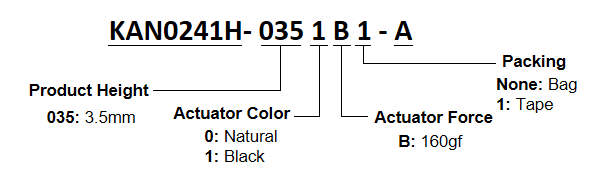

PART NUMBER KEY

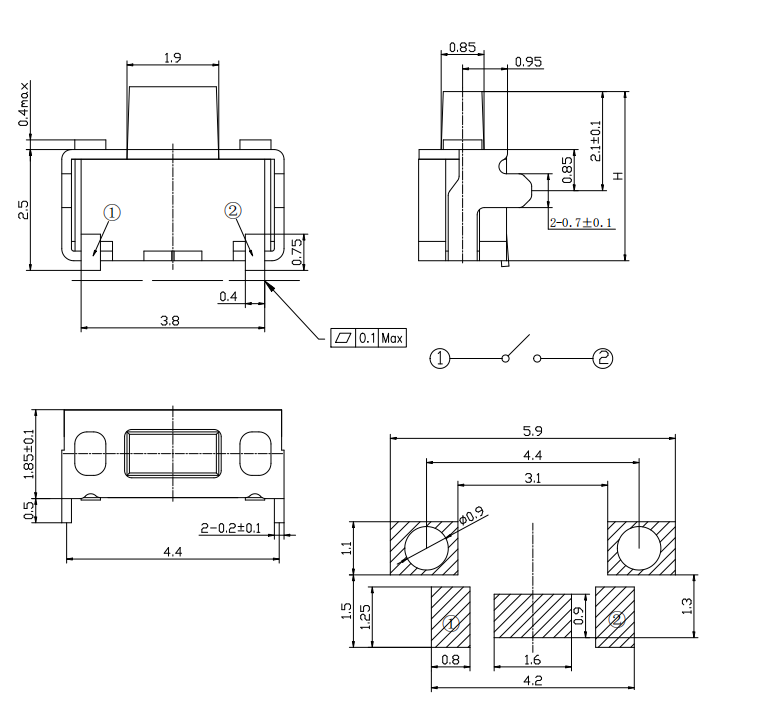

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Phosphor copper |
1 |
Ag Plating |
2 |
Case |
LCP |
1 |
White |
3 |
Contact |
SUS |
2 |
Ag Plating |
4 |
Stem |
LCP |
1 |
Black |
5 |
Cover |
Phosphor copper |
1 |
Ag plating |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
3.5 |
| Length (mm) |
4.5 |
| Width (mm) |
1.8 |
