J-bend SMD 3×6 Touch Switches
Part Number: KAN3547U-0503C1-13

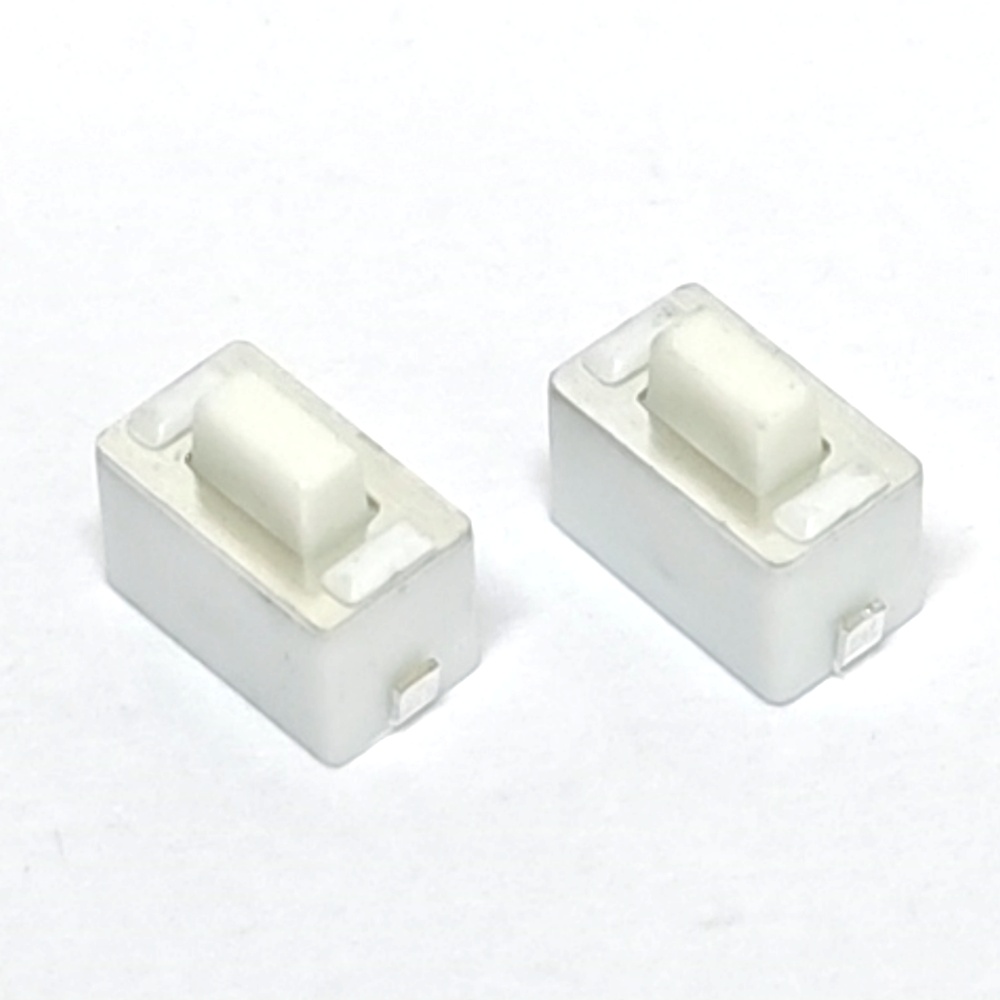

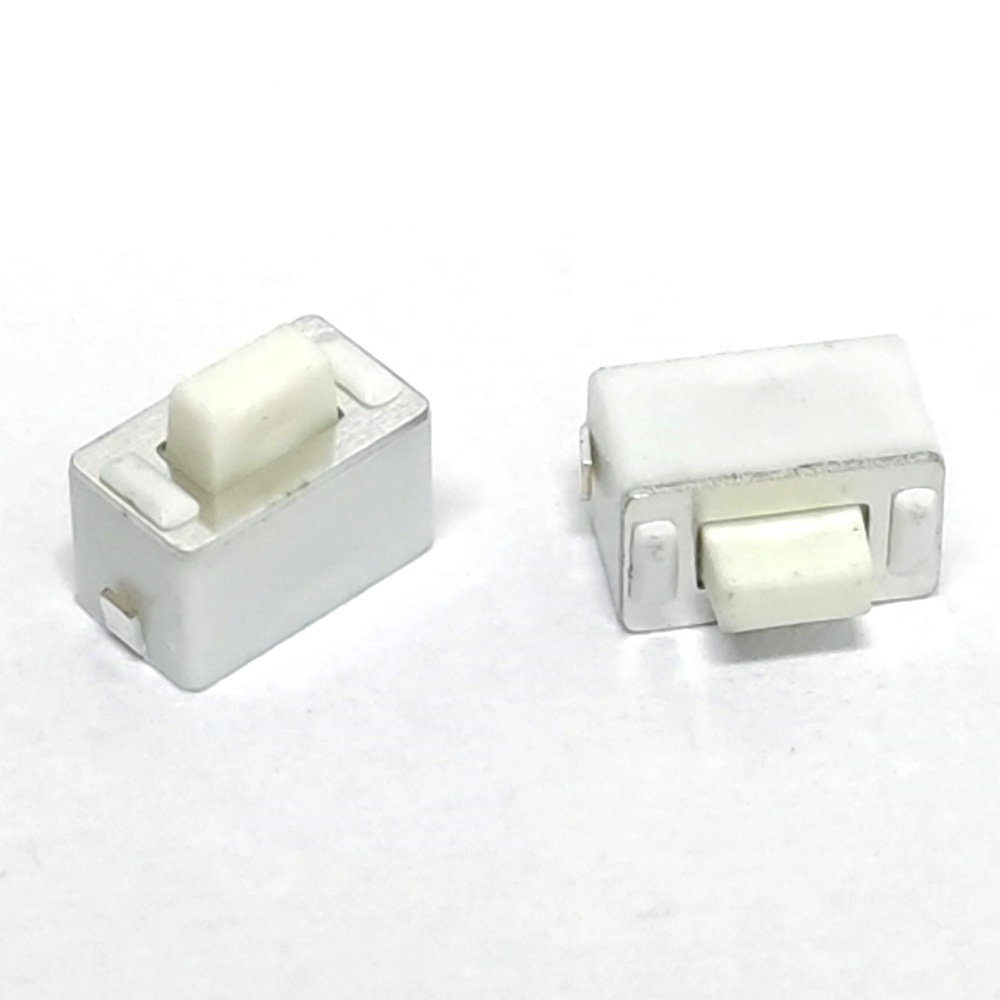

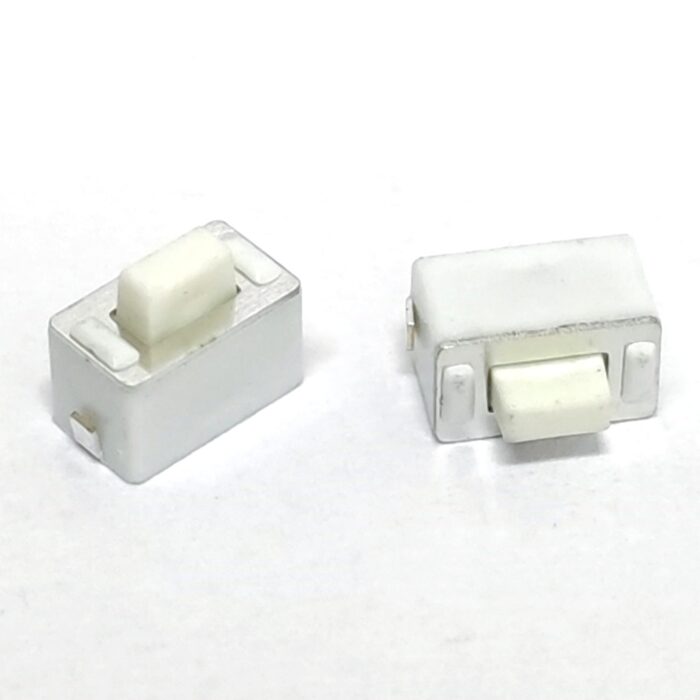

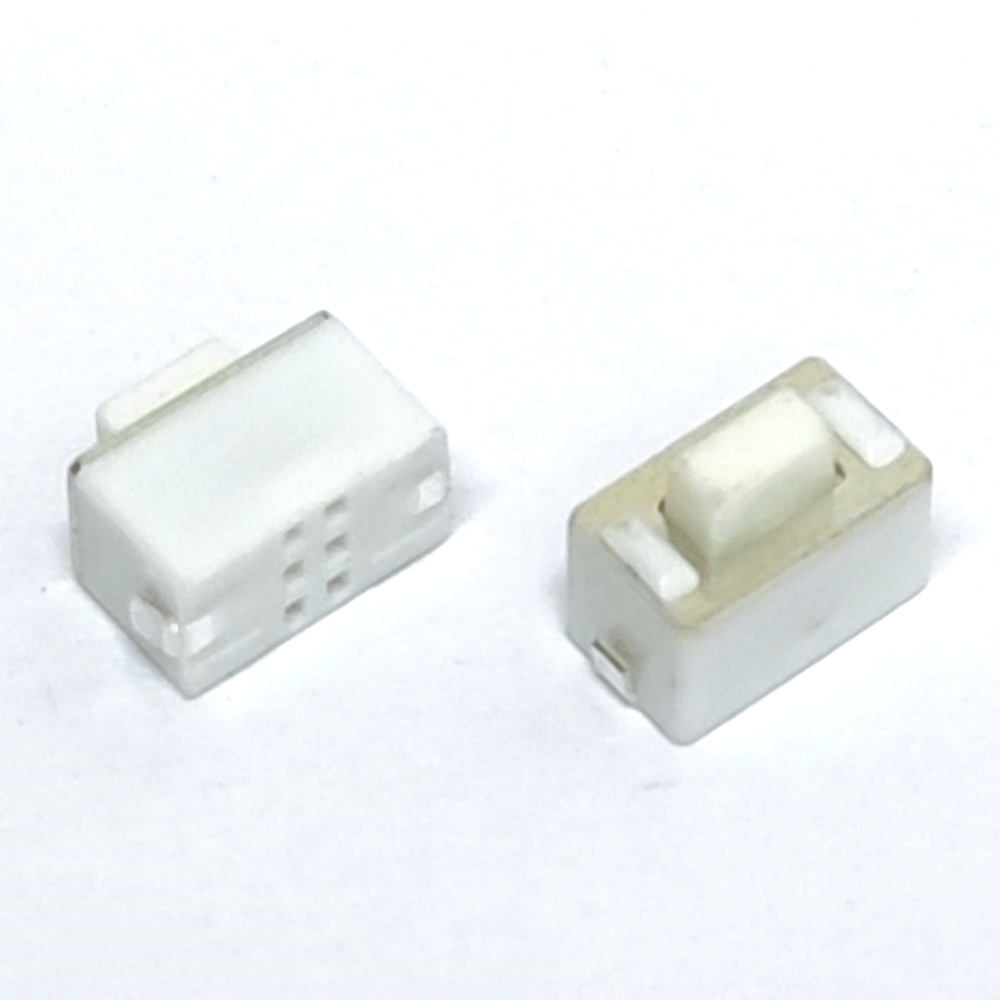

The KAN3547U-0503C1-13 is a 6 × 3.5 × 5 mm surface-mount touch switch with J-bend terminals in a compact 3 × 6 mm form factor. It surface-mounts to a PCB, gives a defined press at 260 gf, and is rated for 50,000 operating cycles across a wide –40 °C to +85 °C range. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- J-bend terminals for a strong, inspectable solder joint
- Compact 3 × 6 mm form factor, 5 mm height
- Defined 260 ± 70 gf press with a 0.25 mm travel
- Wide –40 °C to +85 °C operating and storage range
- 50,000-cycle rated life
Applications
SPECIFICATIONS
| Part Number | KAN3547U-0503C1-13 |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD), J-bend |
| Body Size | 6.0 × 3.5 × 5.0 mm |
| Operating Force | 260 ± 70 gf |
| Travel | 0.25 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms |
| Electrical Life | 50,000 cycles |
| Operating Temperature | –40 °C to +85 °C |
| Storage Temperature | –40 °C to +85 °C |
| Housing Material | PPA |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| Cover | Brass, nickel-plated |
| Stem | PPA |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel |
Typical Applications
This J-bend touch switch gives a strong, inspectable solder joint over a wide –40 °C to +85 °C range, suiting consumer electronics, mobile devices, remote controls, and home appliances. The J-bend leads suit assemblies where joint inspection and mechanical hold matter.

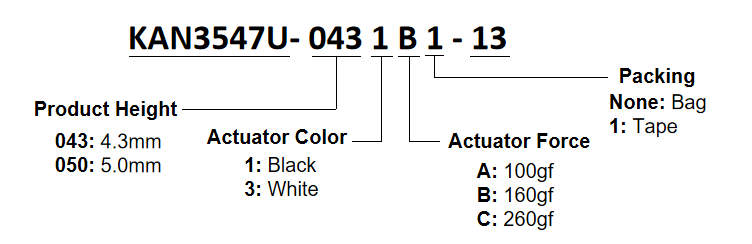

PART NUMBER KEY

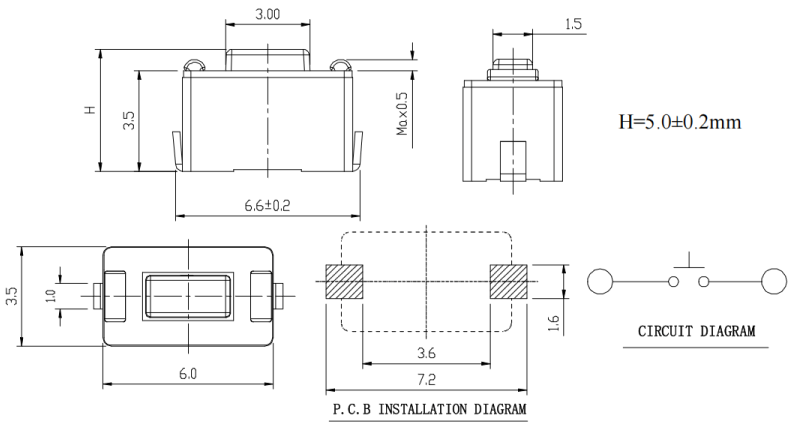

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Ag plating |
2 |
Case |
PPA |
1 |
White |
3 |
Contact |
SUS |
2 |
Ag plating |
4 |
Cover |
Brass |
1 |
Ni plating |
5 |
Stem |
PPA |
1 |
White |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
5 |
| Length (mm) |
6 |
| Width (mm) |
3.5 |
