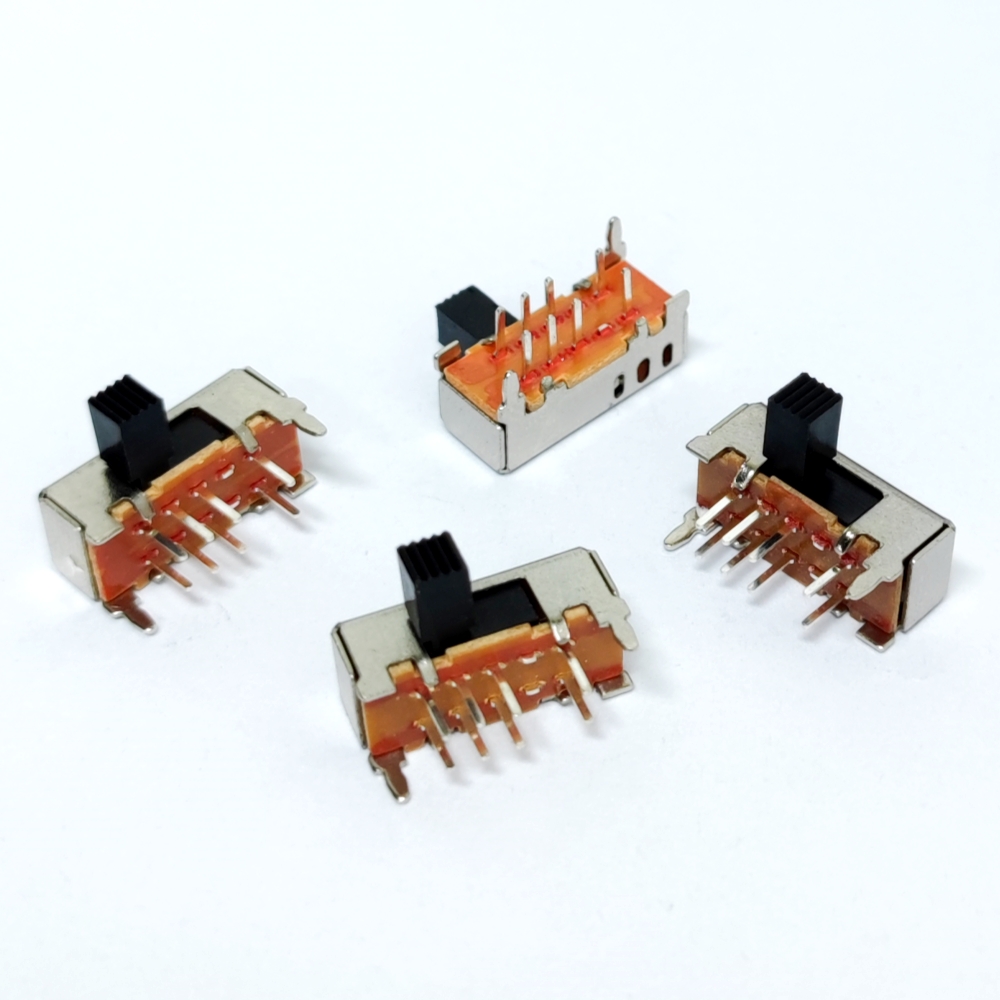

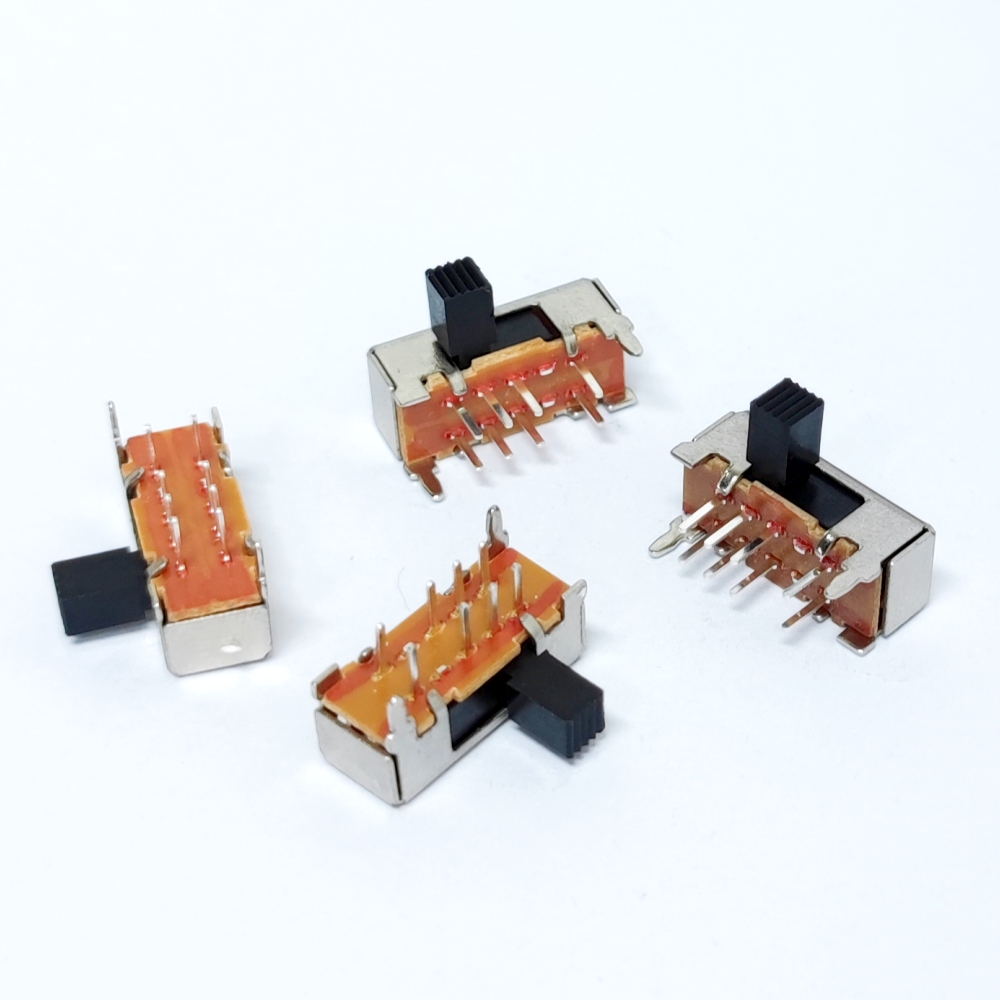

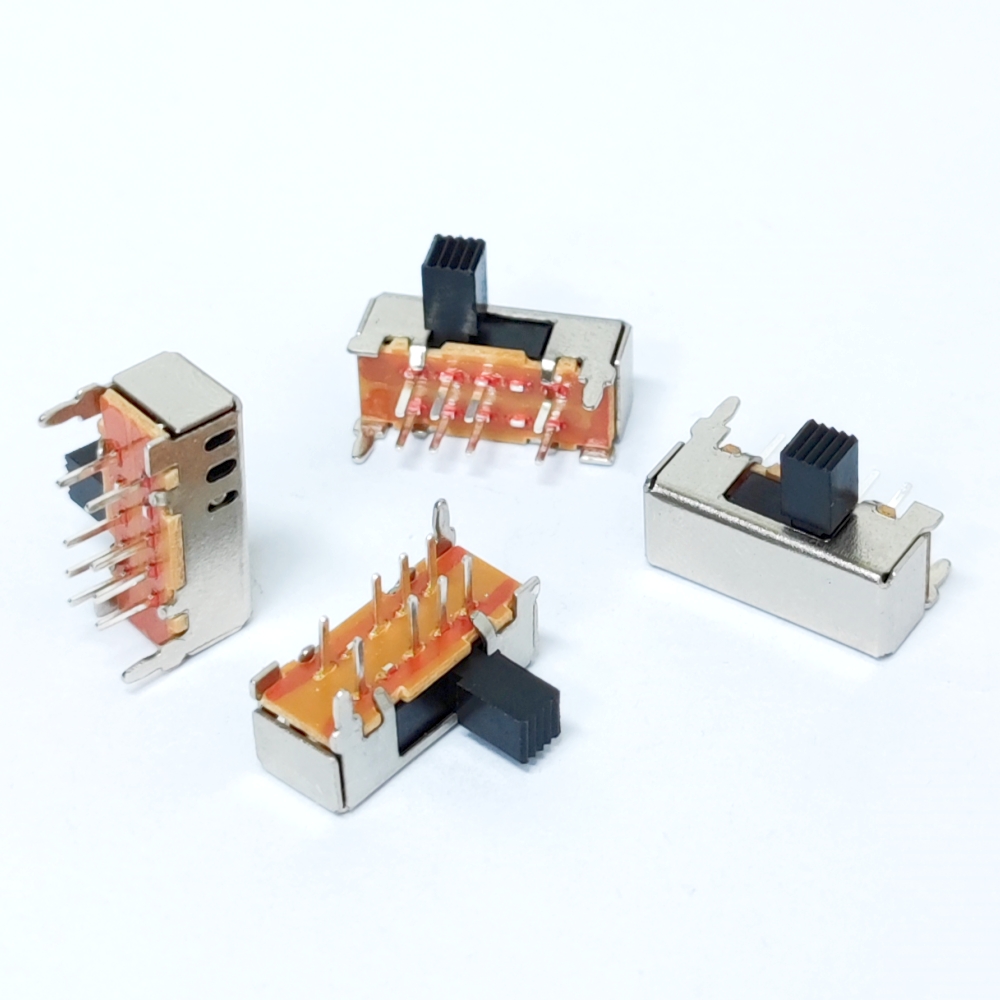

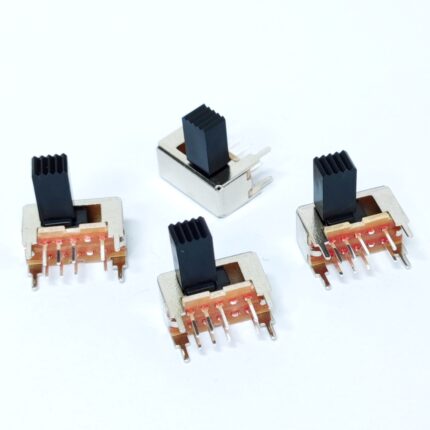

Electrical Top Mount 2P3T Slide Switch
Part Number: SK23D06-G5
The SK23D06-G5 is a top-mount DP3T (2P3T) slide switch with a steel-ball detent and through-hole PCB terminals, rated 50 V DC / 0.3 A. It offers three-position switching, a positive detent at each position, and 10,000-cycle operation life. ISO 9001 and ISO 14001 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- DP3T (2P3T) 3-position switching, rated 50 V DC / 0.3 A
- Top-mount actuator with a steel-ball detent for positive position feel
- Through-hole PCB terminals with eight solder pins
- 250 ± 100 gf side-slide force, 2 ± 0.2 mm travel
- 500 V AC dielectric strength, 10,000-cycle operation life
Applications
SPECIFICATIONS
| Part Number | SK23D06-G5 |
|---|---|
| Switch Type | Slide switch (mechanical, detented) |
| Contact Form | DP3T (2P3T, 2 pole 3 throw) |
| Positions | 3-position |
| Detent | Steel-ball detent (positive position feel) |
| Mounting / Terminal | Through-hole PCB, top-mount slide, 8 terminals |
| Body Size | 15.1 × 6.3 × 6.2 mm |
| Rated Current / Voltage | 50 V DC, 0.3 A |
| Operating Force | 250 ± 100 gf |
| Travel | 2 ± 0.2 mm |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 500 VAC, 1 min |
| Operation Life | 10,000 cycles |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –25 °C to +70 °C |
| Contact Material | Phosphor bronze (C5210), silver-clad |
| Terminal Material | Brass, silver-plated |
| Housing Material | Steel frame (nickel-plated), POM knob, phenolic base |
| RoHS | Compliant |
| Compliance | ISO 9001 & ISO 14001 certified facility |
| Packaging | Bag |
Typical Applications
This top-mount DP3T slide switch handles three-way mode selection with the actuator accessed from above: consumer electronics, audio equipment, industrial control boards, and test instruments. The steel-ball detent holds each position for a positive feel.

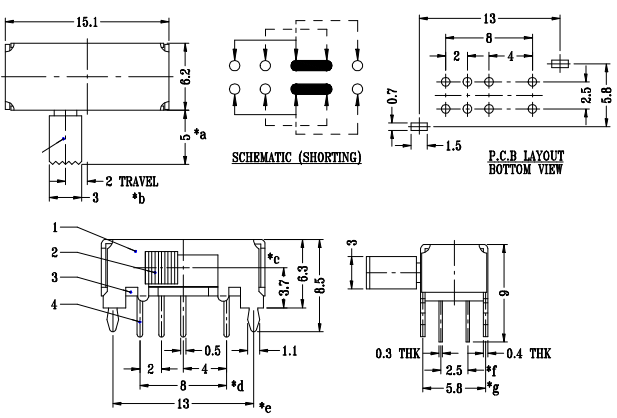

MECHANICAL DRAWING
Units: mm
General tolerance: ±0.3mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Frame |
Steel strip |
1 |
Ni plating (≥1.5um) |
2 |
Knob |
POM |
1 |
Black |
3 |
Base |
Phenolic resin |
1 |
Natural |
4 |
Terminal |
Brass strip |
8 |
Ag plating (≥0.1um) |
5 |
Contact clip |
PBS C5210 |
2 |
Ag clad (≥0.1um) |
6 |
Spring |
Wire |
1 |
Natural |
7 |
Steel ball |
Steel |
1 |
Natural |
All Switches Categories
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
