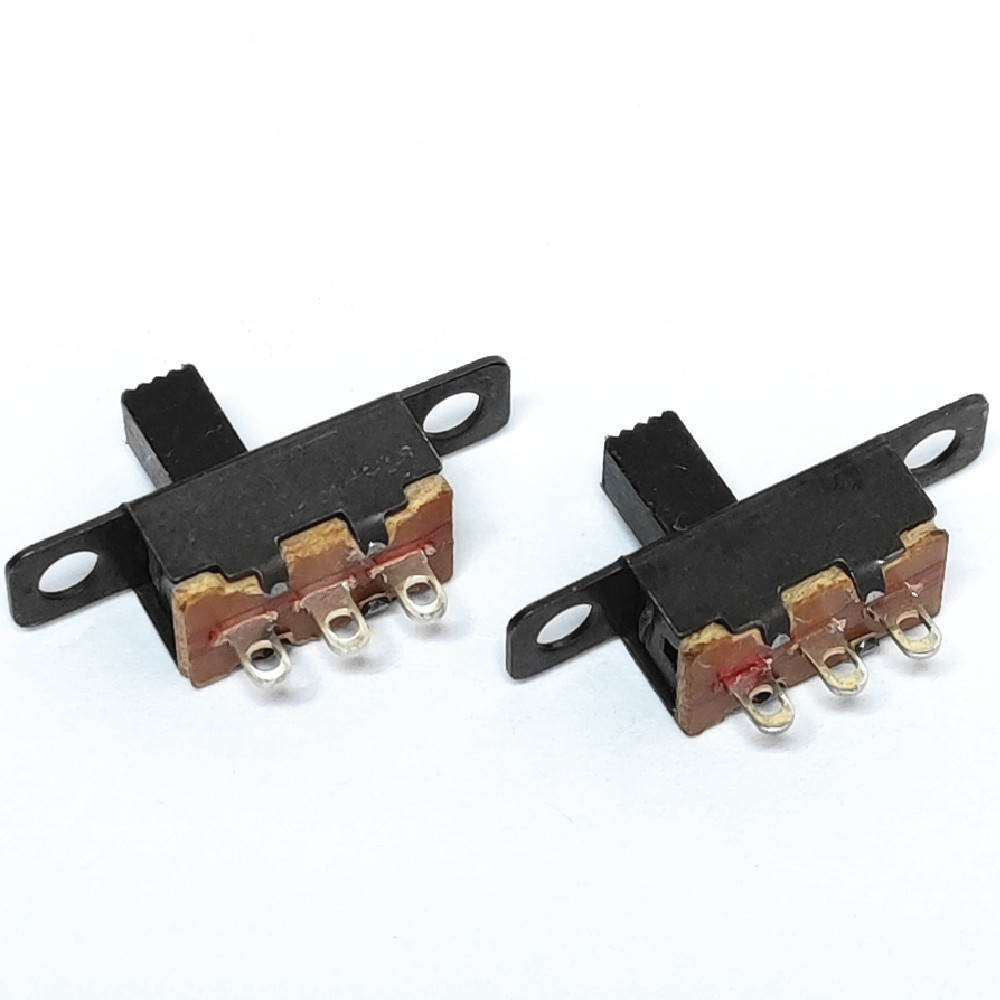

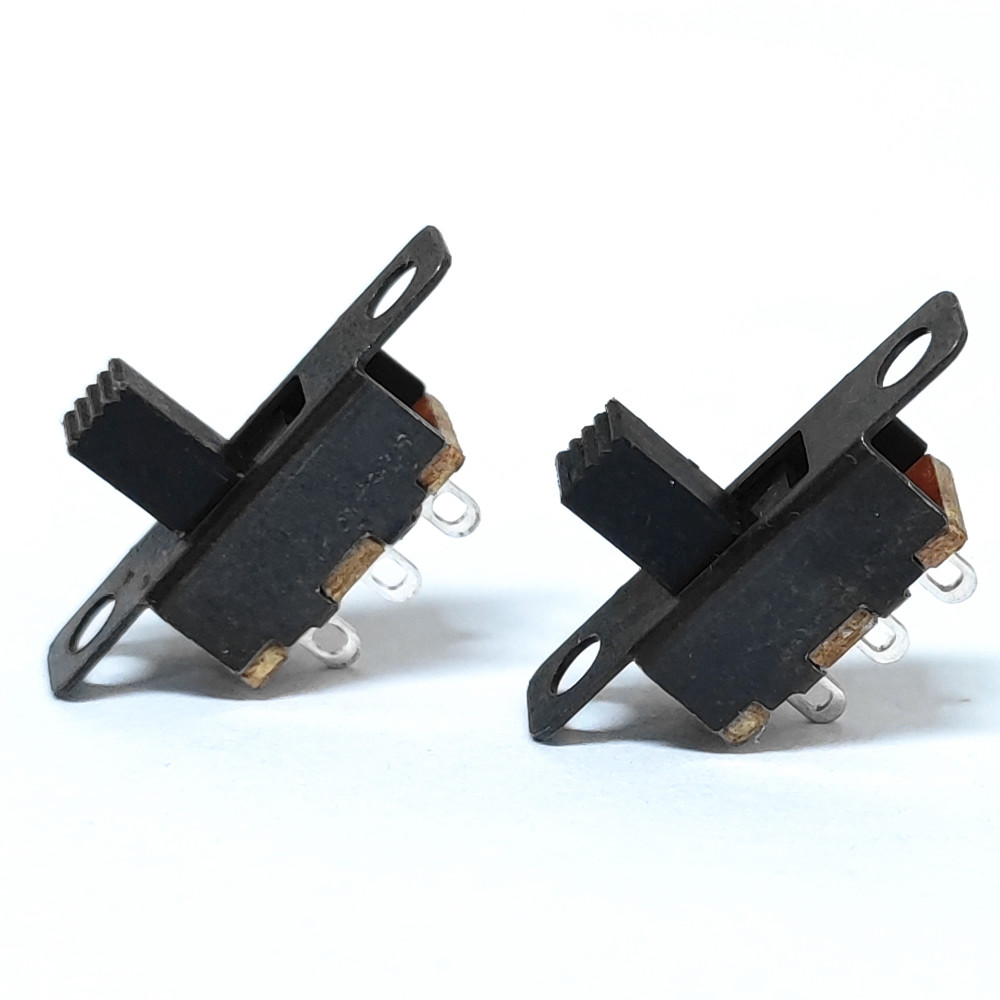

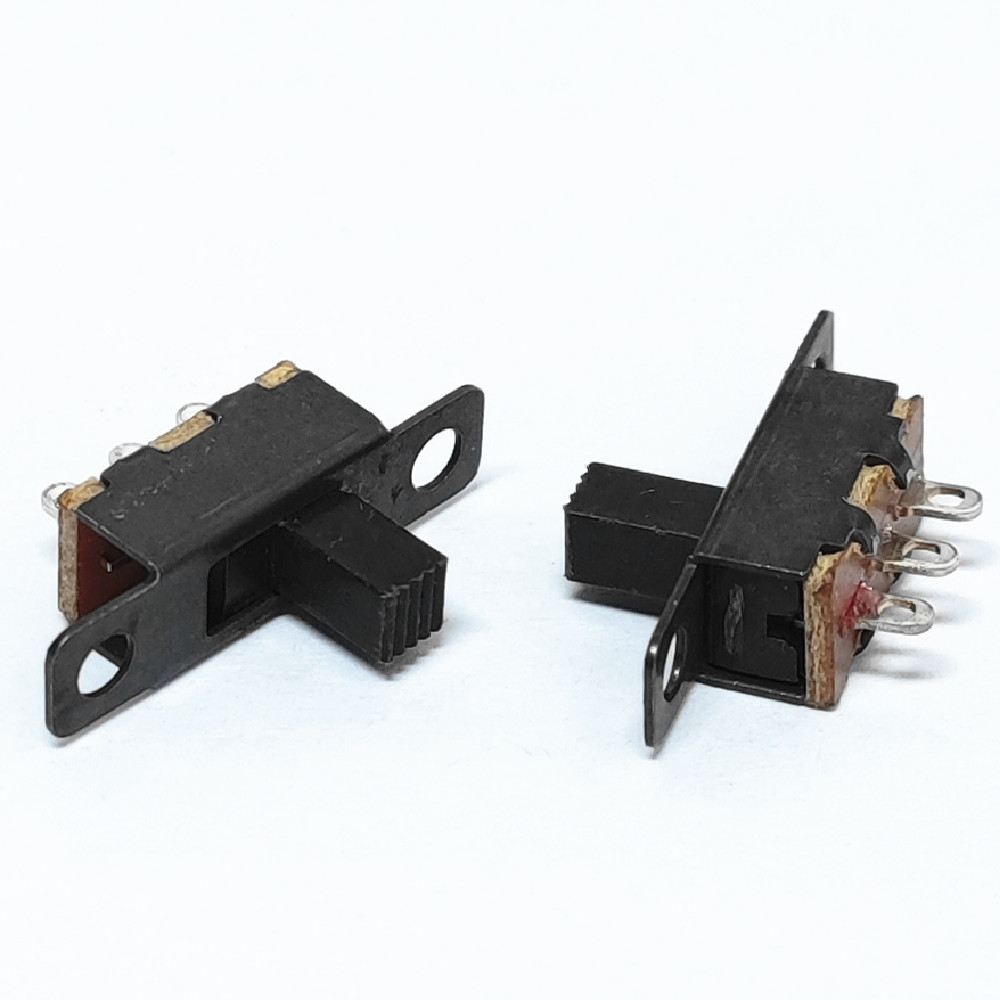

DC50V 0.5A Black Metal Slide Switch 1P2T
Part Number: SS12F15-EG6-DC1
The SS12F15-EG6-DC1 is a compact SPDT (1P2T) metal-frame slide switch with through-hole PCB terminals, rated 50 V DC / 0.3 A. It offers two-position switching, a nickel-plated steel frame, and 10,000-cycle operation life. ISO 9001 and ISO 14001 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- SPDT (1P2T) 2-position switching, rated 50 V DC / 0.3 A
- Nickel-plated steel frame with a POM knob
- Through-hole PCB terminals with three solder pins
- 180 ± 100 gf side-slide force, 3.0 ± 0.3 mm travel
- 250 V AC dielectric strength, 10,000-cycle operation life
Applications
SPECIFICATIONS
| Part Number | SS12F15-EG6-DC1 |
|---|---|
| Switch Type | Slide switch (mechanical) |
| Contact Form | SPDT (1P2T, 1 pole 2 throw) |
| Positions | 2-position |
| Mounting / Terminal | Through-hole PCB, side slide, 3 terminals |
| Body Size | 19.5 × 5.8 × 5 mm |
| Rated Current / Voltage | 50 V DC, 0.3 A |
| Operating Force | 180 ± 100 gf (side push) |
| Travel | 3.0 ± 0.3 mm |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 250 VAC, 1 min |
| Operation Life | 10,000 cycles |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +90 °C |
| Contact Material | Brass, silver-plated |
| Terminal Material | Brass, silver-plated |
| Housing Material | Steel frame (nickel-plated), POM knob, phenolic base |
| RoHS | Compliant |
| Compliance | ISO 9001 & ISO 14001 certified facility |
| Packaging | Bag |
Typical Applications
This metal-frame SPDT slide switch handles on/off and mode selection on PCBs: consumer electronics, audio equipment, portable devices, and instrumentation. The nickel-plated steel frame gives a firm mechanical hold, and the through-hole pins solder directly to the board.

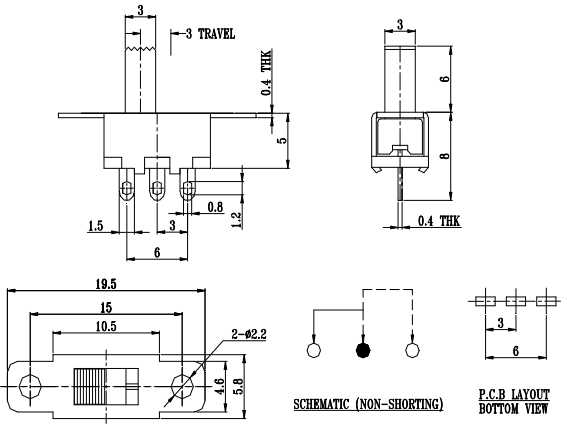

MECHANICAL DRAWING
Units: mm
General tolerance: ±0.3mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Knob |
POM |
1 |
Black |
2 |
Frame |
Steel strip |
1 |
Ni plated |
3 |
Base |
Phenolic resin |
1 |
Natural |
4 |
Terminal |
Brass strip |
3 |
Ag plated |
5 |
Contact |
Brass strip |
1 |
Ag plated |
6 |
Spring |
Steel wire |
1 |
Natural |
All Switches Categories
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
