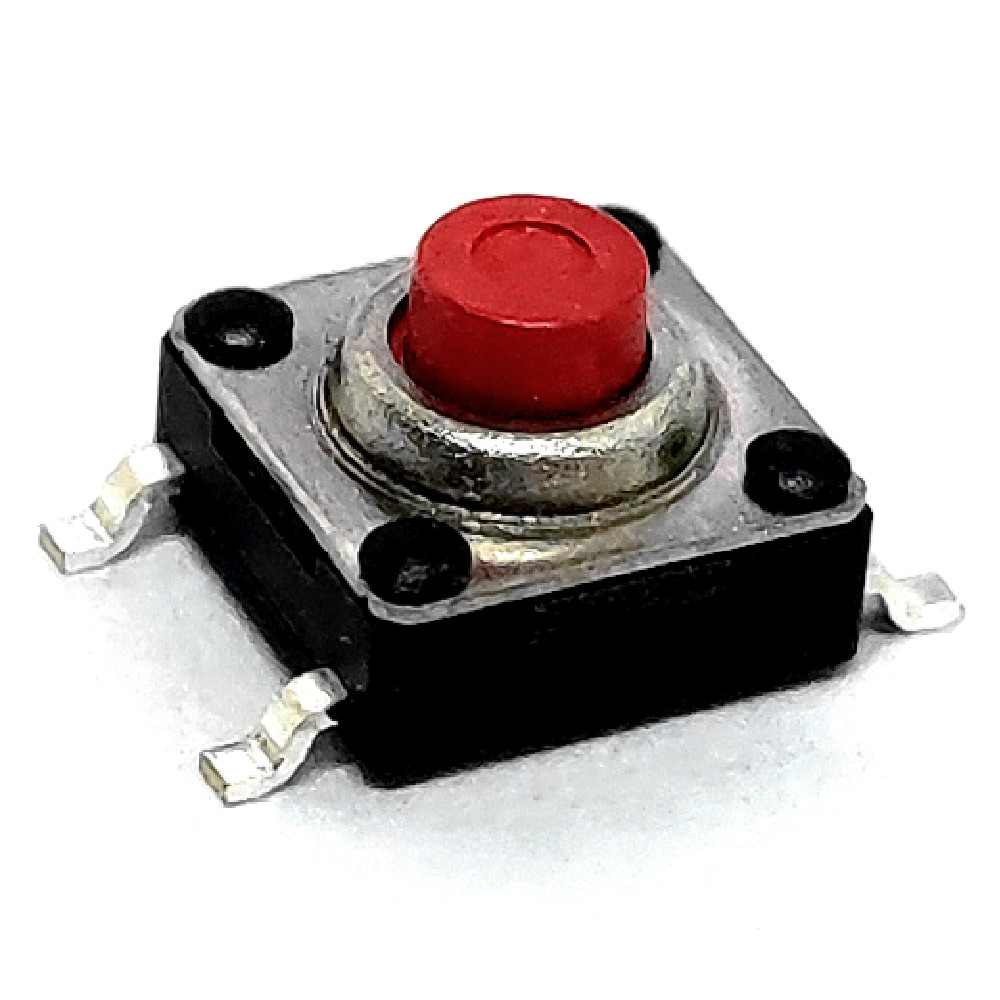

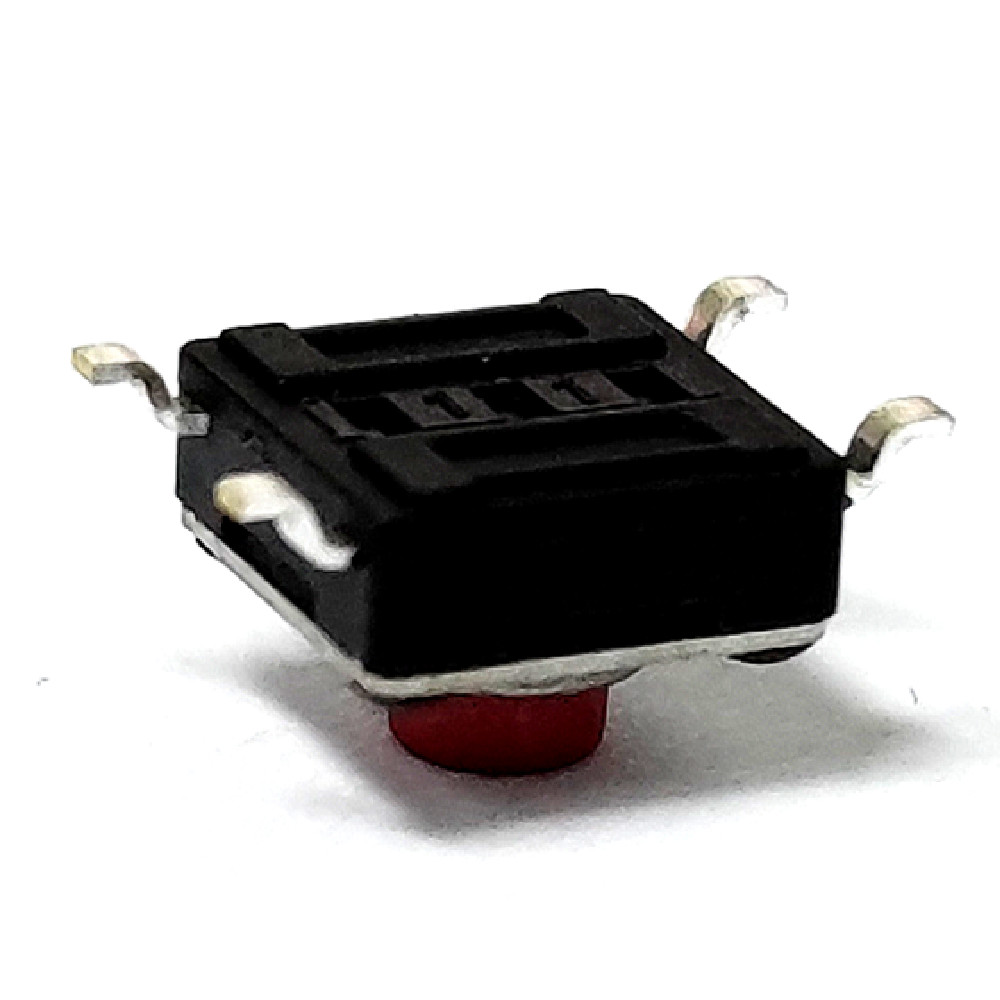

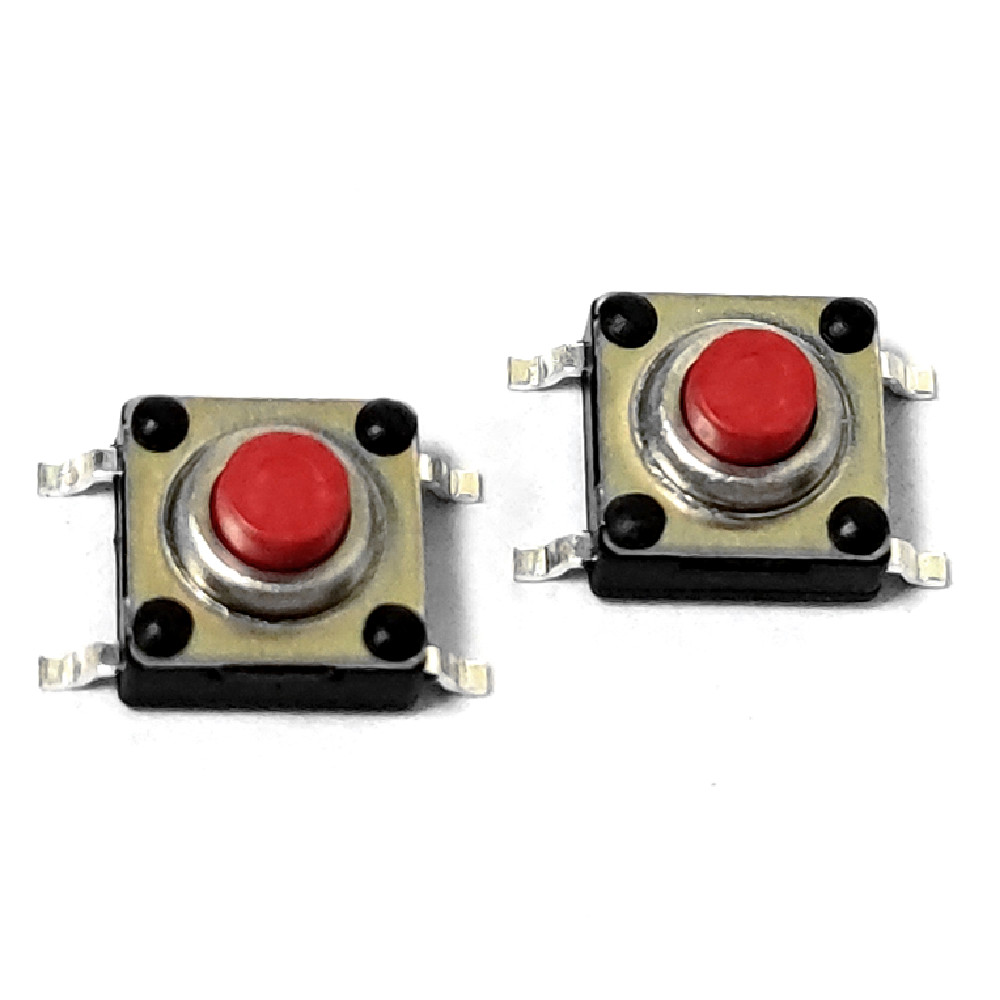

6mm Ip67 Waterproof Normally Open Tact Switch
Part Number: KAN0645A-0502C1-C15
The KAN0645A-0502C1-C15 is a 6 × 6 × 5 mm surface-mount momentary tact switch with a normally-open (SPST-NO) circuit and an IP67 dust- and water-resistant seal. It surface-mounts to a PCB, delivers crisp tactile feedback at 260 gf, and is rated for 100,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- IP67-rated seal verified by 1 m, 30 min immersion testing
- Normally-open (SPST-NO) momentary action, top-actuated
- 6 × 6 mm body, 5 mm height, surface-mount
- 260 ± 70 gf operating force, 0.30 mm travel for a defined tactile click
- 100,000-cycle rated life, –20 °C to +70 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN0645A-0502C1-C15 |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO, normally open) |
| Mounting Style | Surface-mount (SMD) |
| IP Rating | IP67 (1 m immersion, 30 min) |
| Body Size | 6.0 × 6.0 × 5.0 mm |
| Operating Force | 260 ± 70 gf |
| Travel | 0.30 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms (ON / OFF) |
| Electrical Life | 100,000 cycles |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Housing Material | PPA |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel |
Typical Applications
This normally-open 6 × 6 mm tact switch with IP67 protection suits sealed keypads and exposed control panels: outdoor equipment, industrial control, consumer electronics, and automotive interfaces. The silicone seal keeps water and dust off the contacts while the top-actuated stem gives a clean, defined press.

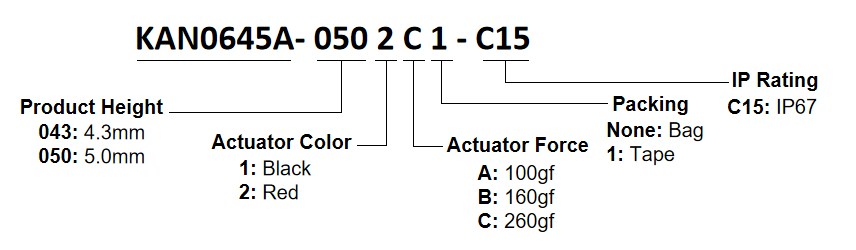

PART NUMBER KEY

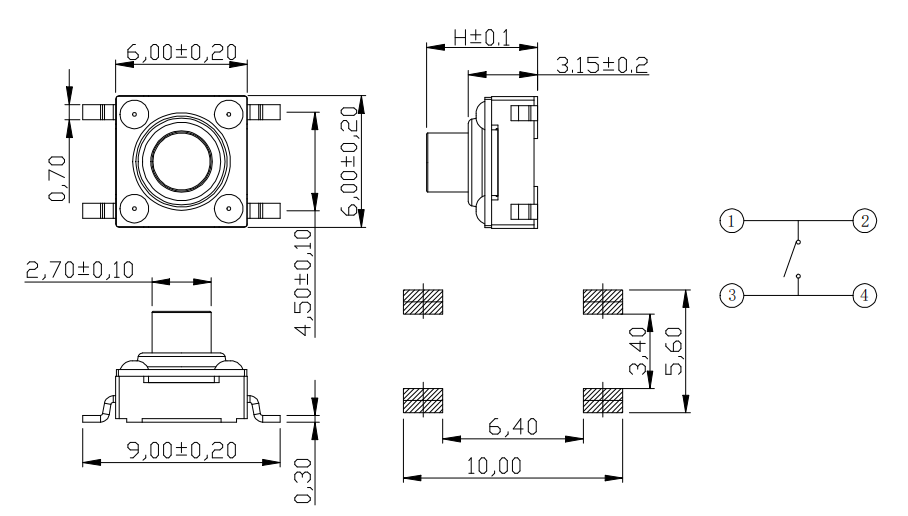

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Silver plating |
2 |
Case |
PPA |
1 |
Black |
3 |
Contact |
SUS |
1 |
Ag plating |
4 |
Waterproof silicone |
Silicone |
1 |
Black |
5 |
Cover |
SUS |
1 |
|
6 |
Stem |
PPA |
1 |
Red |
| ILLumination |
No |
|---|---|
| IP Rating |
IP67 |
| Height (mm) |
5 |
| Length (mm) |
6 |
| Width (mm) |
6 |
