6*6*5 Tact Switch with Bracket
Part Number: KAN0631-0501B

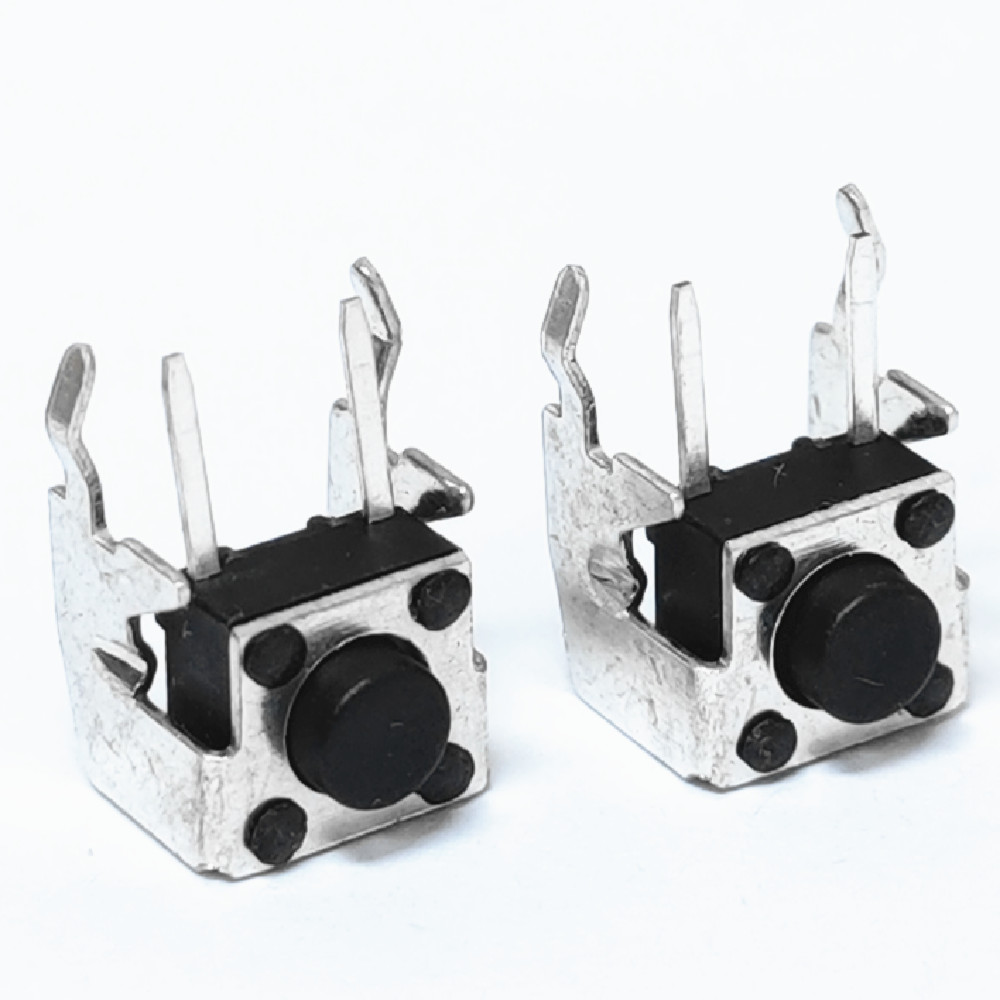

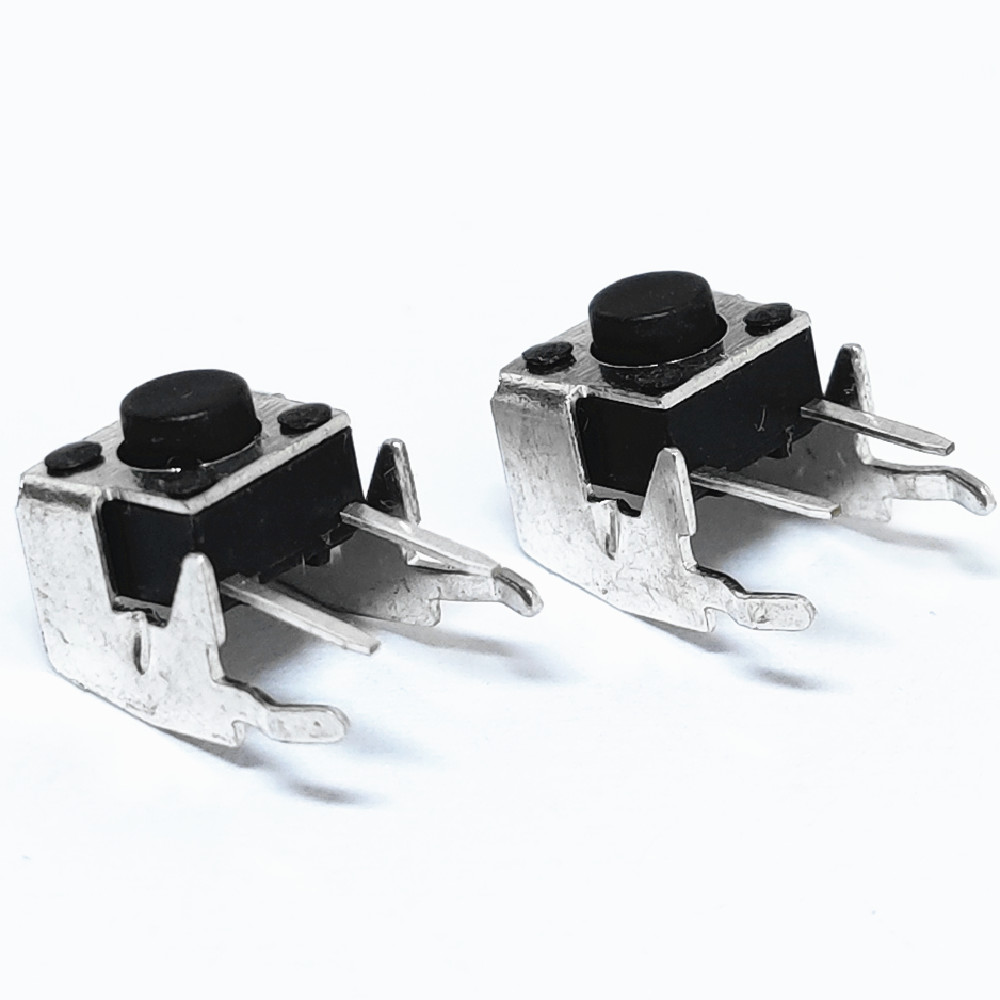

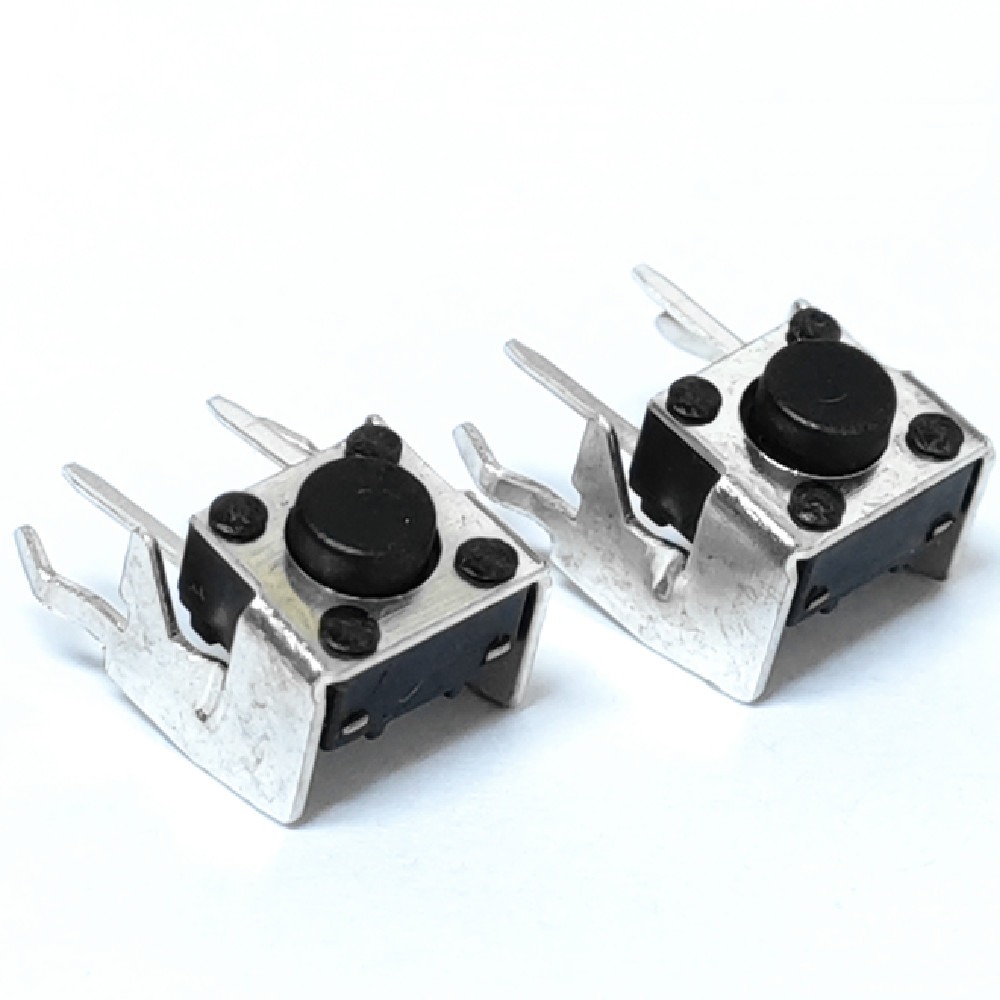

The KAN0631-0501B is a right-angle 6 × 6 × 5 mm tactile switch with a steel mounting bracket and a 160 gf momentary action, rated for 80,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Right-angle 6 × 6 × 5 mm body with a steel mounting bracket
- 160 ±50 gf actuation with 0.25 mm travel
- 80,000-cycle rated electrical life
- Phosphor-bronze contacts, silver-plated, ≤100 mΩ contact resistance
- Operating range –30 °C to +80 °C, storage –40 °C to +90 °C
Applications
SPECIFICATIONS
| Part Number | KAN0631-0501B |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Right-angle, through-hole, with metal bracket |
| Body Size | 6.0 × 6.0 × 5.0 mm |
| Operating Force | 160 ± 50 gf |
| Travel | 0.25 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Stem Strength | 20 N min |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms (ON / OFF) |
| Electrical Life | 80,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | PA66 |
| Contact Material | Phosphor bronze, silver-plated |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | 1,000 pcs/bag, 40,000 pcs/carton |
Typical Applications
This right-angle tact switch with a metal bracket mounts board-edge buttons that face outward from a chassis, with the bracket adding mechanical hold for repeated presses: consumer electronics, office equipment, home appliances, and industrial control panels. The right-angle body places the actuator parallel to the PCB for front-panel access.

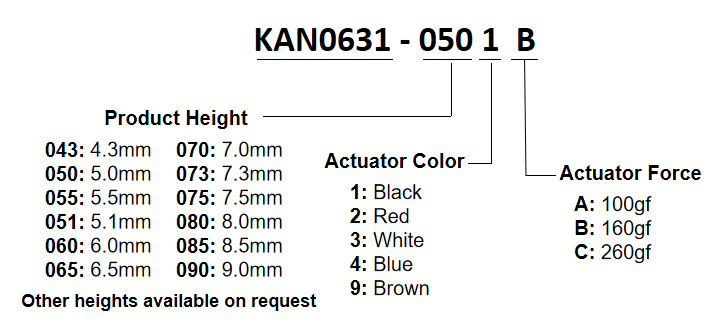

PART NUMBER KEY

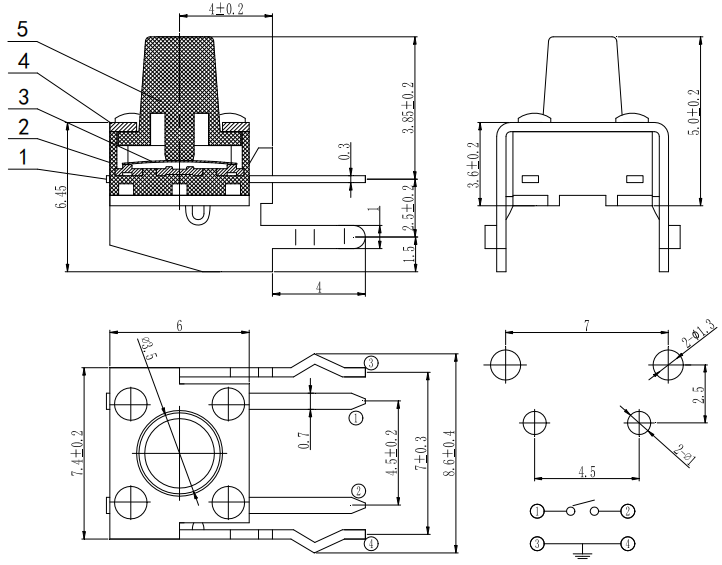

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Silver Plating |
2 |
Case |
PA66 |
1 |
Black |
3 |
Contact |
Phosphor bronze |
1 |
Ag Plating |
4 |
Cover |
SPCC |
1 |
CuSn plating |
5 |
Stem |
PA66 |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
5 |
| Length (mm) |
6 |
| Width (mm) |
6 |
