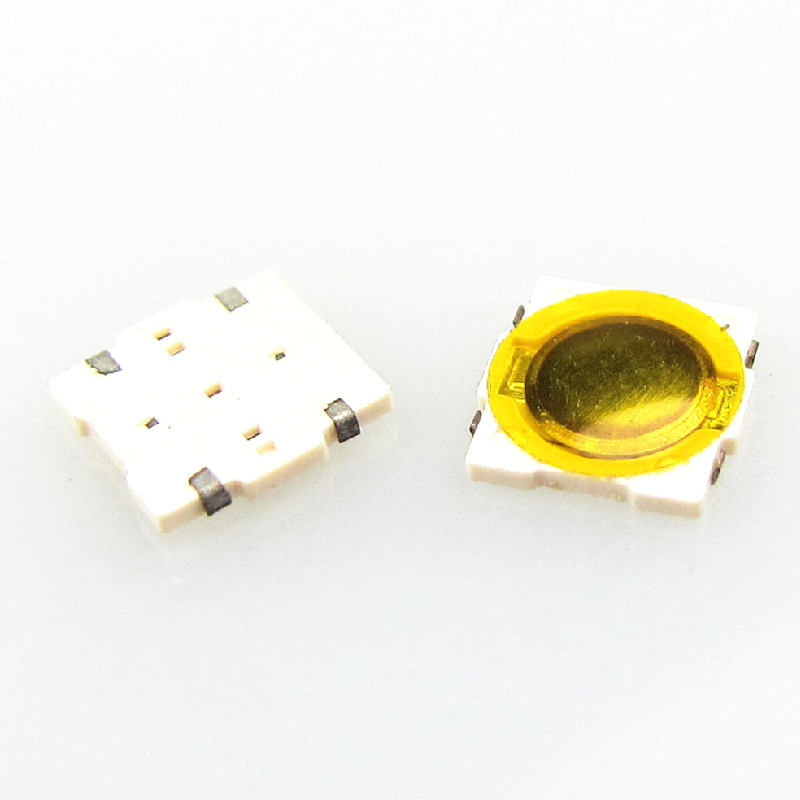

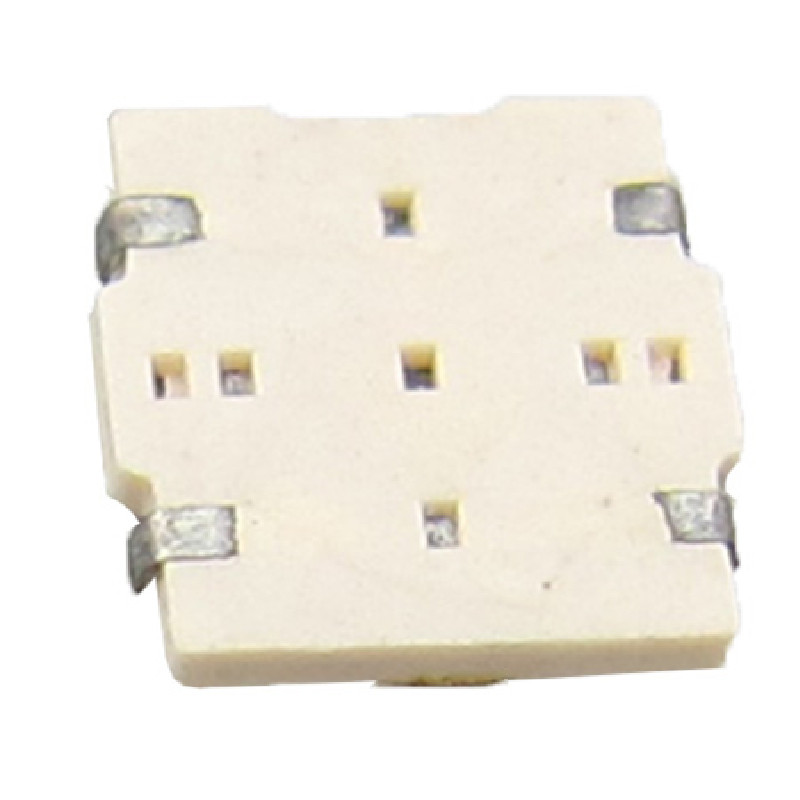

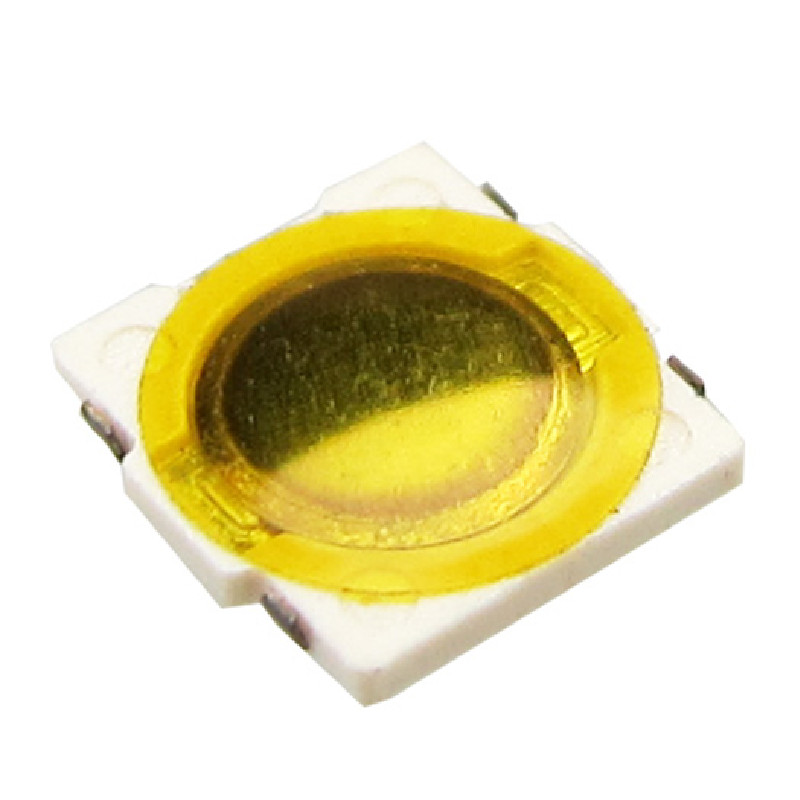

5*5mm Micro Momentary Tactile Membrane Switch
Part Number: KAN0545-B1-13
The KAN0545-B1-13 is a 4.8 × 4.8 × 0.6 mm surface-mount membrane tact switch with an ultra-low 0.6 mm profile and a polyimide film over the contact. It surface-mounts to a PCB, delivers a light tactile press at 160 gf, and is rated for 50,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Ultra-low 0.6 mm profile for thin, space-constrained assemblies
- Polyimide-film membrane over the contact, no protruding stem
- 4.8 × 4.8 mm footprint, surface-mount
- Light 160 ± 50 gf press with a short 0.20 mm travel
- 50,000-cycle rated life, –30 °C to +80 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN0545-B1-13 |
|---|---|
| Switch Type | Tactile switch (membrane, momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD) |
| Body Size | 4.8 × 4.8 × 0.6 mm |
| Operating Force | 160 ± 50 gf |
| Travel | 0.20 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms |
| Electrical Life | 50,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | LCP |
| Contact Material | SUS, silver-plated |
| Terminal Material | Phosphor copper, silver-plated |
| Film | Polyimide |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel |
Typical Applications
This ultra-thin membrane tact switch fits assemblies where board-to-surface height is tight: consumer electronics, mobile devices, wearables, and remote controls. The 0.6 mm profile and polyimide-film membrane give a light, low-travel press with no protruding stem.

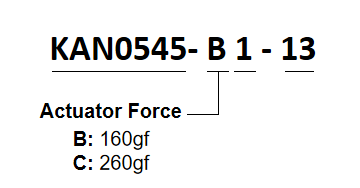

PART NUMBER KEY

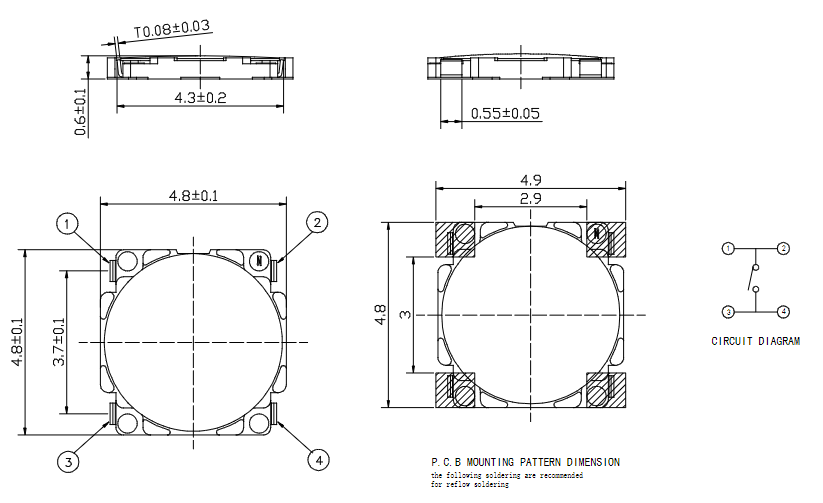

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Phosphor Copper |
1 |
Ag plating |
2 |
Case |
LCP |
1 |
White |
3 |
Contact |
SUS |
1 |
Ag plating |
4 |
Film |
PI |
1 |
Yellow |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
0.6 |
| Length (mm) |
4.8 |
| Width (mm) |
4.8 |
