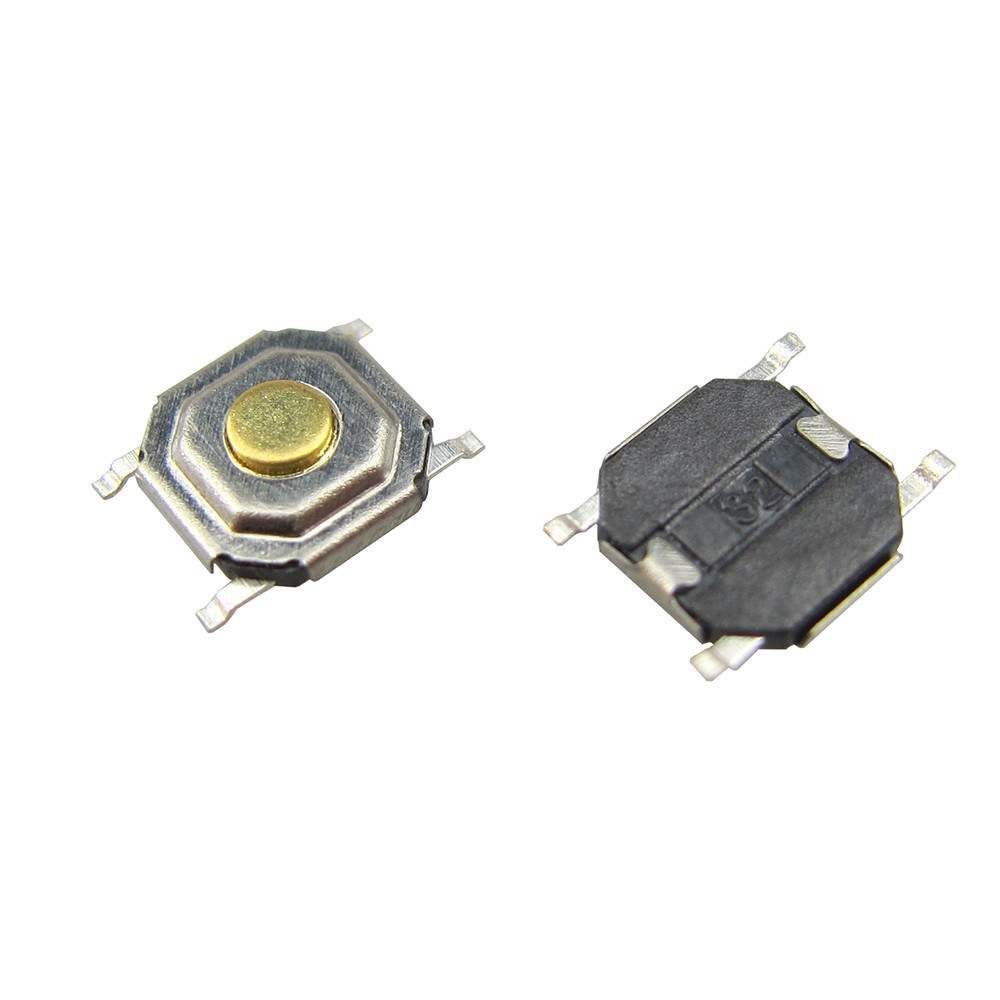

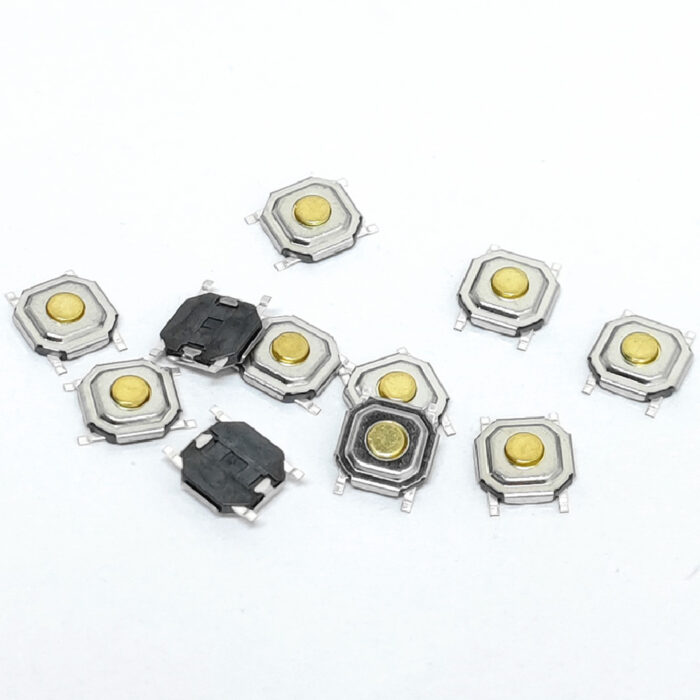

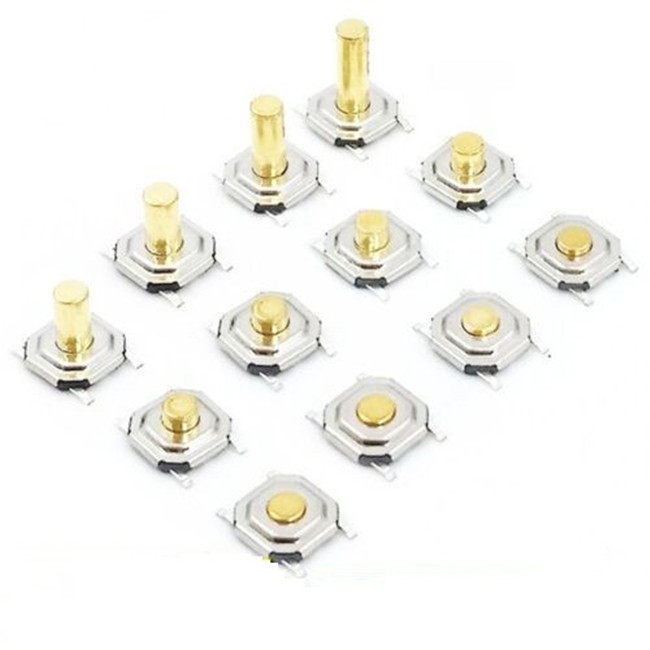

4 Pin Tact Switch SMD Brass Push Button
Part Number: KAN0542A-0155B1-14
The KAN0542A-0155B1-14 is a 5.2 × 5.2 × 1.5 mm surface-mount tact switch with a brass push-button stem and a 4-pin footprint. It surface-mounts to a PCB, gives a light press at 160 gf, and is rated for 500,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Brass push-button stem for a durable, defined press
- 5.2 × 5.2 mm footprint, 1.5 mm low profile, 4-pin surface-mount
- Light 160 ± 50 gf press with a short 0.20 mm travel
- 500,000-cycle rated life for high-duty interfaces
- –30 °C to +80 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN0542A-0155B1-14 |
|---|---|
| Switch Type | Tactile switch (momentary push-button) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD), 4-pin |
| Body Size | 5.2 × 5.2 × 1.5 mm |
| Operating Force | 160 ± 50 gf |
| Travel | 0.20 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms |
| Electrical Life | 500,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | LCP |
| Contact Material | SUS, silver-plated |
| Terminal Material | Phosphor bronze, silver-plated |
| Stem | Brass |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel |
Typical Applications
This brass push-button tact switch gives a durable, defined press over a long 500,000-cycle life, suiting high-duty interfaces: consumer electronics, audio equipment, industrial control, and automotive controls. The metal stem holds up to repeated actuation better than a plastic plunger.

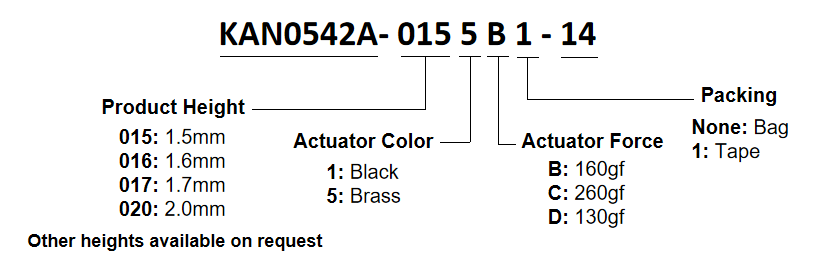

PART NUMBER KEY

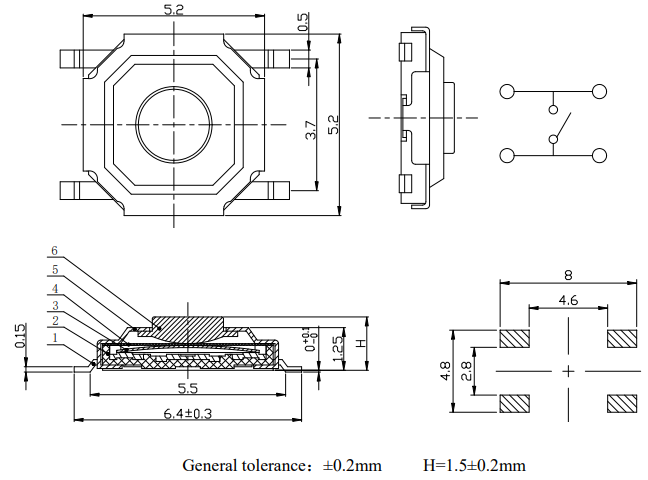

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Phosphor bronze |
1 |
Silver plating |
2 |
Case |
LCP |
1 |
Black |
3 |
Contact |
SUS |
1 |
Ag plating |
4 |
PI |
PI |
1 |
Yellow |
5 |
Cover |
SUS |
1 |
|
6 |
Stem |
Brass |
1 |
Yellow |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
1.5 |
| Length (mm) |
5.2 |
| Width (mm) |
5.2 |
