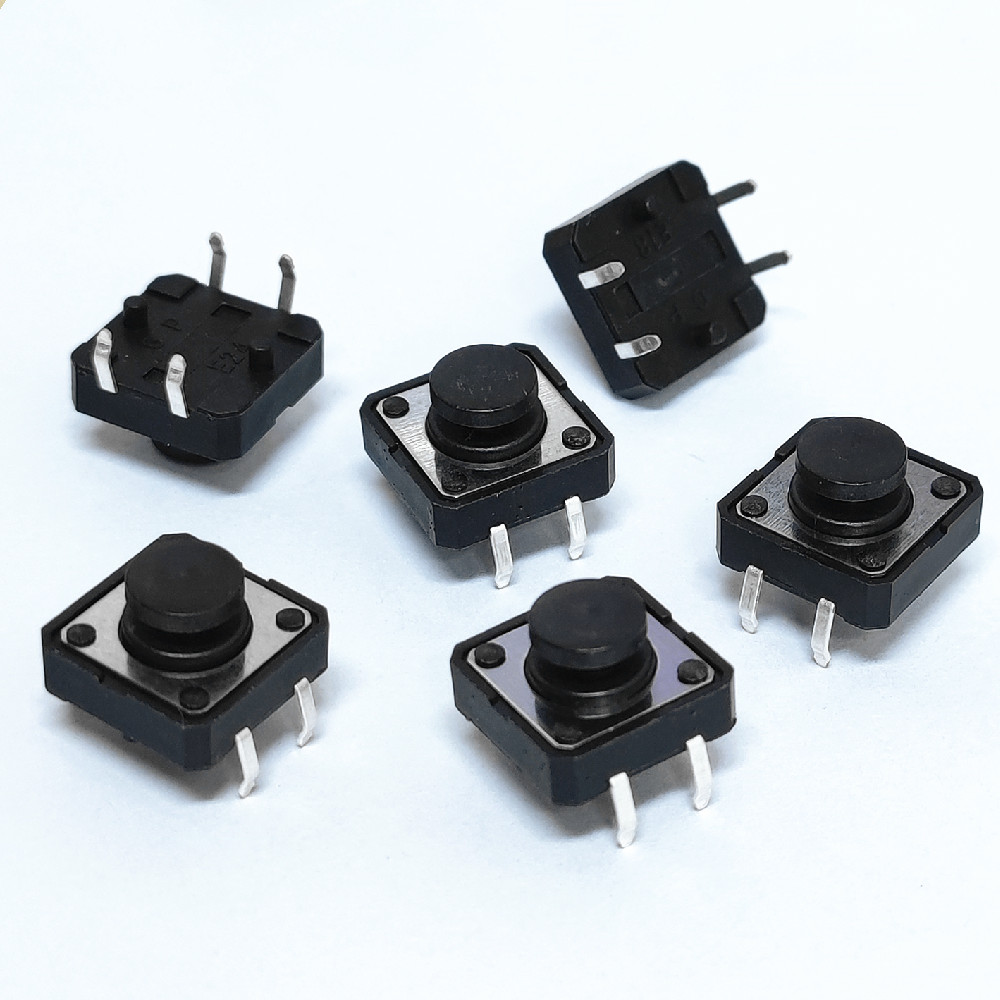

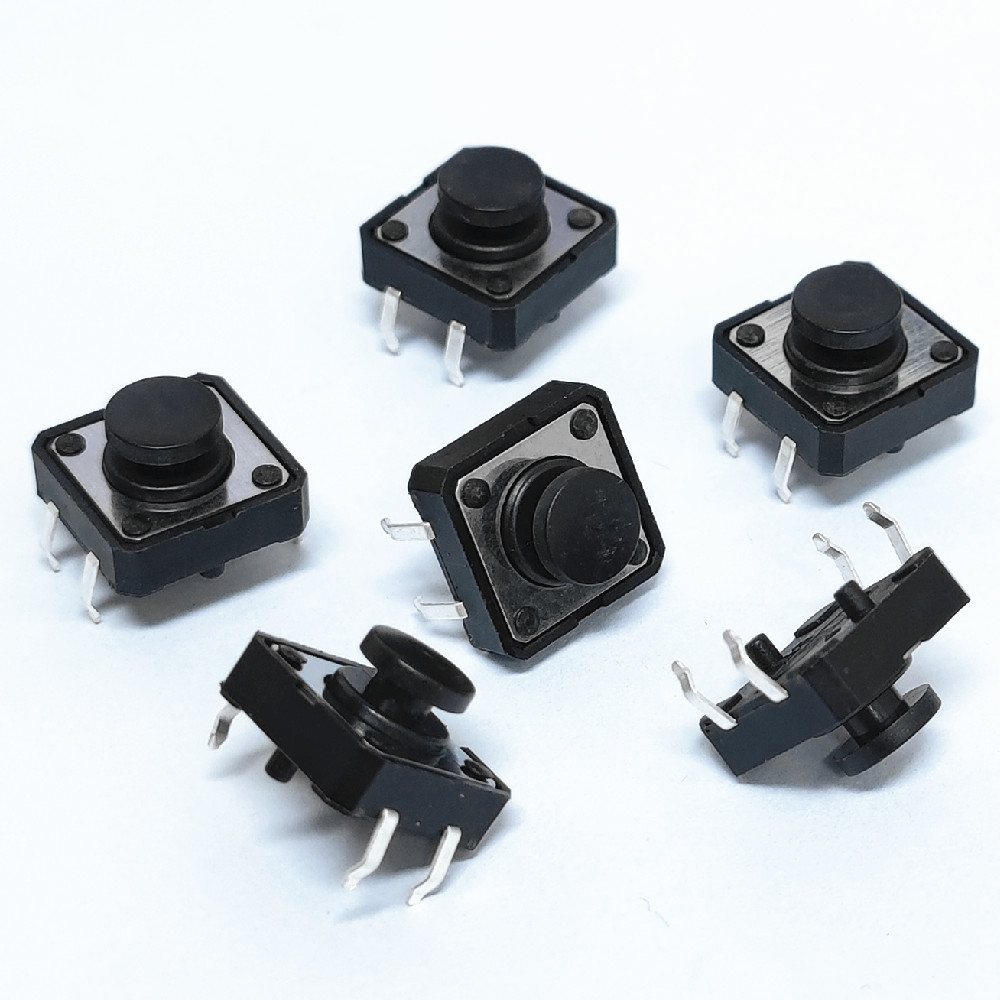

4 Pin Long Life 12x12x7.3 Touch Switch
Part Number: KAN1211B-0731B100-B2942
The KAN1211B-0731B100-B2942 is a long-life 12 × 12 mm through-hole tactile switch with a mushroom-head actuator and an ABS stem, rated for 1,000,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Long-life design rated for 1,000,000 operating cycles
- Mushroom-head actuator on a 12 × 12 mm through-hole body
- 0.30 mm travel with 20 N stem pull-out strength
- Stainless-steel (SUS) contacts, silver-plated, ≤100 mΩ; ABS stem
- Operating range –30 °C to +80 °C, storage –40 °C to +90 °C
Applications
SPECIFICATIONS
| Part Number | KAN1211B-0731B100-B2942 |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Through-hole (THT), 4-pin |
| Body Size | 12.0 × 12.0 × 7.3 mm |
| Operating Force | 160 ±50 gf |
| Travel | 0.30 ±0.1 mm |
| Return Force | 20 gf (min) |
| Stop Strength | 30 N |
| Stem Strength | 20 N (min) |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms, on and off |
| Electrical Life | 1,000,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | PA66 |
| Contact Material | Stainless steel (SUS), silver-plated |
| Terminal Material | Brass, silver-plated |
| Stem | ABS |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
Rated for 1,000,000 cycles, the KAN1211B is aimed at high-use keypads and control panels in industrial control and consumer electronics. The mushroom-head actuator also suits office equipment and security systems where buttons see heavy repeated input.

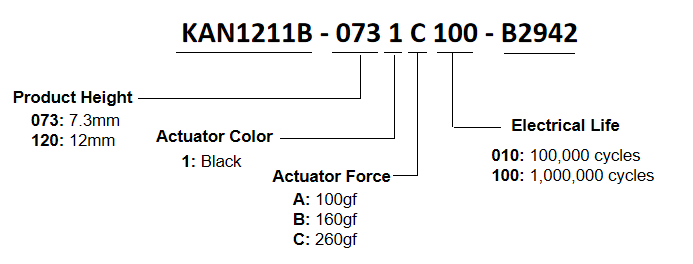

PART NUMBER KEY

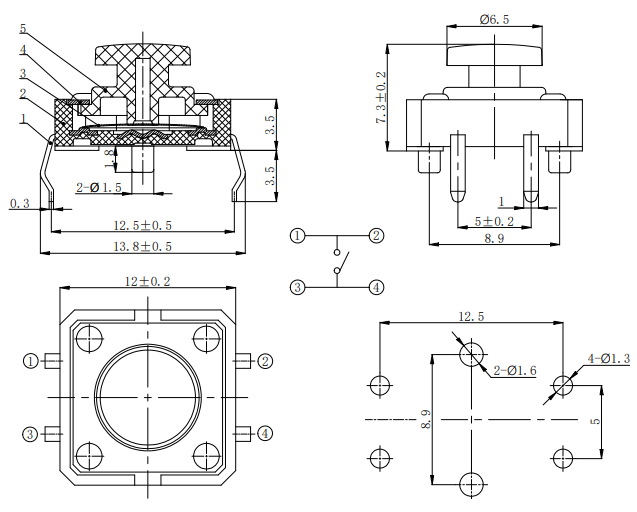

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Teminal |
Brass |
1 |
Sliver plating |
2 |
Case |
PA66 |
1 |
Black |
3 |
Contact |
SUS |
1 |
Ag plating |
4 |
Cover |
SUS |
1 |
|
5 |
Stem |
ABS |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
7.3 |
| Length (mm) |
12 |
| Width (mm) |
12 |
