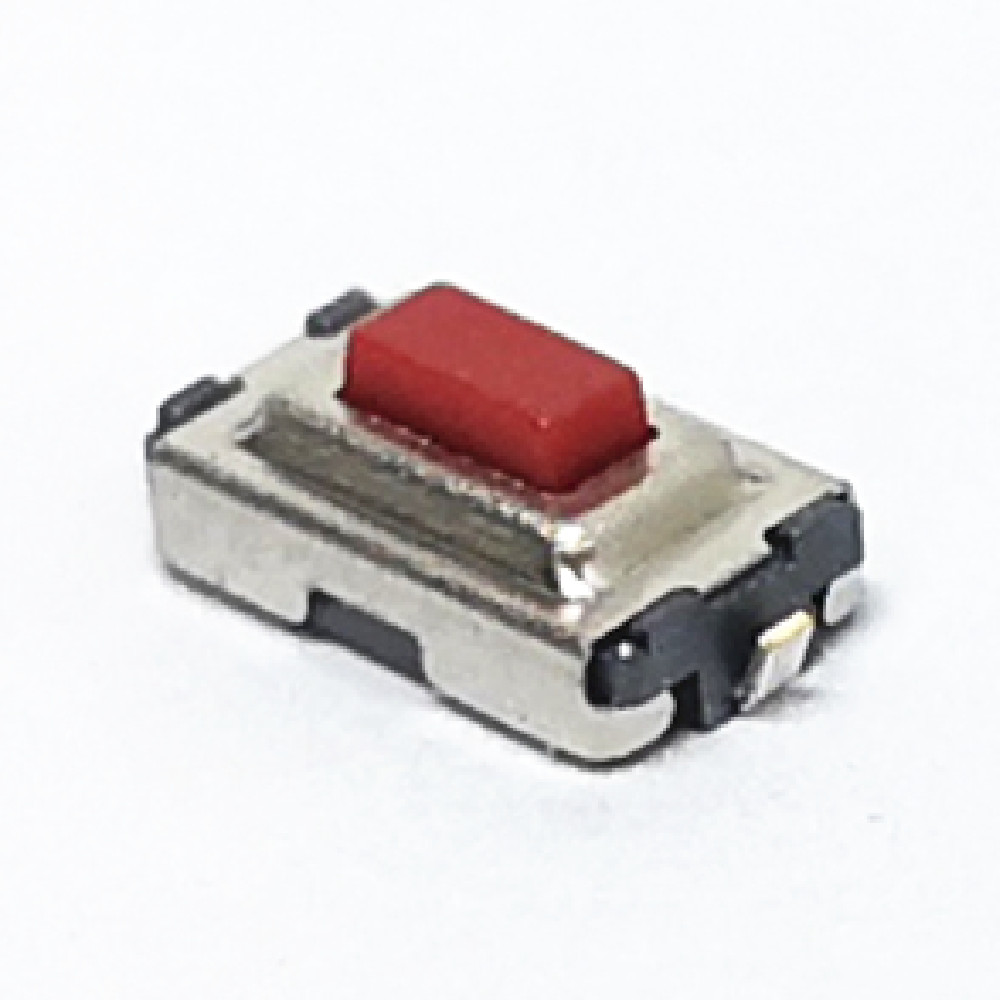

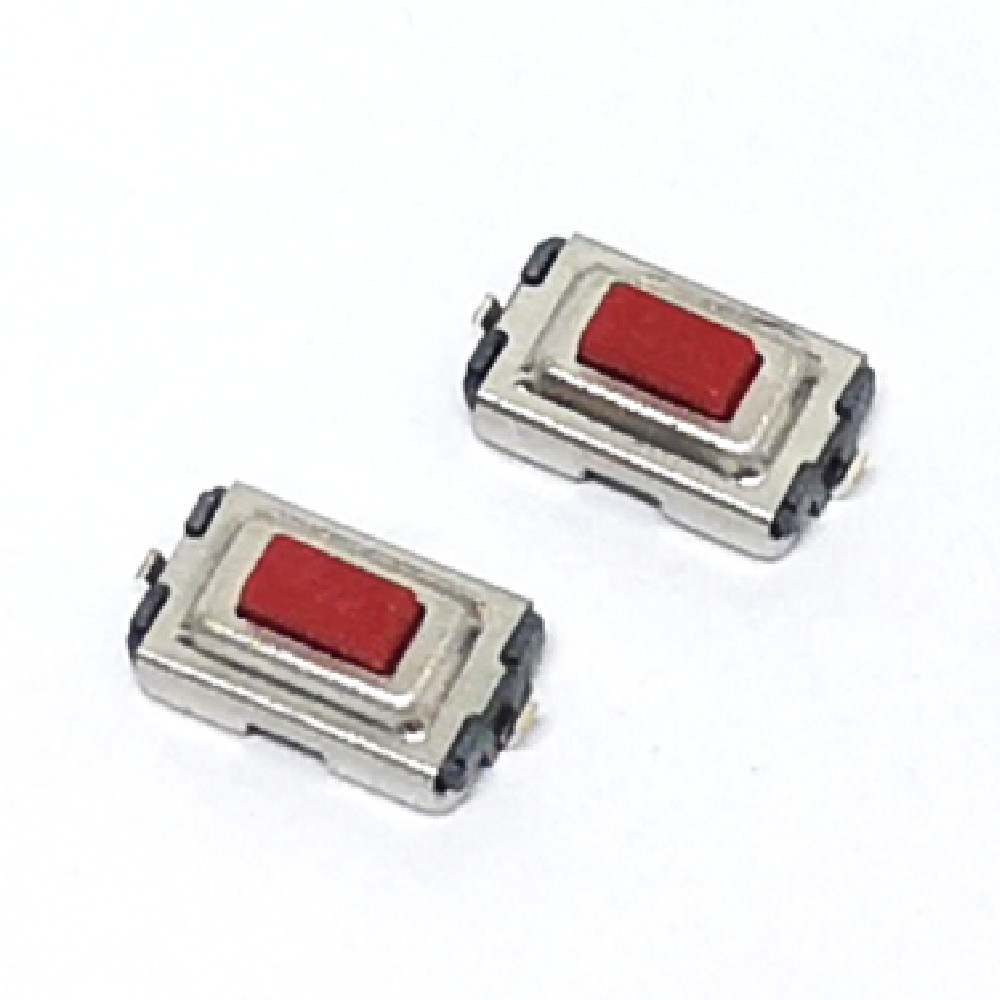

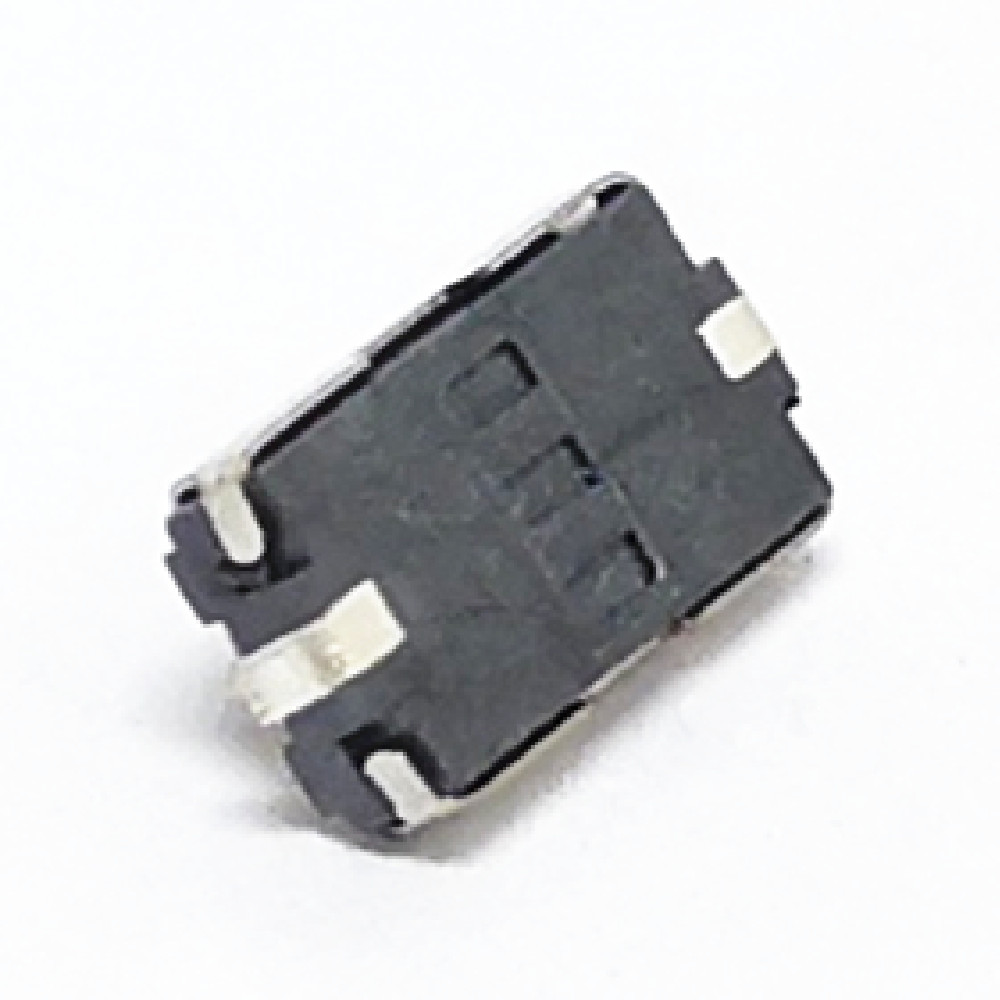

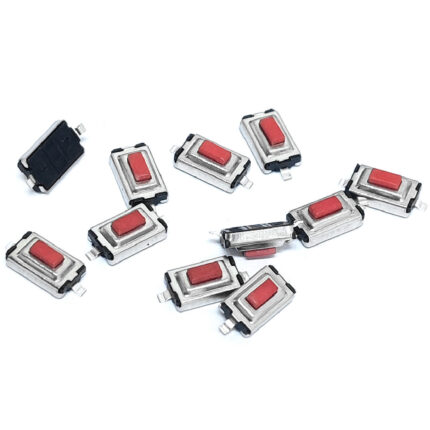

3x6mm J Bend 2 pin Smd Tact Switch
Part Number: KAN0441U-0252B1-14
The KAN0441U-0252B1-14 is a 6 × 3.7 × 2.5 mm surface-mount tact switch with J-bend terminals and a 2-pin layout. It surface-mounts to a PCB, gives a light press at 160 gf, and is rated for 40,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- J-bend terminals for a strong, inspectable solder joint
- Compact 3 × 6 mm form factor, 2.5 mm height, 2-pin
- Light 160 ± 50 gf press with a 0.25 mm travel
- Red PPA stem for clear cap keying
- –30 °C to +80 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN0441U-0252B1-14 |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD), J-bend, 2-pin |
| Body Size | 6.0 × 3.7 × 2.5 mm |
| Operating Force | 160 ± 50 gf |
| Travel | 0.25 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Stem Strength | 20 N min |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms |
| Electrical Life | 40,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | LCP |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| Stem | PPA |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel |
Typical Applications
This J-bend 2-pin tact switch gives a strong, inspectable solder joint in a compact 3 × 6 mm body, suiting consumer electronics, mobile devices, remote controls, and home appliances. The J-bend leads suit assemblies where joint inspection and mechanical hold matter.

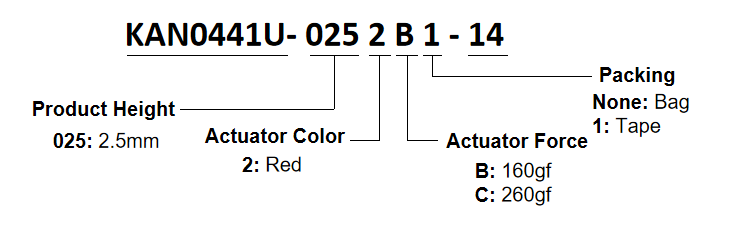

PART NUMBER KEY

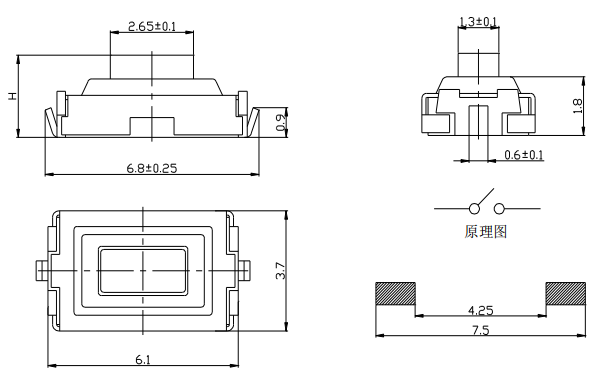

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Silver plating |
2 |
Case |
LCP |
1 |
Black |
3 |
Contact |
SUS |
1 |
Ag plating |
4 |
PI |
PI |
1 |
Yellow |
5 |
Cover |
SUS |
1 |
|
6 |
Stem |
PPA |
1 |
Red |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
2.5 |
| Length (mm) |
6 |
| Width (mm) |
3.7 |
