3 pin ul Right Angle Micro Switch Types
Part Number: G15-06DM-150-1238

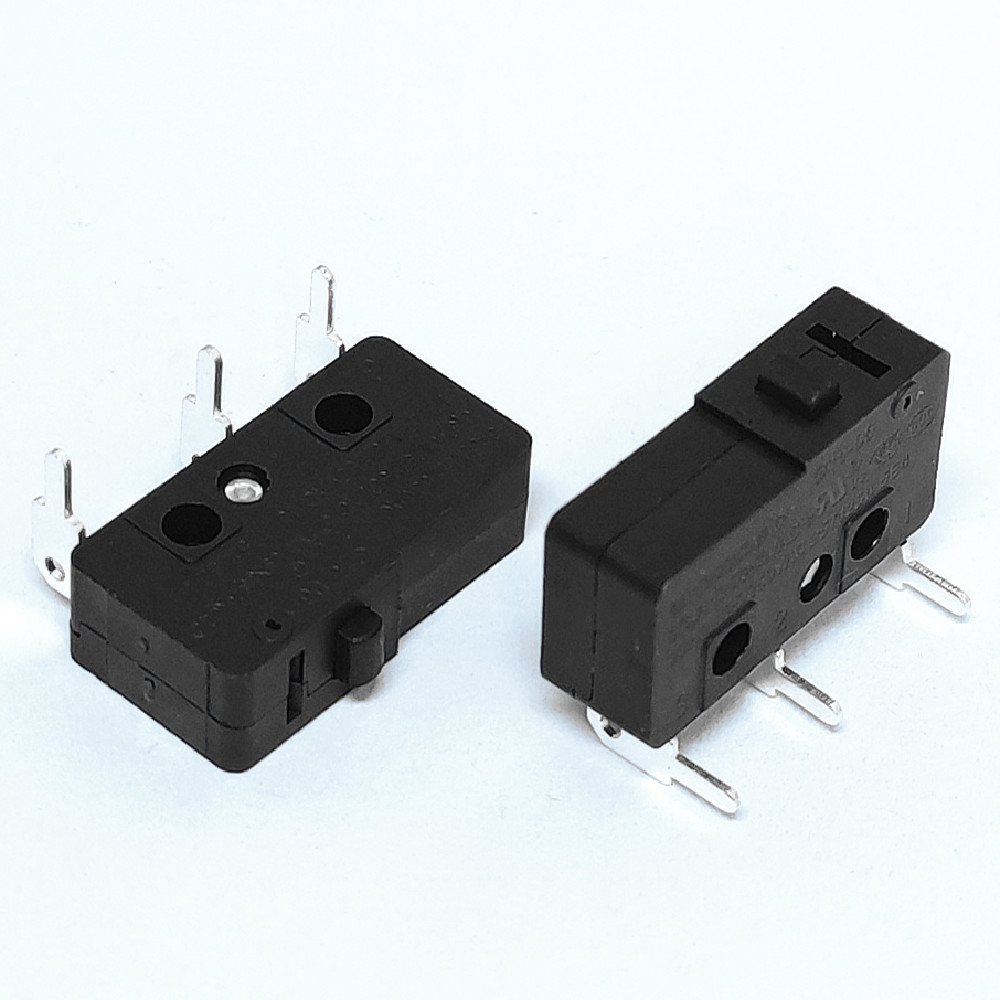

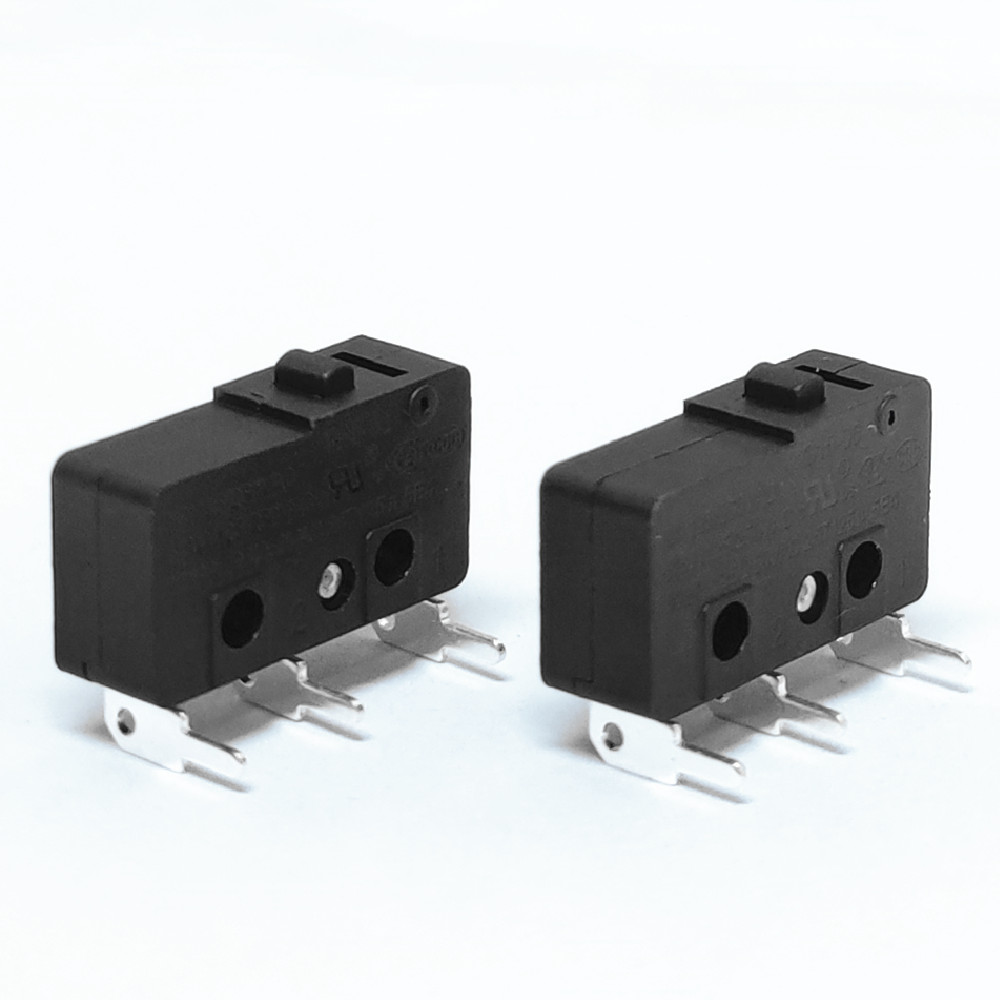

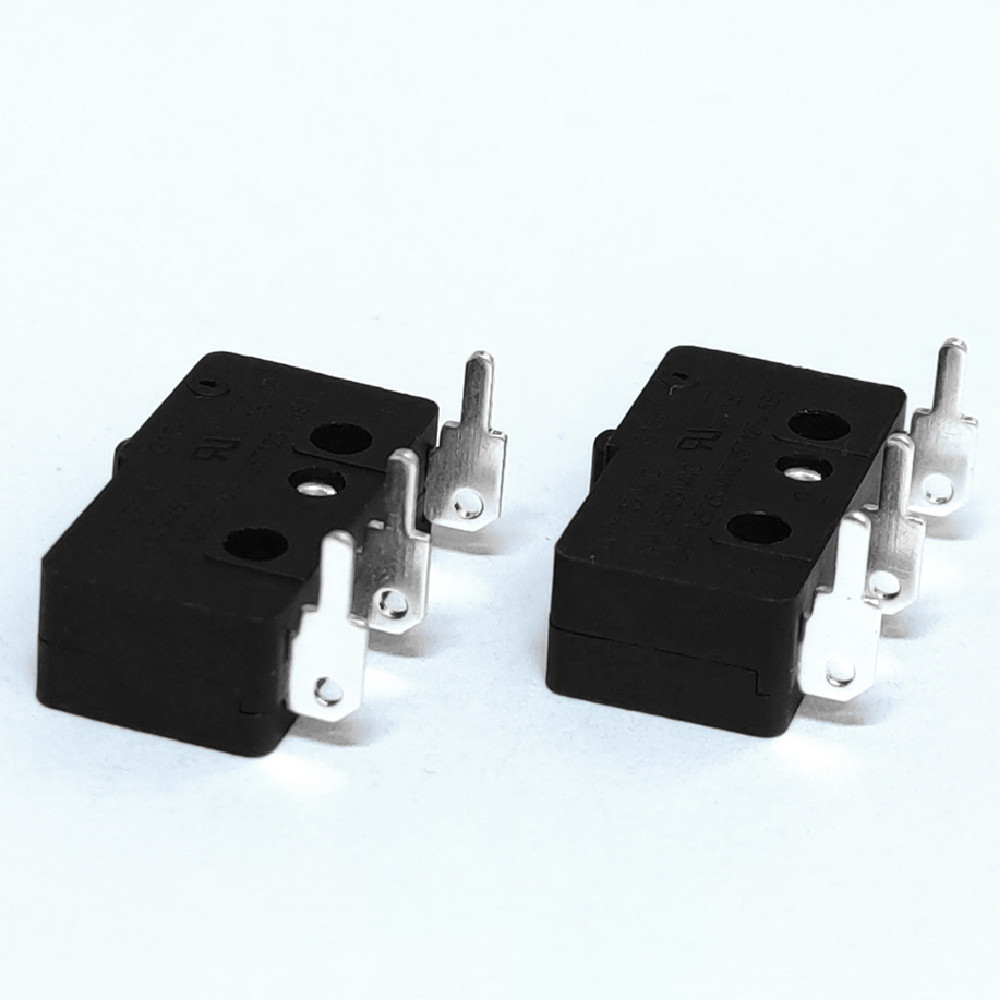

The G15-06DM-150-1238 is a subminiature SPDT snap-action micro switch with a pin-plunger actuator and right-angle terminals, rated 6 A at 125 / 250 V AC. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- SPDT snap-action contacts (COM / NO / NC)
- Pin-plunger actuator with right-angle PCB terminals
- Rated 6 A at 125 / 250 V AC, UL and CQC certified
- Wide –40 °C to +85 °C range with 1000 VAC dielectric strength
- Mechanical life 100,000 cycles
Applications
SPECIFICATIONS
| Part Number | G15-06DM-150-1238 |
|---|---|
| Switch Type | Micro switch (snap-action) |
| Contact Form | SPDT (1 pole, COM / NO / NC) |
| Actuator | Pin plunger (round button) |
| Mounting / Terminal | Right-angle PCB solder terminal, 3-pin |
| Body Size | 19.8 × 6.6 × 10.0 mm |
| Rated Current / Voltage | 6 A at 125 / 250 V AC |
| Operating Force (OF) | 150 ±50 gf |
| Return Force (RF) | 40 gf (min) |
| Operating Position (OP) | 11.4 ±0.4 mm |
| Pretravel (PT) | 1.3 mm (max) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 1000 VAC, 1 min |
| Mechanical Life | 100,000 cycles |
| Electrical Life | 10,000 cycles (6 A 250 V AC) |
| Operating Temperature | –40 °C to +85 °C |
| Approvals | UL recognized, CQC certified |
| Housing Material | PBT (30% glass-filled) |
| Contact Material | Silver alloy / beryllium bronze |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
The G15-06DM is a 6 A snap-action switch for load switching and position sensing in home appliances and industrial control equipment. Its UL-rated right-angle format also suits automotive and office equipment.

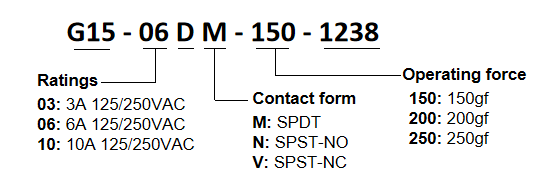

PART NUMBER KEY

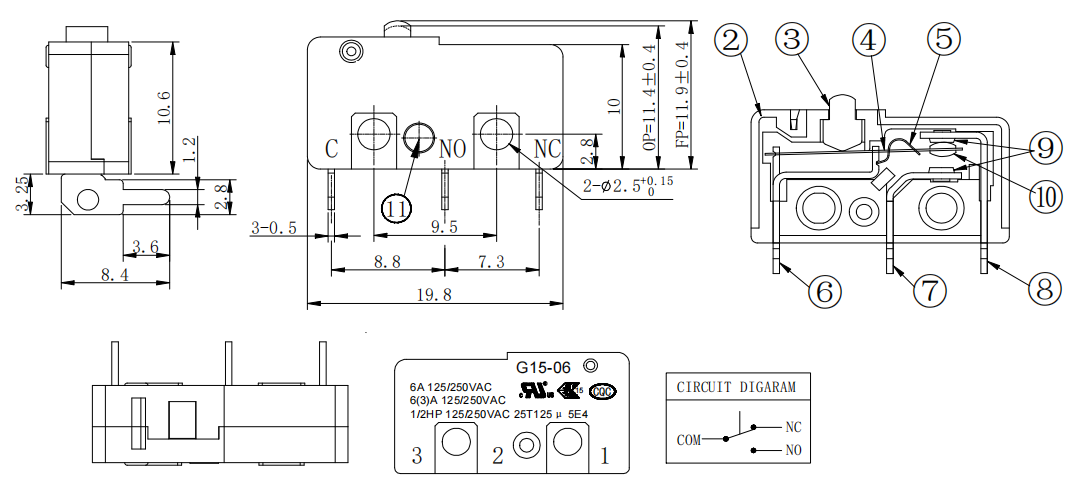

MECHANICAL DRAWING
Units: mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Cover |
PBT 30%GF |
1 |
Black |
2 |
Base |
PBT 30%GF |
1 |
Black |
3 |
Button |
PBT 30%GF |
1 |
Black |
4 |
Blade |
Beryllium bronze |
1 |
|
5 |
Blade |
Beryllium bronze |
1 |
|
6 |
Terminal |
Brass |
1 |
D.Ag |
7 |
NC Terminal |
Brass |
1 |
D.Ag |
8 |
NO Terminal |
Brass |
1 |
D.Ag |
9 |
Contact |
Silver alloy |
2 |
|
10 |
Contact |
Silver alloy |
1 |
|
11 |
Rivet |
AL |
1 |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
