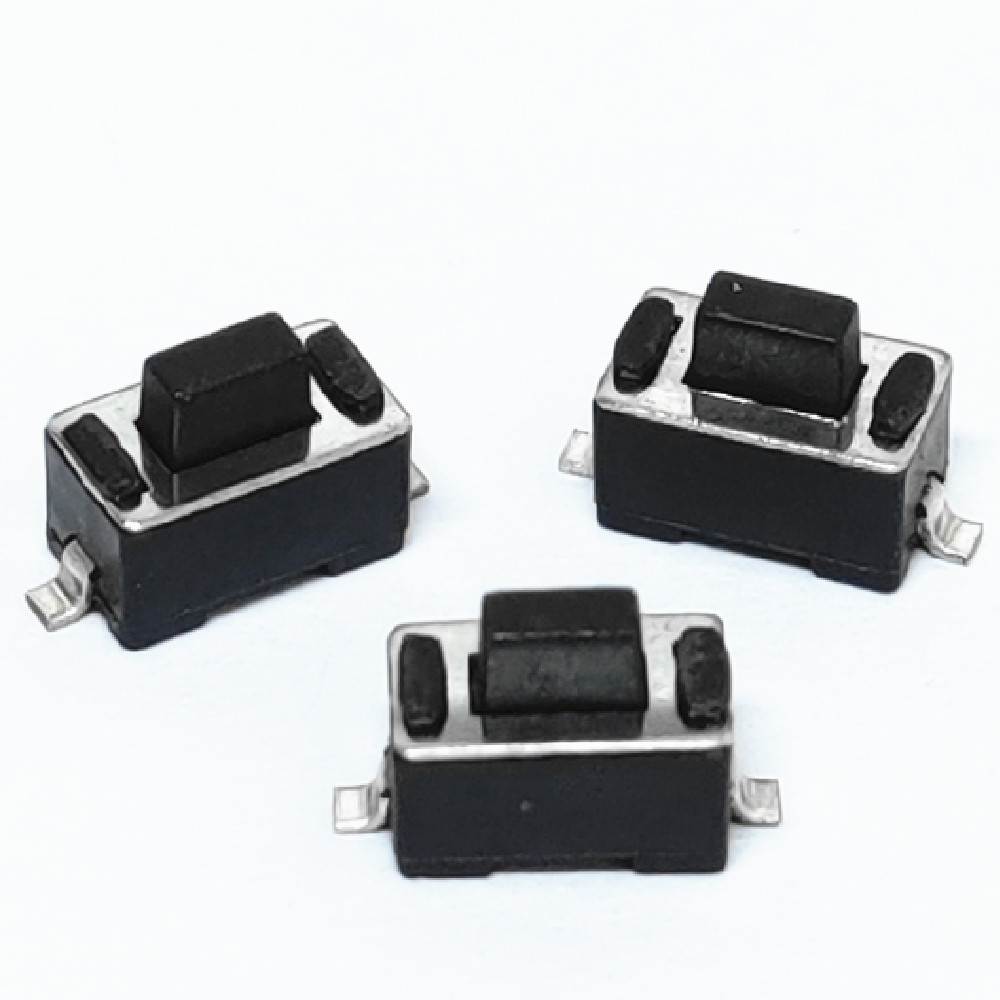

2 Pin Black 3x6mm Micro Tact Switch
Part Number: KAN3544B-0501B1
The KAN3544B-0501B1 is a 6 × 3.5 × 5 mm surface-mount top-actuated tact switch with a 2-pin layout. It surface-mounts to a PCB, gives a light press at 160 gf, and is rated for 50,000 operating cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- Top-actuated press with a compact 3 × 6 mm footprint
- 2-pin surface-mount layout for simple routing
- Light 160 ± 50 gf press with a 0.25 mm travel
- PPA body with a brass cover for a solid feel
- –30 °C to +80 °C operating range
Applications
SPECIFICATIONS
| Part Number | KAN3544B-0501B1 |
|---|---|
| Switch Type | Tactile switch (momentary) |
| Circuit | 1 pole 1 throw (SPST-NO) |
| Mounting Style | Surface-mount (SMD), 2-pin |
| Body Size | 6.0 × 3.5 × 5.0 mm |
| Operating Force | 160 ± 50 gf |
| Travel | 0.25 ± 0.1 mm |
| Return Force | 20 gf min |
| Stop Strength | 30 N |
| Stem Strength | 20 N min |
| Electrical Rating | DC 12 V, 50 mA (max); DC 1 V, 10 μA (min) |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ at DC 100 V |
| Dielectric Strength | 250 VAC, 1 min |
| Bounce | ≤10 ms |
| Electrical Life | 50,000 cycles |
| Operating Temperature | –30 °C to +80 °C |
| Storage Temperature | –40 °C to +90 °C |
| Housing Material | PPA |
| Contact Material | SUS, silver-plated |
| Terminal Material | Brass, silver-plated |
| Stem | PPA |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Tape & reel |
Typical Applications
This 2-pin top-actuated tact switch fits simple routing in compact devices: consumer electronics, mobile devices, remote controls, and toys. The 3 × 6 mm body and light press suit keypads and simple on-board buttons.

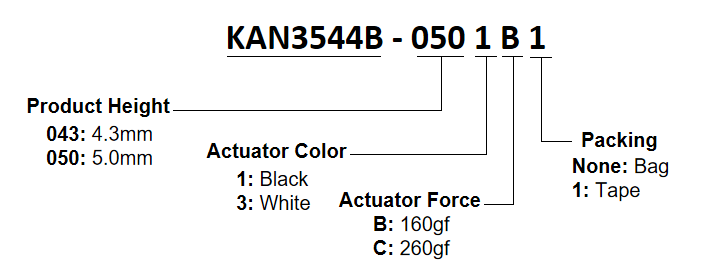

PART NUMBER KEY

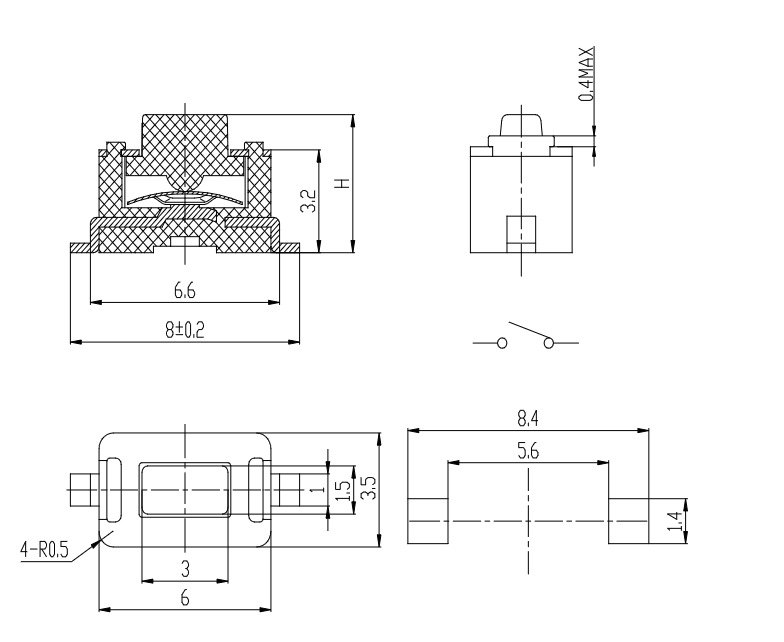

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Terminal |
Brass |
1 |
Silver plating |
2 |
Case |
PPA |
1 |
Black |
3 |
Contact |
SUS |
1 |
Ag plating |
4 |
Cover |
Brass |
1 |
Sn plating |
5 |
Stem |
PPA |
1 |
Black |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
| Height (mm) |
5 |
| Length (mm) |
6 |
| Width (mm) |
3.5 |
