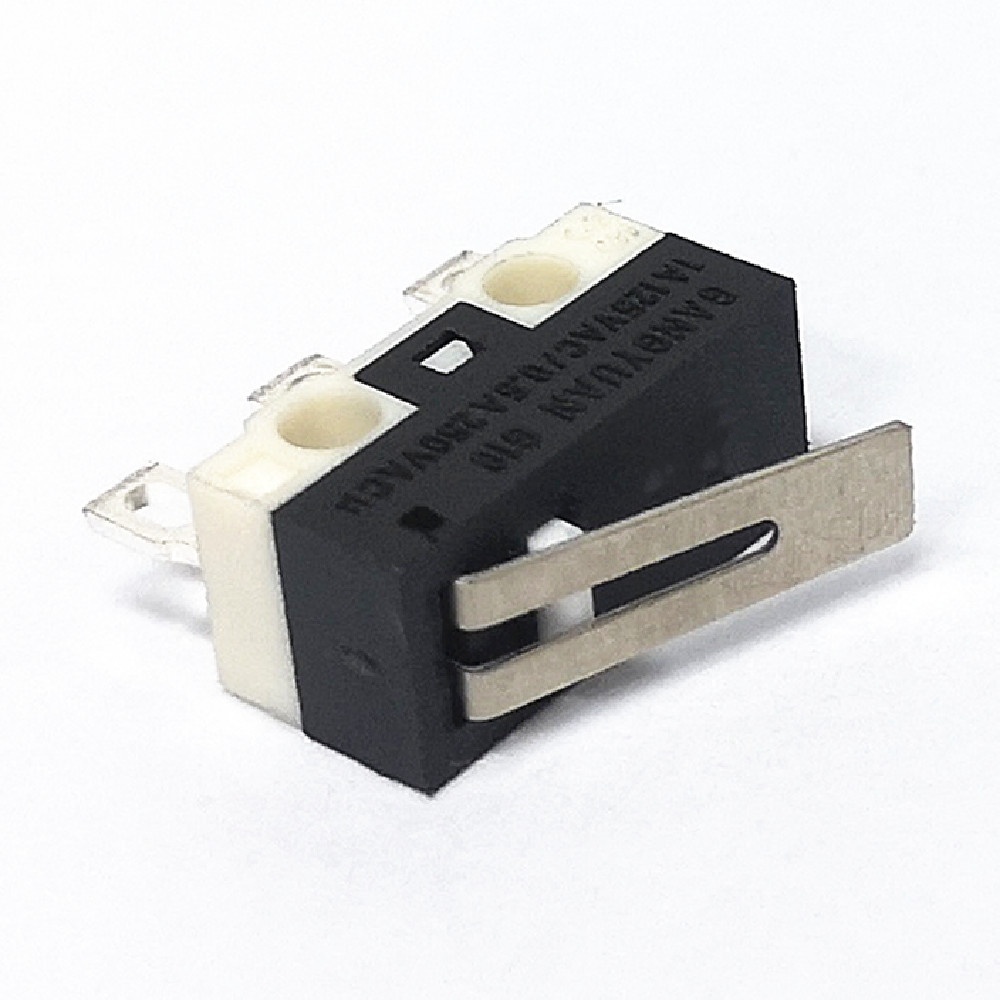

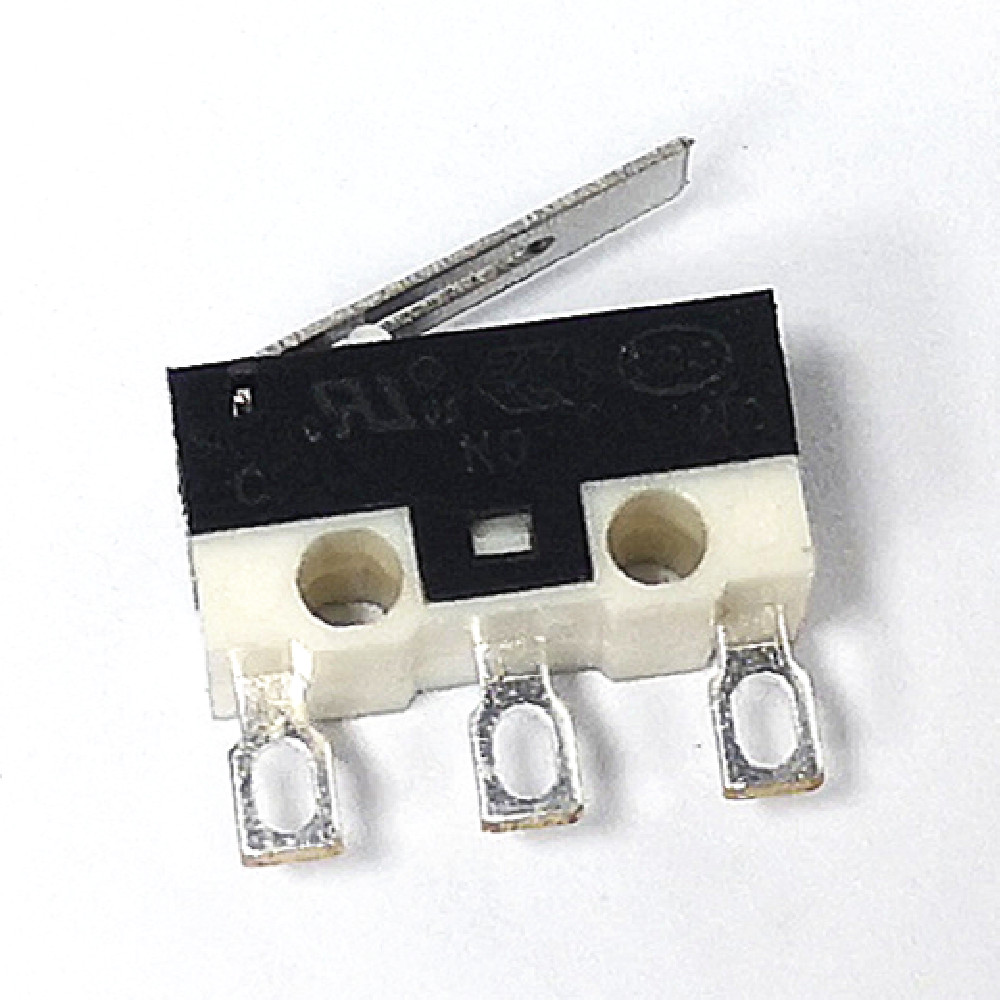

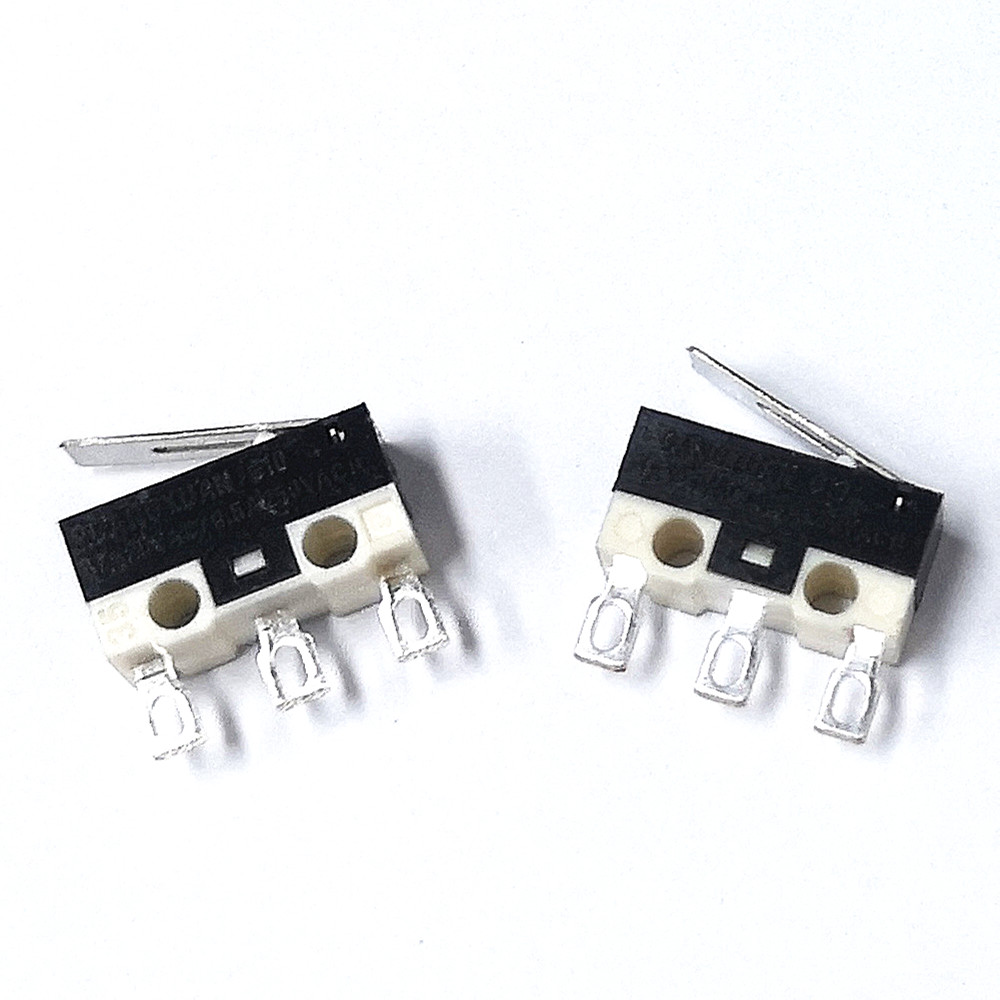

1a Straight Lever Micro Mouse Switch
Part Number: G10-1-03NM-60-1109
The G10-1-03NM-60-1109 is a subminiature SPDT snap-action micro switch with a straight lever actuator, rated 1 A at 125 V AC. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- SPDT snap-action contacts (COM / NO / NC)
- Straight lever actuator on a 12.8 × 5.8 × 6.6 mm body
- Rated 1 A at 125 V AC, 0.5 A at 250 V AC
- UL recognized and CQC certified
- Mechanical life 100,000 cycles, light ≤60 gf operating force
Applications
SPECIFICATIONS
| Part Number | G10-1-03NM-60-1109 |
|---|---|
| Switch Type | Micro switch (snap-action) |
| Contact Form | SPDT (1 pole, COM / NO / NC) |
| Actuator | Straight lever (stainless steel) |
| Mounting / Terminal | PCB solder pin, 5.08 mm pitch |
| Body Size | 12.8 × 5.8 × 6.6 mm |
| Rated Current / Voltage | 1 A at 125 V AC; 0.5 A at 250 V AC |
| Operating Force (OF) | ≤60 gf |
| Return Force (RF) | 10 gf (min) |
| Operating Position (OP) | 8.6 ±0.8 mm |
| Pretravel (PT) | 3.0 mm (max) |
| Contact Resistance | ≤200 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 500 VAC, 1 min |
| Mechanical Life | 100,000 cycles |
| Electrical Life | 10,000 cycles (1 A 125 V AC) |
| Operating Temperature | –25 °C to +85 °C |
| Approvals | UL recognized, CQC certified |
| Housing Material | PBT (30% glass-filled) |
| Contact Material | Silver alloy / beryllium bronze |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
The G10-1-03NM is a straight-lever snap-action switch for position and limit sensing in consumer electronics such as gaming mice, and in industrial control equipment. The compact SPDT format also suits home appliances and automotive interior controls.

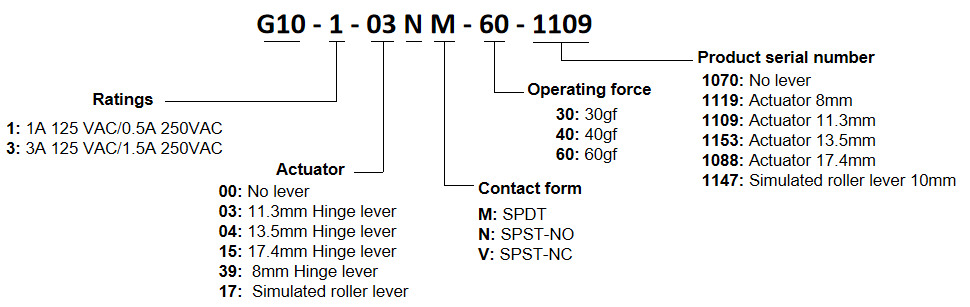

PART NUMBER KEY

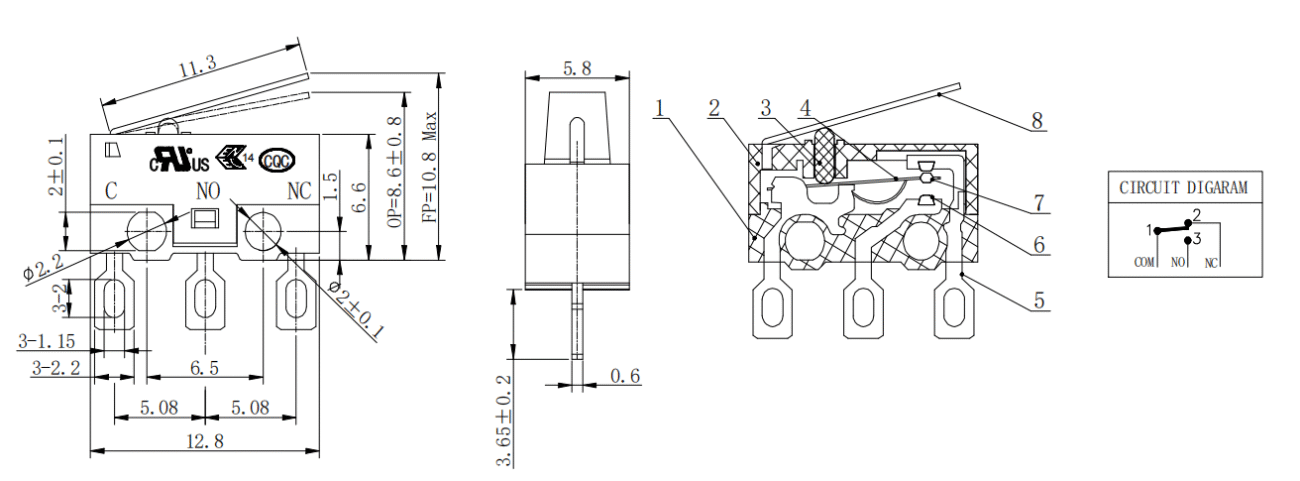

MECHANICAL DRAWING
Units: mm
Tolerance: ±0.2mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Base |
PBT 30%GF |
1 |
White |
2 |
Upper cover |
PBT 30%GF |
1 |
Black |
3 |
Button |
PBT 30%GF |
1 |
White |
4 |
Contact |
Beryllium bronze |
1 |
|
5 |
Connecting terminal |
Brass |
1 |
D.Ag |
6 |
Terminal silver point |
Silver alloy |
2 |
D.Ag |
7 |
Shrapnel Silver Point |
Silver alloy |
1 |
|
8 |
Press handle |
SUS |
1 |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
