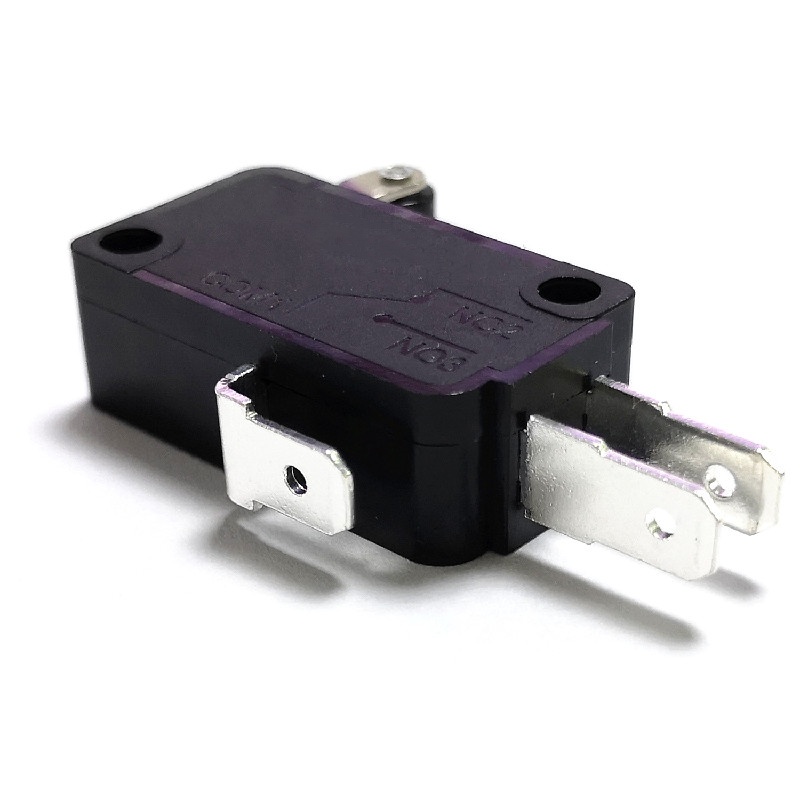

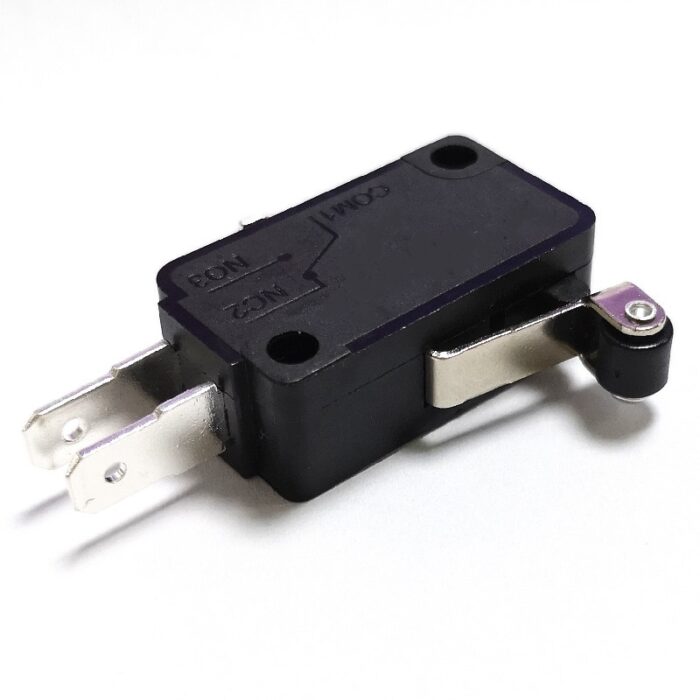

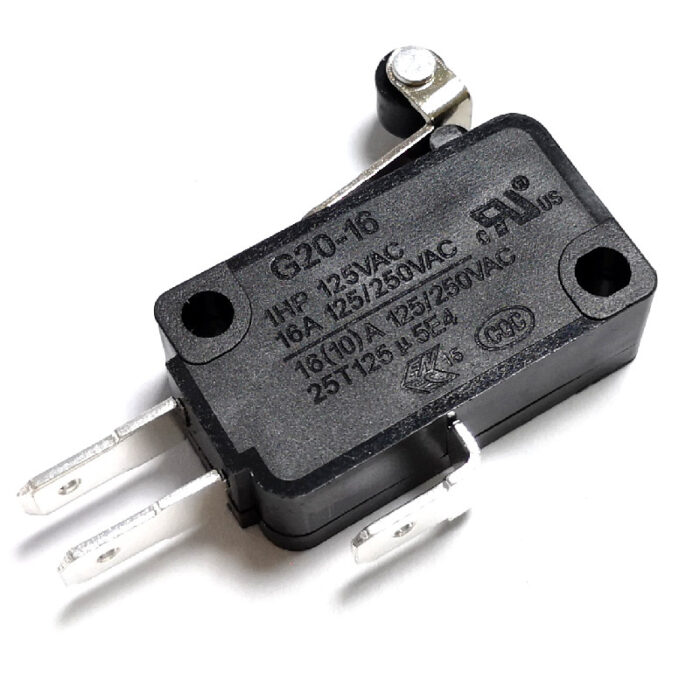

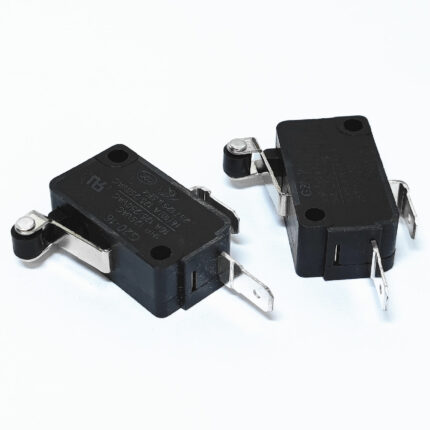

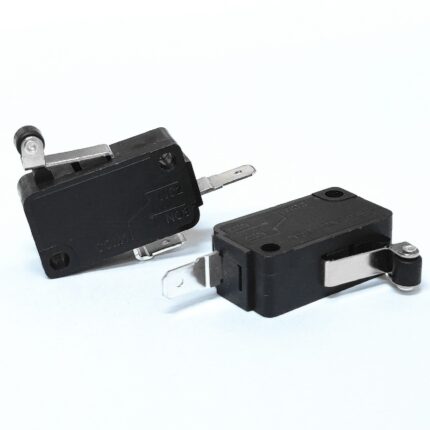

16A 125 250vac Short Roller Lever Micro Switch
Part Number: G20-16DM06-150-1170
The G20-16DM06-150-1170 is a 16 A SPDT snap-action basic switch with a short roller lever and chassis mounting for cam and moving-part sensing. It carries a 16 A resistive / 10 A inductive rating at 125 / 250 V AC and a 1 HP motor rating, and is rated for 1,000,000 mechanical cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- 16 A resistive / 10 A inductive at 125 / 250 V AC, also rated 1 HP for motor loads
- SPDT (COM / NO / NC) snap-action contacts, silver alloy, ≤200 mΩ contact resistance
- Short roller lever with a 150 ± 50 gf operating force and 23.5 mm operating position
- High 1,000,000-cycle mechanical life and 1500 V dielectric strength
- UL Recognized component (cURus) and CQC certified, –25 °C to +125 °C range
Applications
SPECIFICATIONS
| Part Number | G20-16DM06-150-1170 |
|---|---|
| Switch Type | Micro switch (snap-action basic switch) |
| Contact Form | SPDT (1 pole, COM / NO / NC) |
| Actuator | Short roller lever (stainless-steel arm) |
| Mounting / Terminal | Chassis mount (2 mounting holes), 3 terminals |
| Body Size | 29 × 10.1 × 15.9 mm (switch body; roller lever extends beyond) |
| Rated Current / Voltage | 16 A resistive, 10 A inductive at 125 / 250 V AC; 1 HP |
| Operating Force (OF) | 150 ± 50 gf |
| Operating Position (OP) | 23.5 ± 0.8 mm |
| Pretravel (PT) | 1.0 mm (free position 24.5 mm) |
| Contact Resistance | ≤200 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 1500 VAC, 1 min |
| Mechanical Life | 1,000,000 cycles |
| Electrical Life | 10,000 cycles at 16 A 250 V AC |
| Operating Temperature | –25 °C to +125 °C |
| Approvals | UL Recognized component (cURus); CQC certified |
| Housing Material | PBT (30% glass-filled), black |
| Contact Material | Silver alloy |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
This 16 A short-roller-lever basic switch is built for cam and moving-part sensing in higher-load equipment: HVAC units, appliance mechanisms, industrial limit detection, and automation sequencing. The roller reduces friction where a moving part sweeps the lever, and the 1,000,000-cycle life supports frequent actuation.

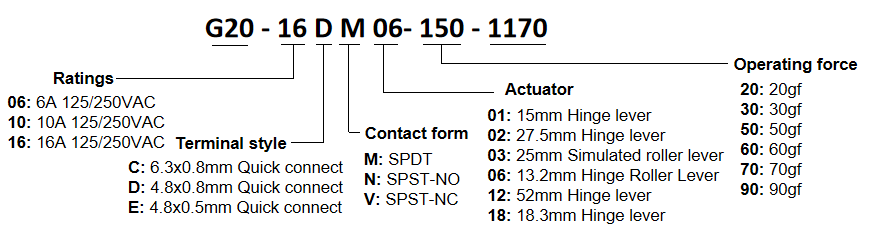

PART NUMBER KEY

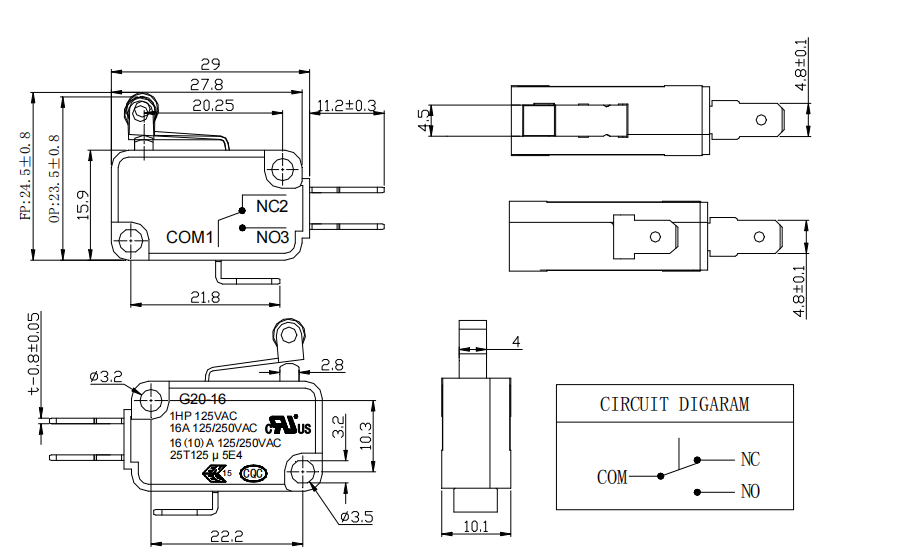

MECHANICAL DRAWING
Units: mm
Unless otherwise specified
|

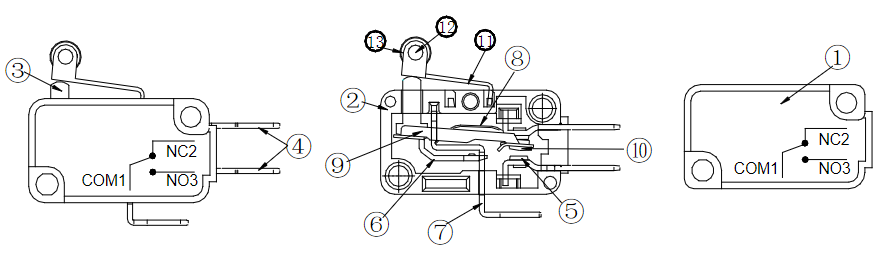

NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Cover |
PBT 30%GF |
1 |
Black |
2 |
Base |
PBT 30%GF |
1 |
Black |
3 |
Button |
PBT 30%GF |
1 |
Black |
4 |
Terminal |
Brass |
2 |
D.Ag |
5 |
Contact |
Silver alloy |
2 |
|
6 |
Driver Plate |
Brass |
1 |
D.Ag |
7 |
Terminal |
Brass |
1 |
D.Ag |
8 |
Contact |
Beryllium bronze |
1 |
|
9 |
Blade |
Brass |
1 |
D.Ag |
10 |
Blade |
Silver alloy |
1 |
|
11 |
Press handle |
SUS |
1 |
|
12 |
Fixed pin |
Brass |
1 |
D.Ni |
13 |
Roller |
PBT |
1 |
Black |
