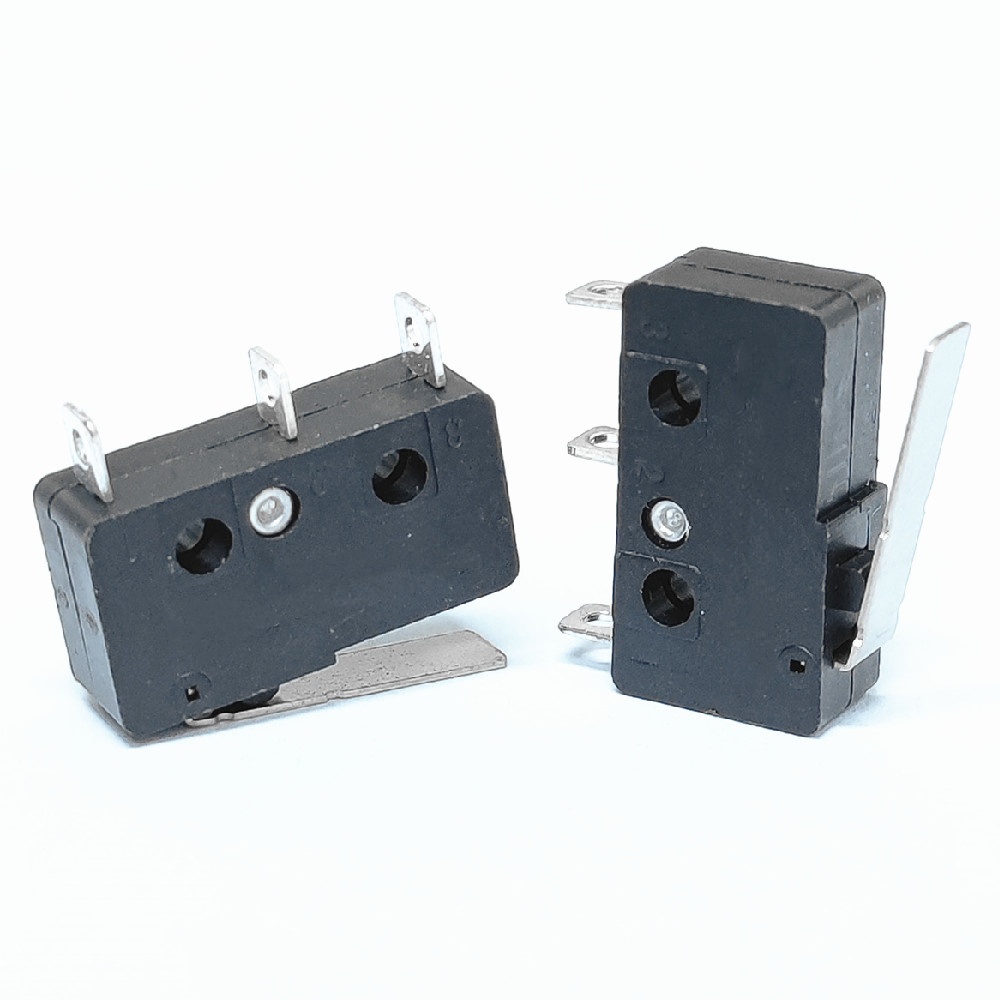

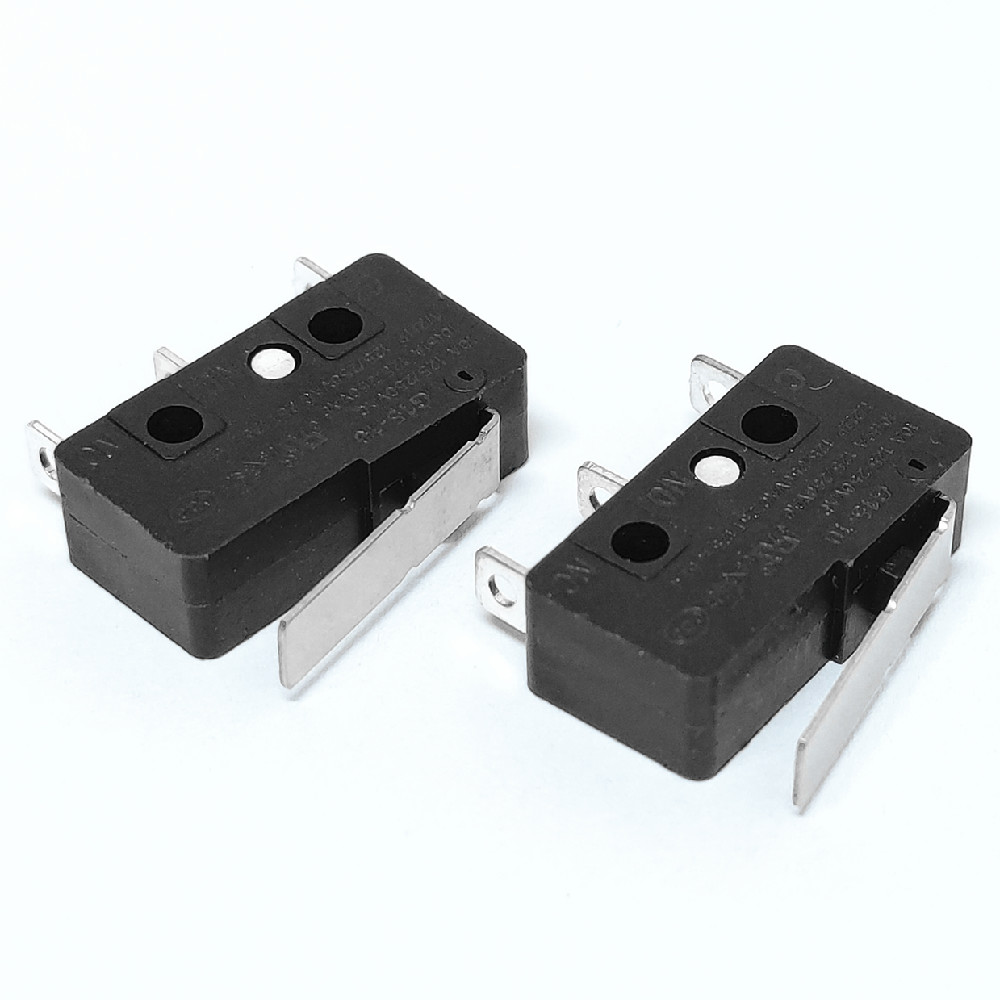

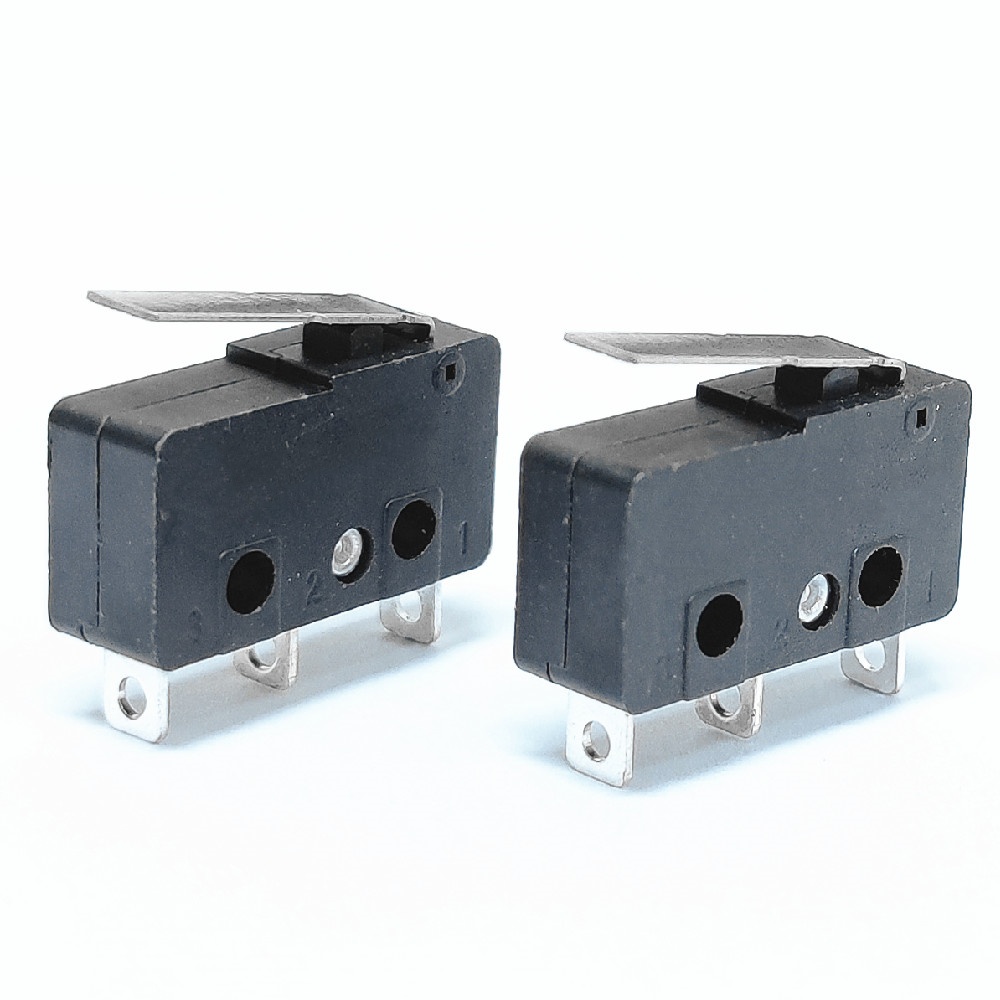

10A SolderTerminal Micro Switch for Blender
Part Number: G15-10SM01-40-18
The G15-10SM01-40-18 is a 10 A SPDT snap-action micro switch with a straight leaf-spring lever and PCB solder terminals, suited to appliance switching such as blender controls. It carries a 10 A resistive / 5 A inductive rating at 125 / 250 V AC, snaps at a 40 gf operating force, and is rated for 100,000 mechanical cycles. ISO 9001 and IATF 16949 certified, RoHS compliant, and shipped factory-direct from our Shenzhen, Wenzhou and Hubei plants.
Key Features
- 10 A resistive / 5 A inductive at 125 / 250 V AC, also marked 1/2 HP for motor loads
- SPDT (COM / NO / NC) snap-action contacts, silver alloy, ≤100 mΩ contact resistance
- Straight leaf-spring lever actuator over a stainless-steel press arm
- 40 ± 20 gf operating force, 12 mm operating position, 3.6 mm pretravel
- 100,000-cycle mechanical life, –25 °C to +85 °C operating range
Applications
SPECIFICATIONS
| Part Number | G15-10SM01-40-18 |
|---|---|
| Switch Type | Micro switch (snap-action) |
| Contact Form | SPDT (1 pole, COM / NO / NC) |
| Actuator | Straight leaf-spring lever (stainless steel) |
| Mounting / Terminal | PCB solder terminals, 3 pin |
| Body Size | 19.8 × 6.6 × 10 mm |
| Rated Current / Voltage | 10 A resistive, 5 A inductive at 125 / 250 V AC; 1/2 HP |
| Operating Force (OF) | 40 ± 20 gf |
| Return Force (RF) | 10 gf min |
| Operating Position (OP) | 12 ± 0.8 mm |
| Pretravel (PT) | 3.6 mm max |
| Contact Resistance | ≤100 mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 1000 VAC, 1 min |
| Mechanical Life | 100,000 cycles |
| Electrical Life | 10,000 cycles at 10 A 250 V AC |
| Operating Temperature | –25 °C to +85 °C |
| Approvals | CQC certified |
| Housing Material | PBT (30% glass-filled), black |
| Contact Material | Silver alloy |
| Terminal Material | Brass, silver-plated |
| RoHS | Compliant |
| Compliance | ISO 9001 & IATF 16949 certified facility |
| Packaging | Bag |
Typical Applications
This lever-actuated micro switch suits appliance and light-machinery switching where a moving part presses the lever: blender and food-processor controls, small-appliance interlocks, automotive accessory modules, and industrial control boards. The 10 A resistive rating covers common line-powered switching loads.

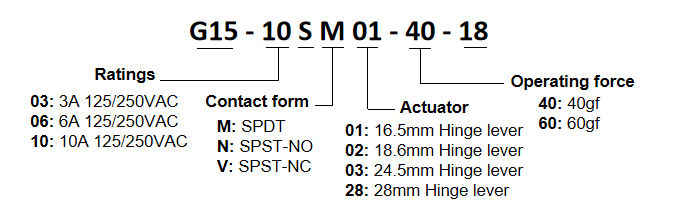

PART NUMBER KEY

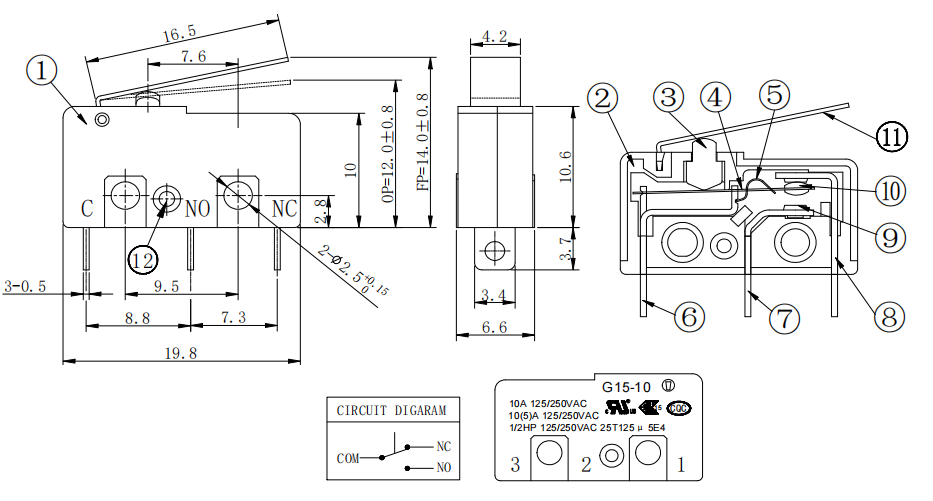

MECHANICAL DRAWING
Units: mm
Unless otherwise specified
|
NO. |
NAME |
MATERIAL |
QTY. |
FINISHING |
|---|---|---|---|---|
1 |
Cover |
PBT 30%GF |
1 |
Black |
2 |
Base |
PBT 30%GF |
1 |
Black |
3 |
Button |
PBT 30%GF |
1 |
Black |
4 |
Blade |
Beryllium bronze |
1 |
|
5 |
Blade |
Beryllium bronze |
1 |
|
6 |
Terminal |
Brass |
1 |
D.Ag |
7 |
NO Terminal |
Brass |
1 |
D.Ag |
8 |
NC Terminal |
Brass |
1 |
D.Ag |
9 |
Contact |
Silver alloy |
2 |
D.Ag |
10 |
Contact |
Silver alloy |
1 |
|
11 |
Press handle |
SUS |
1 |
|
12 |
Rivet |
AL |
1 |
| ILLumination |
No |
|---|---|
| IP Rating |
No IP Rating |
